Engine Immobiliser System: Notes

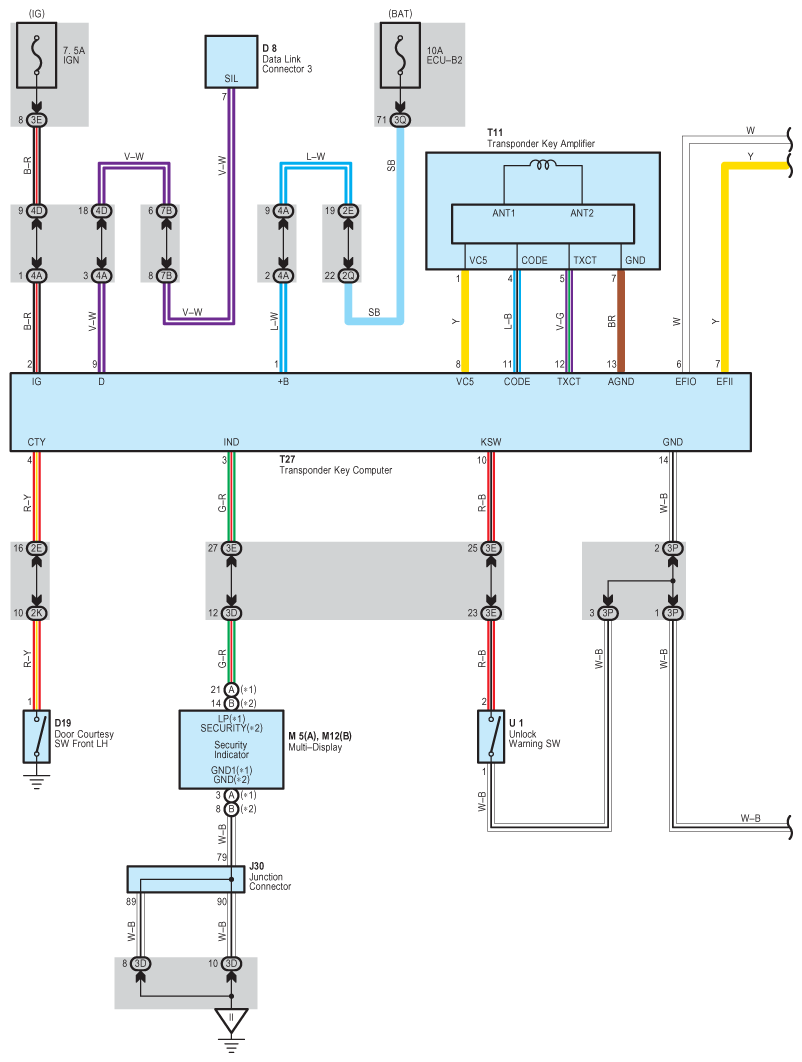

Fig 1: Engine Immobiliser System - Wiring Diagram (1 Of 2)
G08928083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

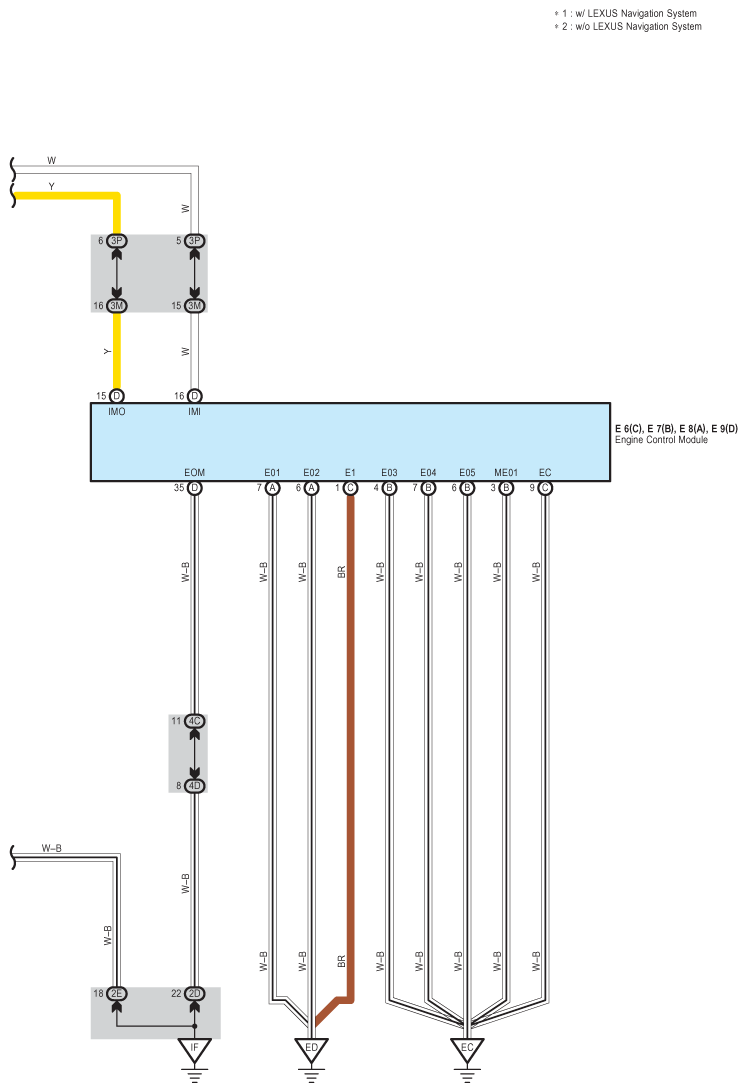

Fig 2: Engine Immobiliser System - Wiring Diagram (2 Of 2)
G08928084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
