Home >> Lexus >> 2006 >> LX 470 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Light Auto Turn Off System >> Notes

Light Auto Turn Off System: Notes

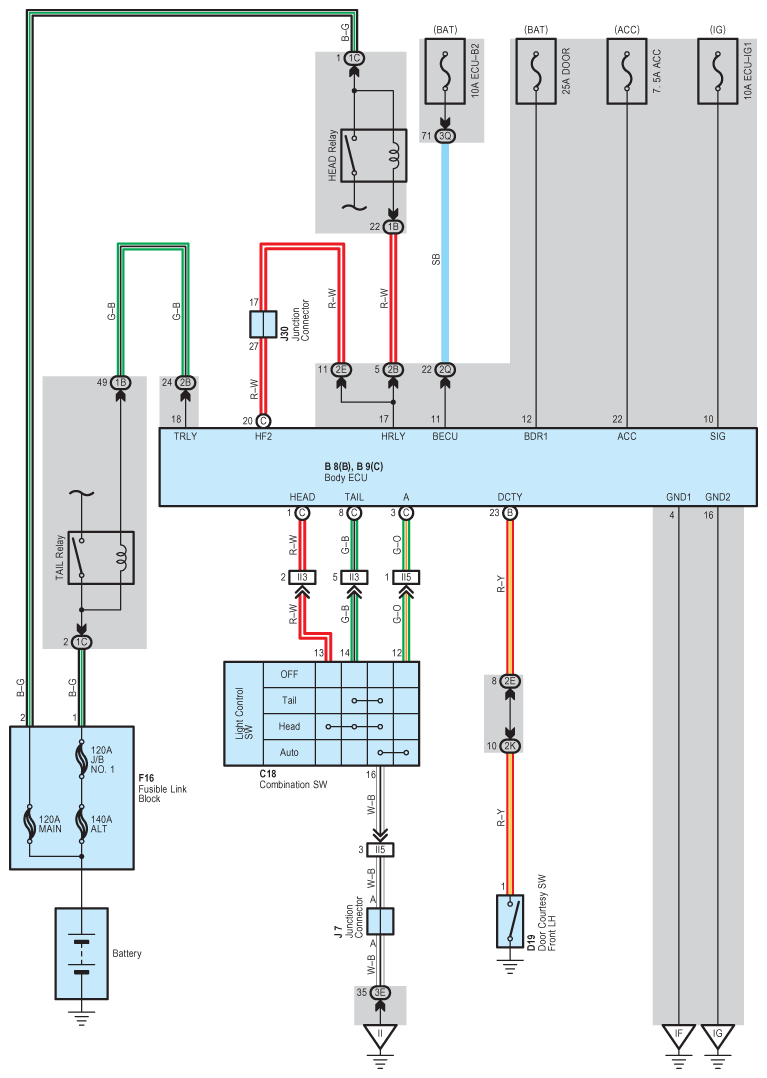

Fig 1: Light Auto Turn Off System - Circuit Diagram
G08928112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
