Home >> Lexus >> 2006 >> LX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Oil Pump >> Components

Oil Pump: Components

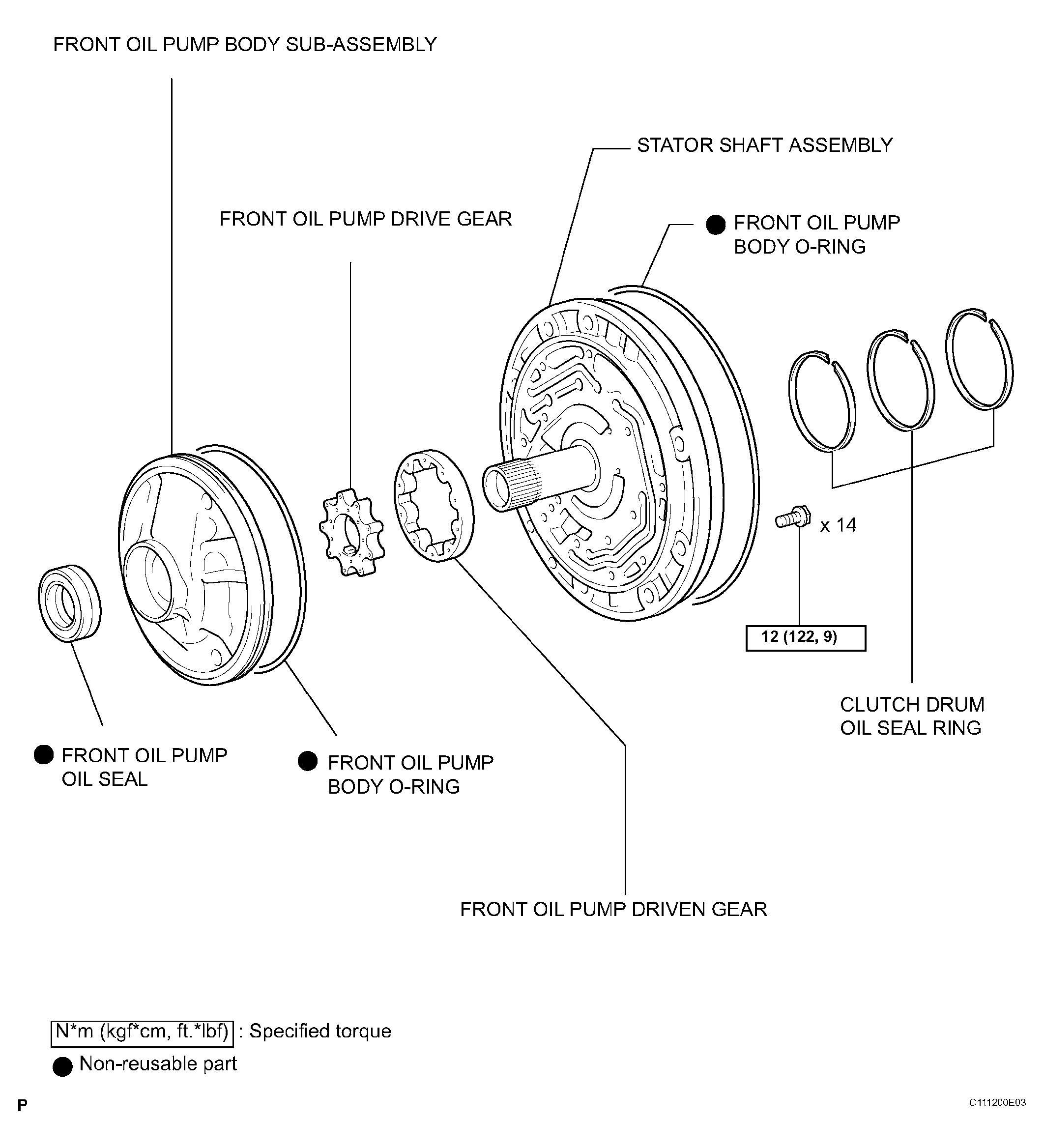

Fig 1: Oil Pump Replacement Components With Torque Specifications
G04062947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
