Home >> Lexus >> 2006 >> LX 470 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Speed Sensor >> Components

Speed Sensor: Components

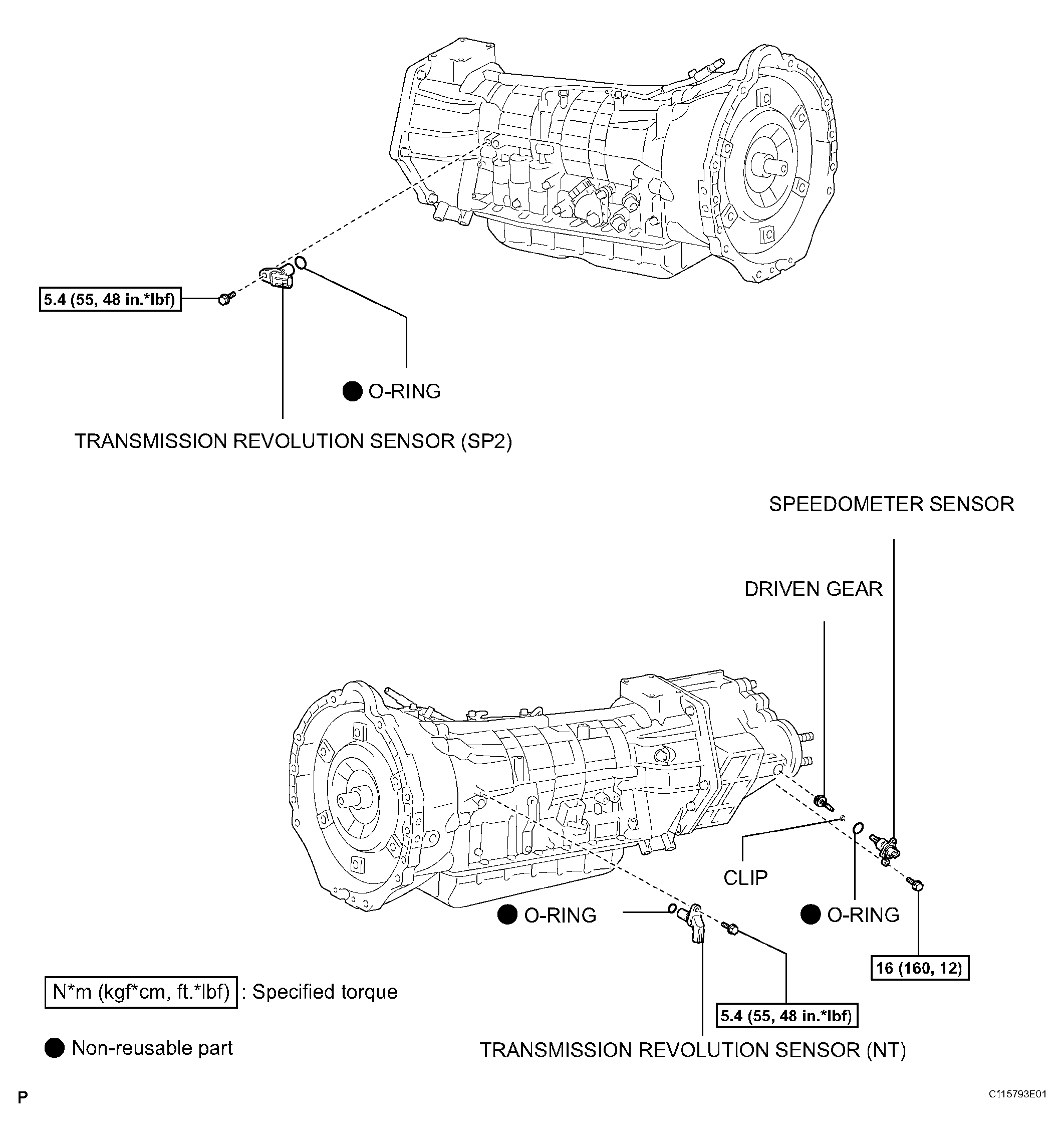

Fig 1: Speed Sensor Replacement Components With Torque Specifications

G04062646

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
