Home >> Lexus >> 2006 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Center Differential >> Components

Center Differential: Components

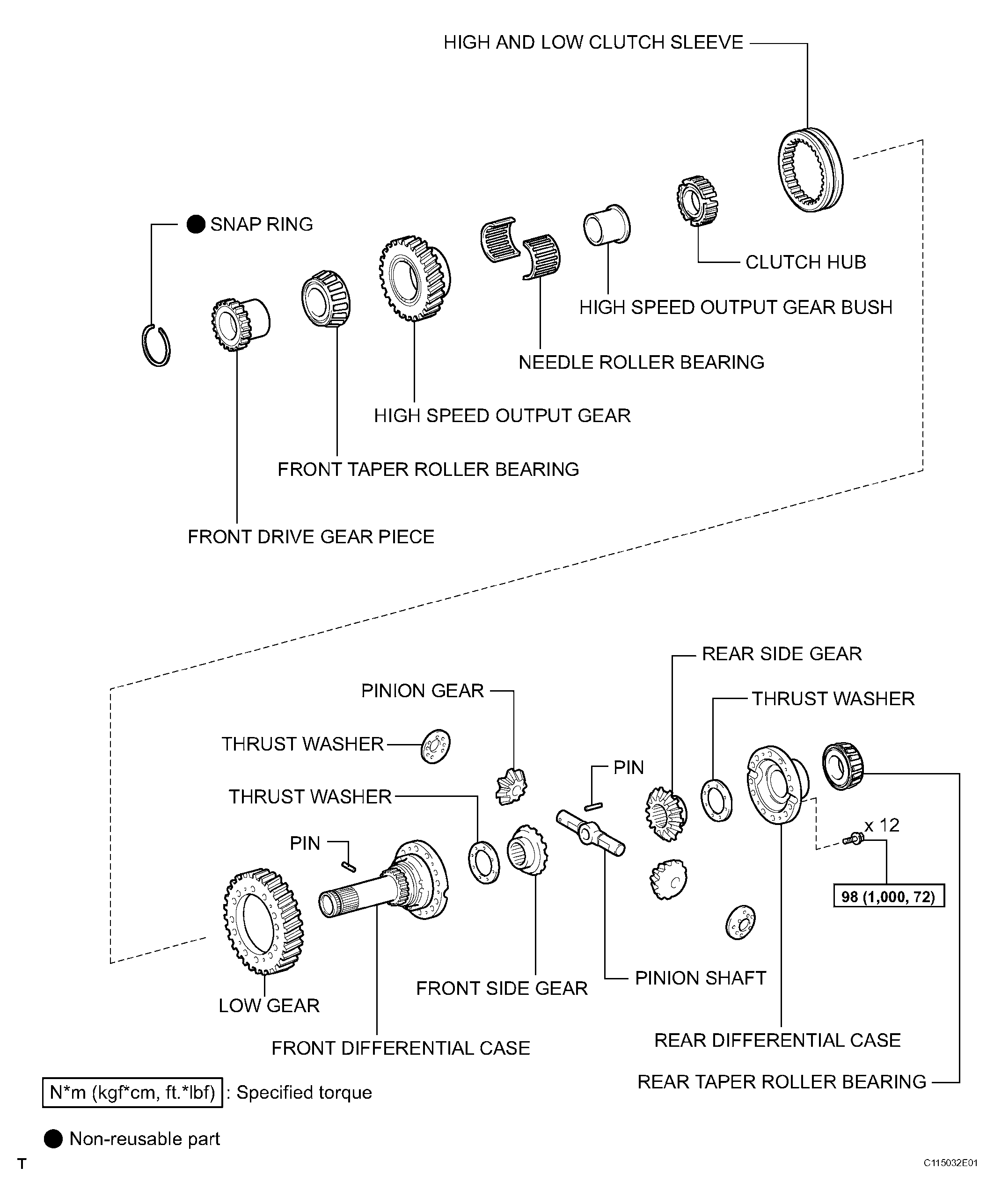

Fig 1: Center Differential Replacement Components With Torque Specifications
G04063162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
