Home >> Lexus >> 2006 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer Shift Lever Assembly >> Components

Transfer Shift Lever Assembly: Components

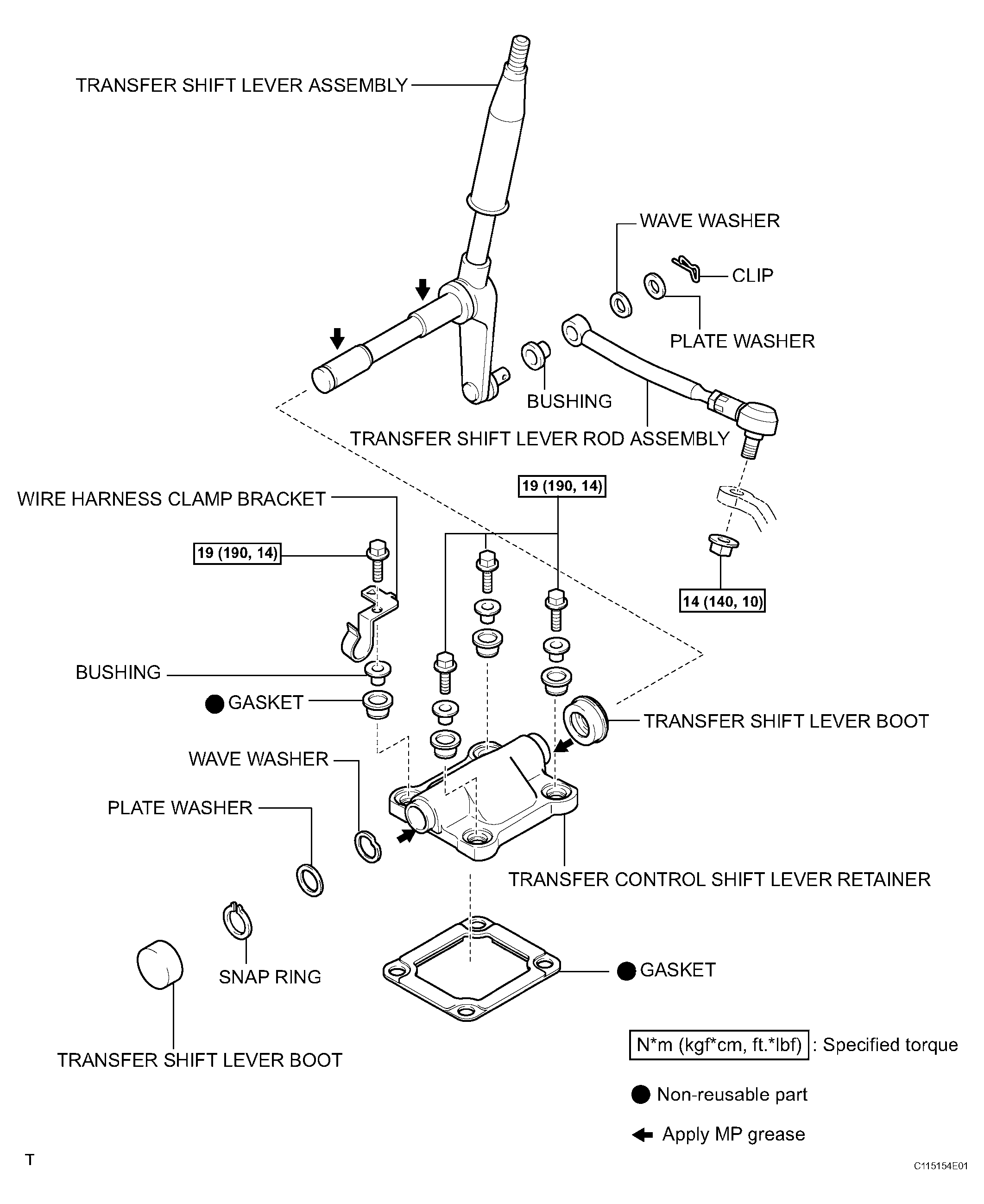

Fig 1: Transfer Shift Lever Assembly Replacement Components With Torque Specifications
G04063077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
