Transfer Unit: Components

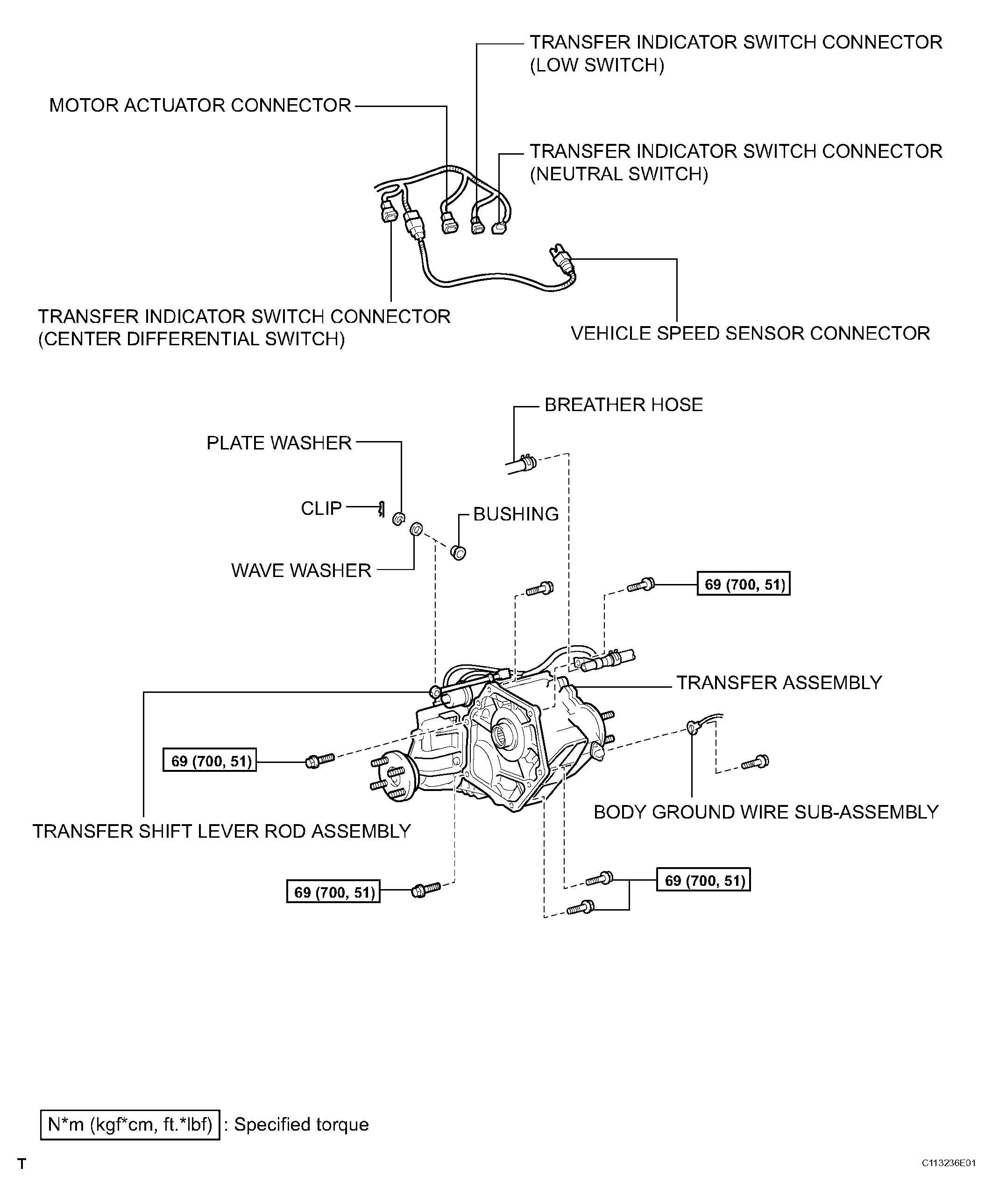

Fig 1: Transfer Unit Components With Torque Specifications (1 Of 2)
G04063132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transfer Unit Components With Torque Specifications (2 Of 2)
G04063133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
