Home >> Lexus >> 2006 >> RX 330 AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer >> Transfer Assembly >> Components

Transfer Assembly: Components

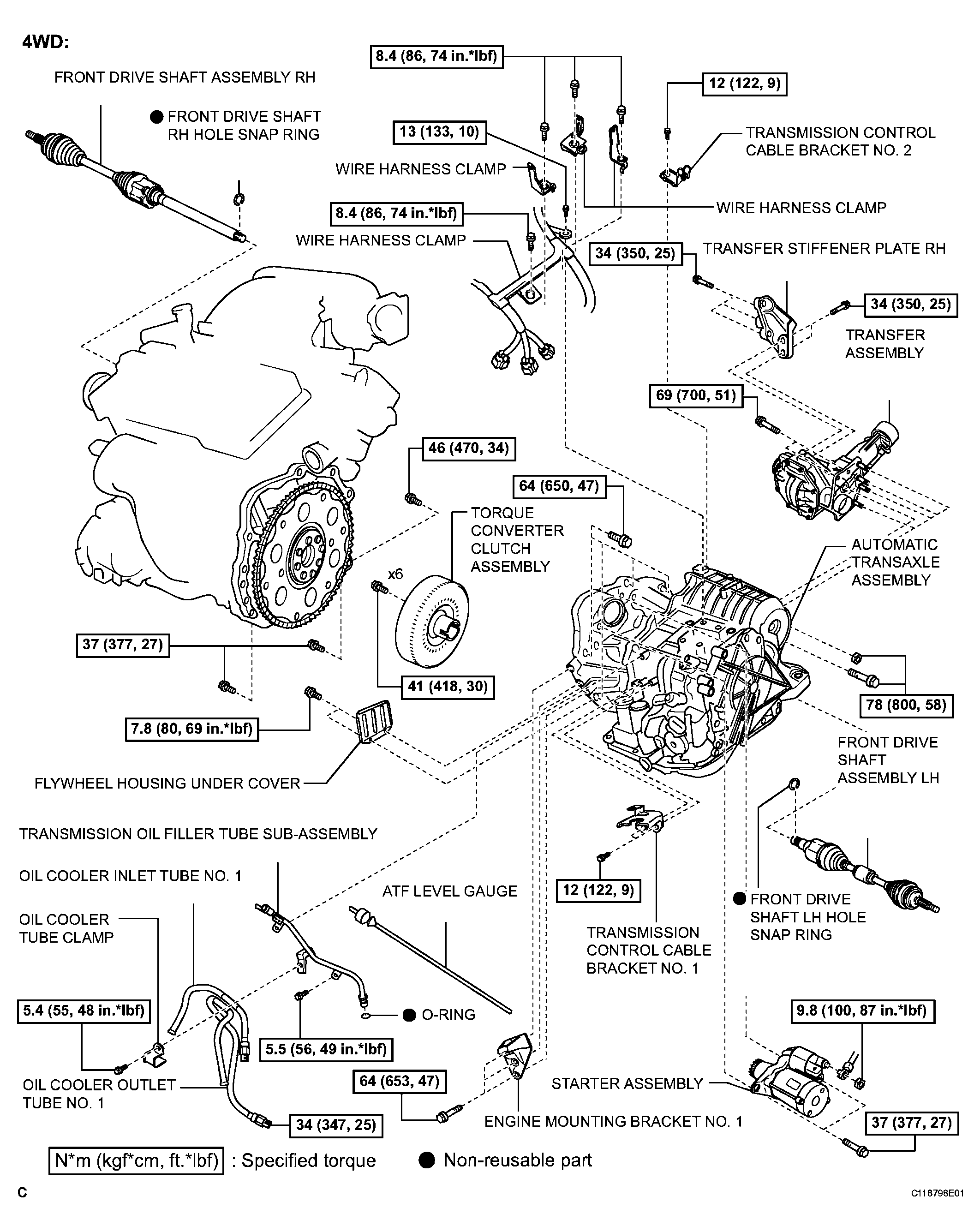

Fig 1: Transfer Assembly Replacement Components With Torque Specifications
G04089715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
