OEM System Circuits: Charging: Notes

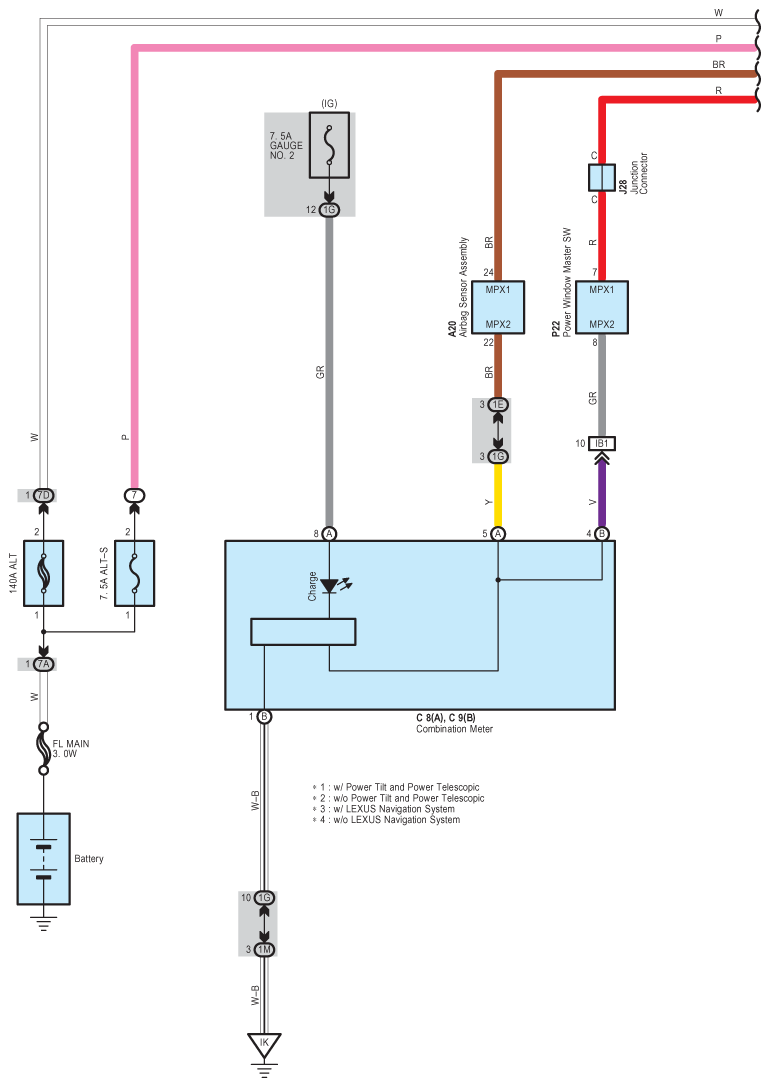

Fig 1: Charging - Wiring Diagram (1 Of 2)
G08928944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

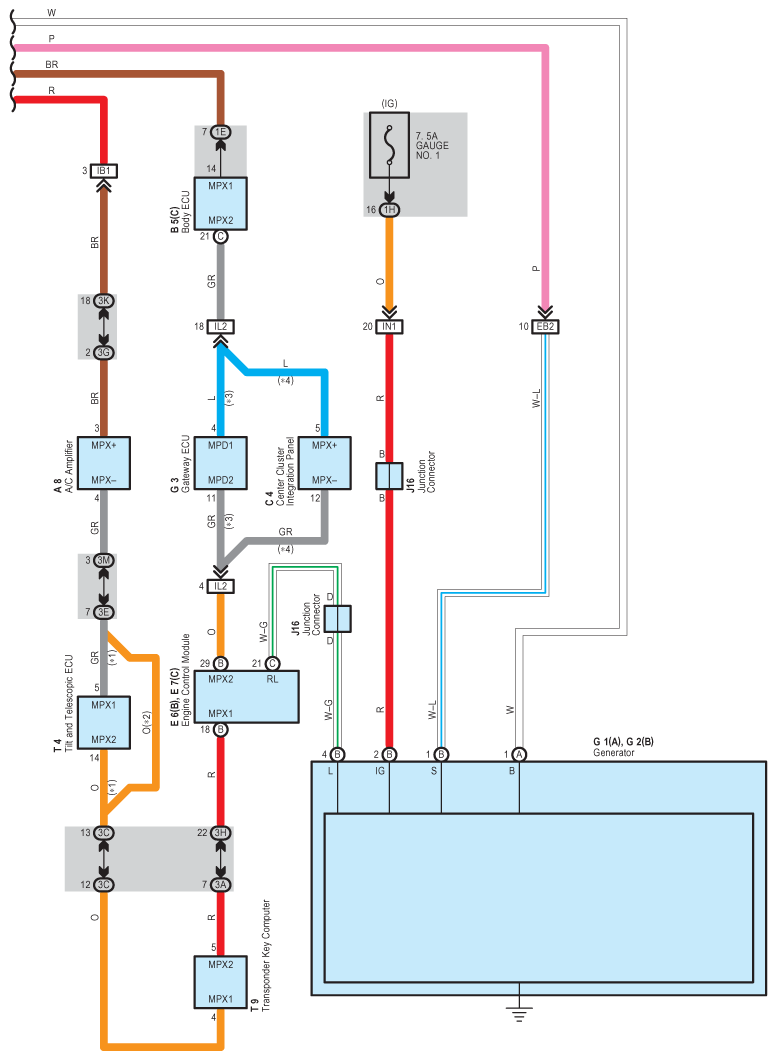

Fig 2: Charging - Wiring Diagram (2 Of 2)
G08928945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
