Home >> Lexus >> 2006 >> RX 330 FWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Cruise Control >> Notes

Cruise Control: Notes

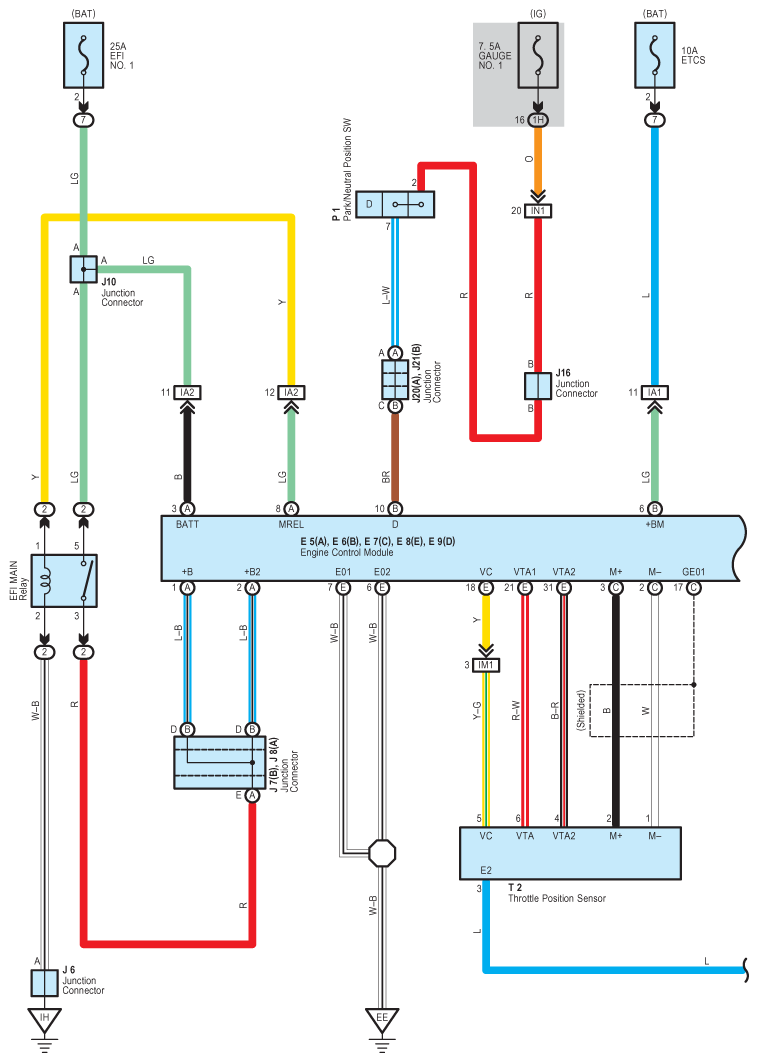

Fig 1: Cruise Control - Wiring Diagram (1 Of 4)
G08928994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

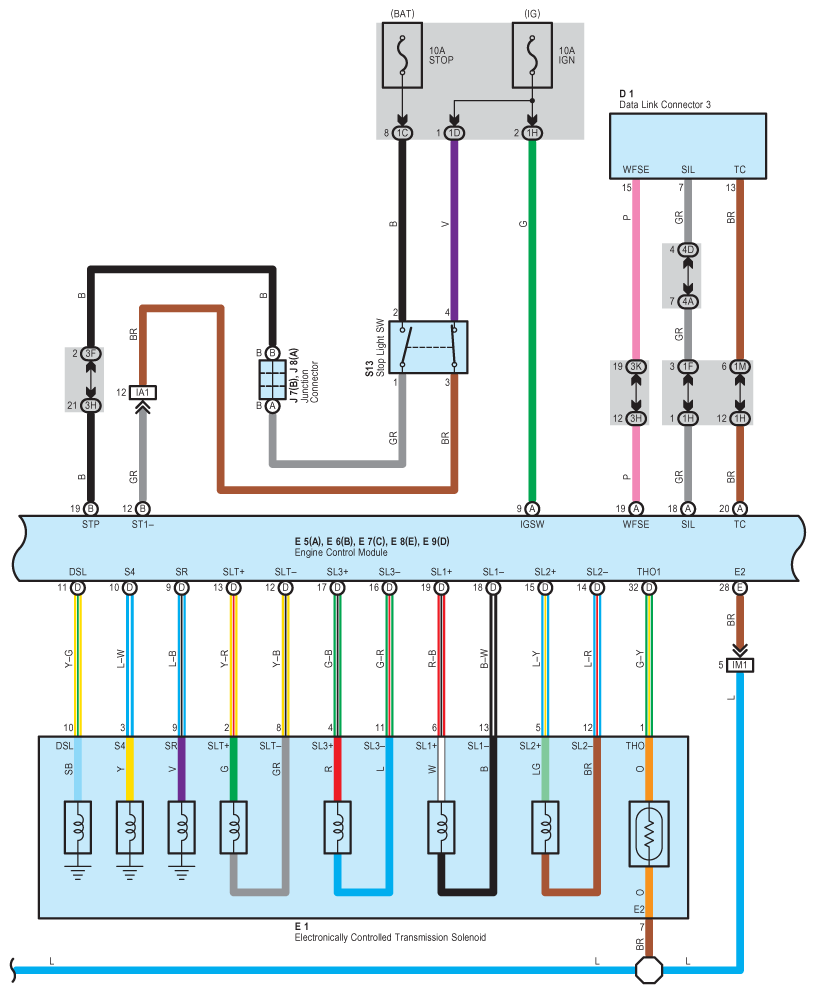

Fig 2: Cruise Control - Wiring Diagram (2 Of 4)
G08928995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

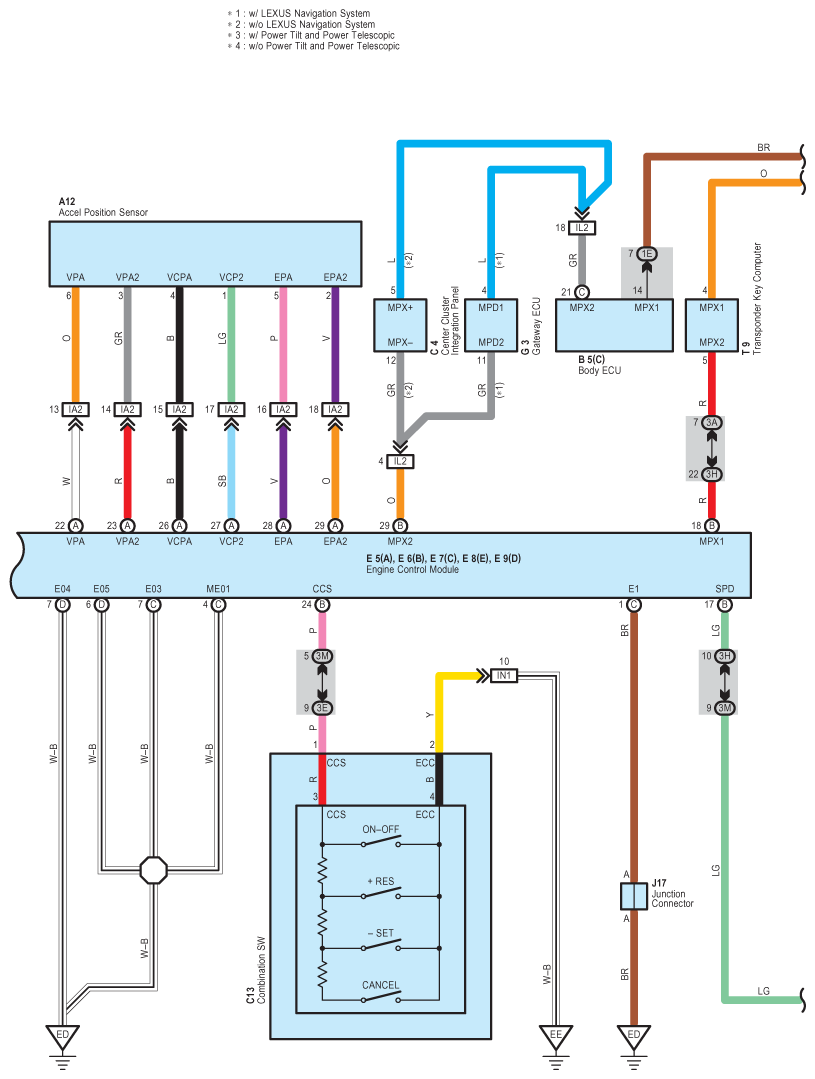

Fig 3: Cruise Control - Wiring Diagram (3 Of 4)
G08928996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

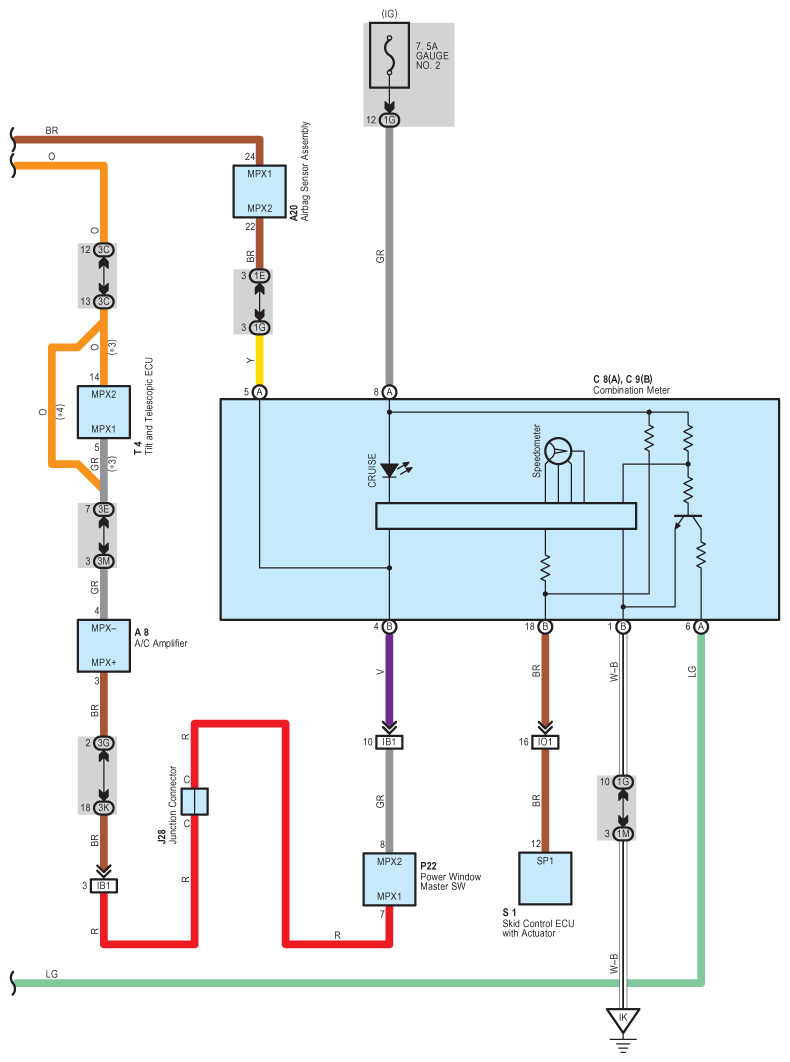

Fig 4: Cruise Control - Wiring Diagram (4 Of 4)
G08928997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
