Rear Window Defogger: Notes

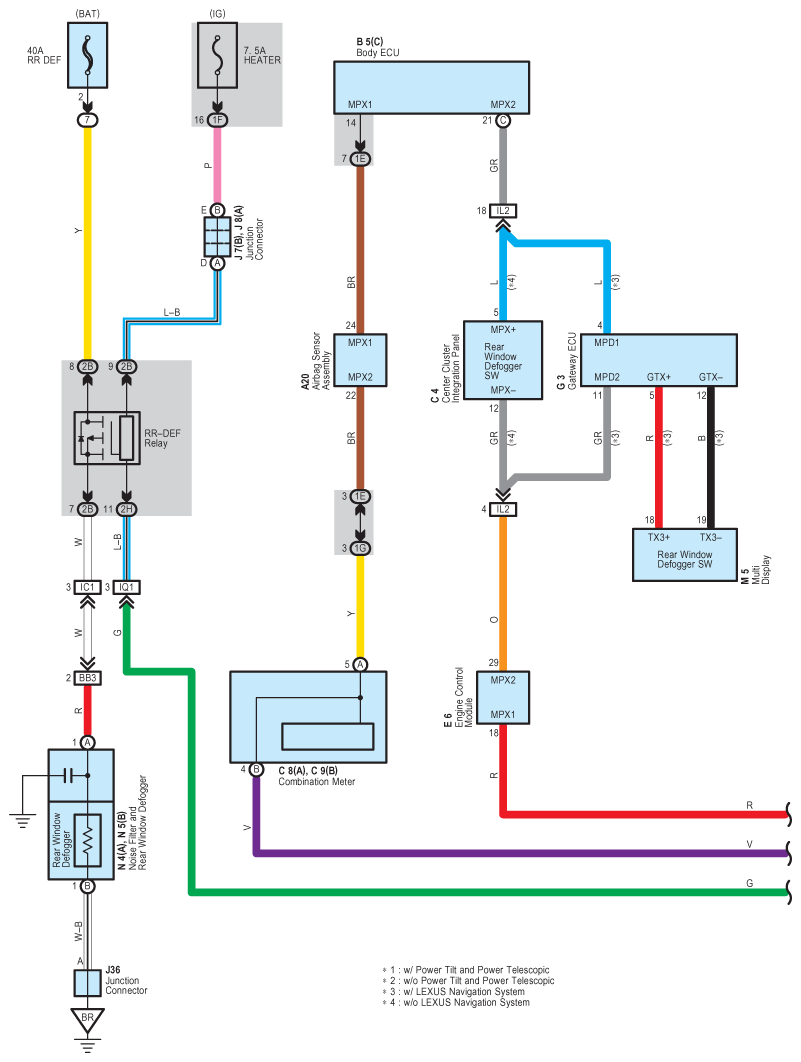

Fig 1: Rear Window Defogger - Wiring Diagram (1 Of 2)
G08929112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

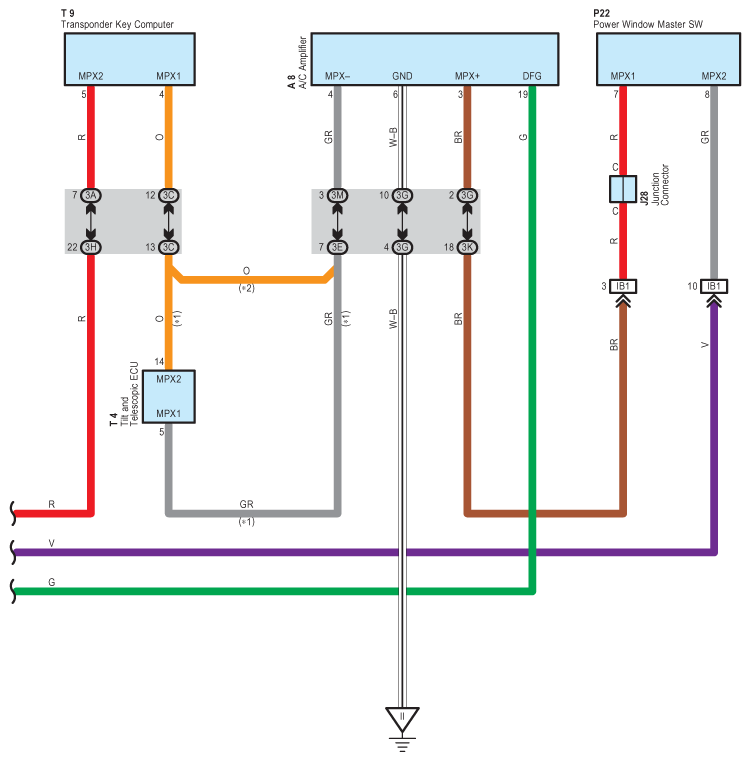

Fig 2: Rear Window Defogger - Wiring Diagram (2 Of 2)
G08929113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
