OEM System Circuits: Starting: Notes

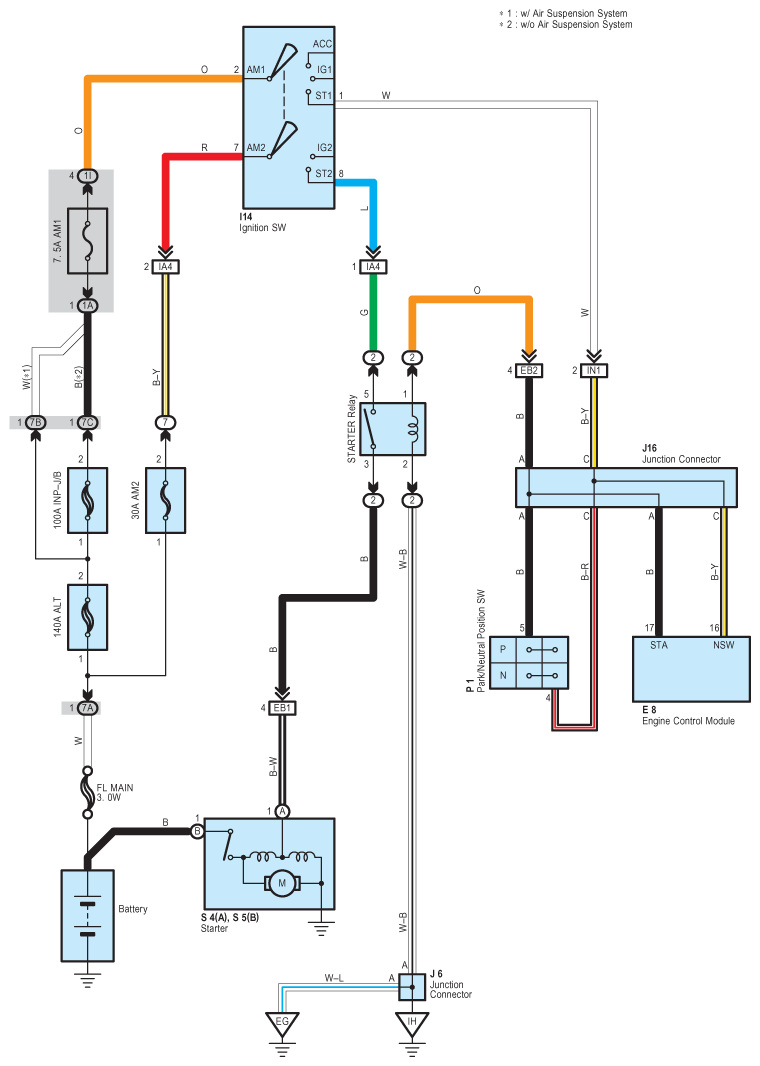

Fig 1: Starting - Wiring Diagram
G08928941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
