Combination Meter: Disassembly

  1. REMOVE COMBINATION METER GLASS
    1. Disengage the 8 claws and remove the combination meter glass.

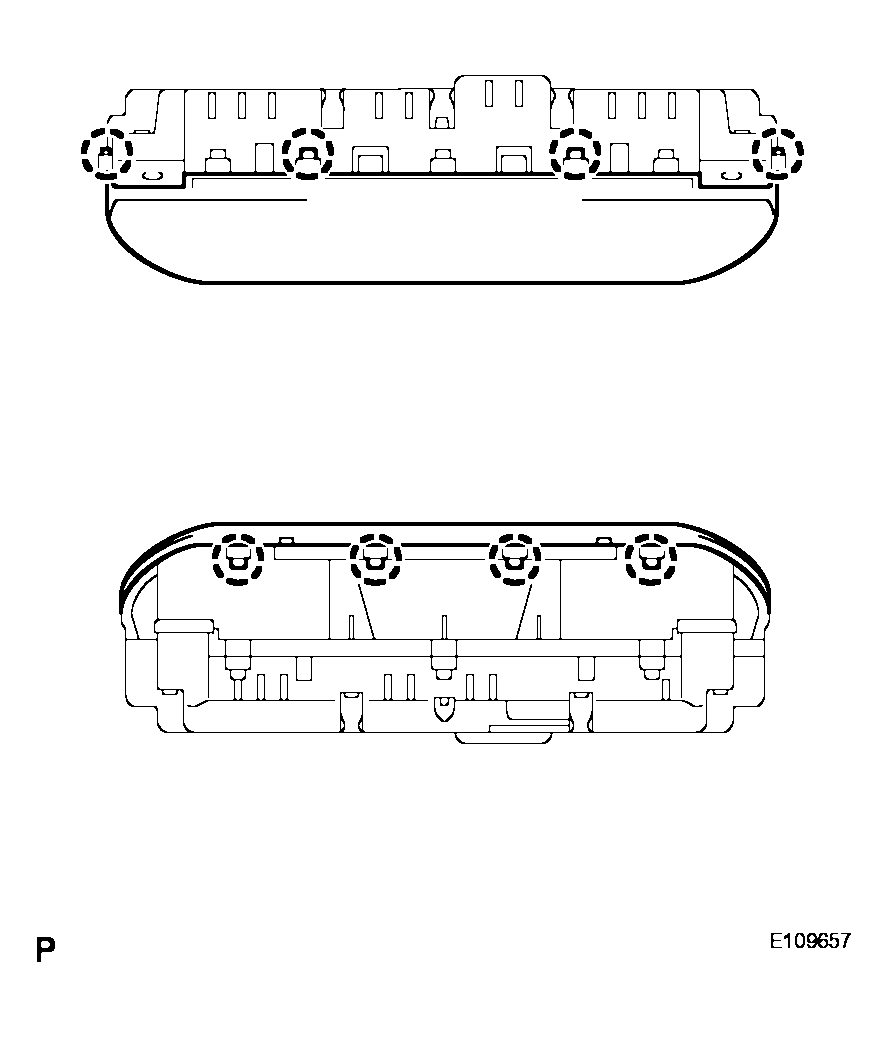

    Fig 1: Removing Combination Meter Glass Claws
    G04092550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
