Accelerator Pedal Rod: Removal

  1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY
  1. Disconnect the accelerator position sensor connector.
  2. Remove the 2 bolts, and then remove the accelerator pedal rod.

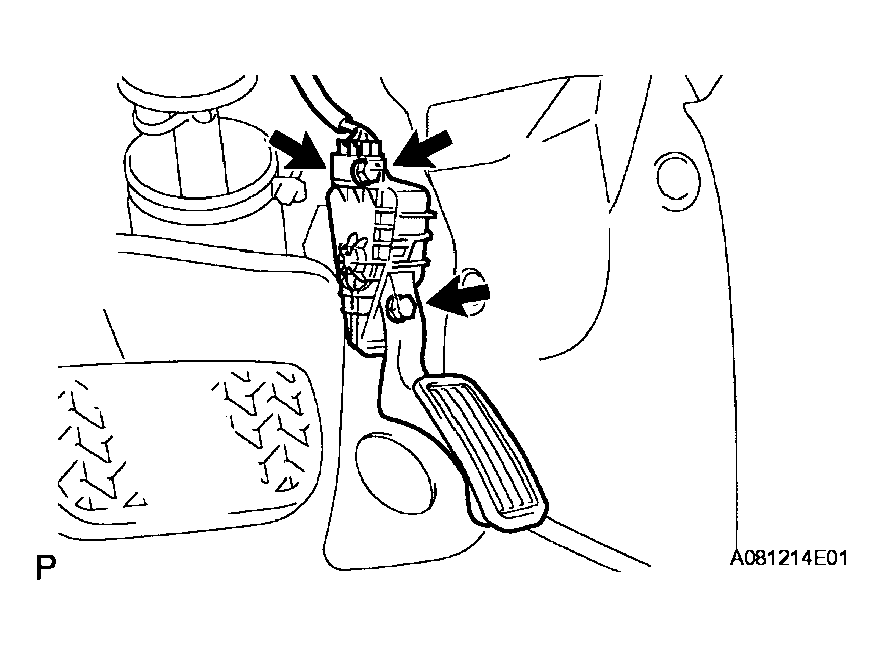

Fig 1: Removing Accelerator Pedal Rod Bolts
G04087531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
