Circuit Opening Relay: Inspection

  1. INSPECT CIRCUIT OPENING RELAY
    1. Continuity inspection.
    1. Using an ohmmeter, check for resistance between the terminals.

    Resistance

    CIRCUIT OPENING RELAY

    Terminals Specified Condition
    3-5 10 kΩ or higher
    3-5 Below 1 Ω (Apply battery voltage terminals 1 and 2)

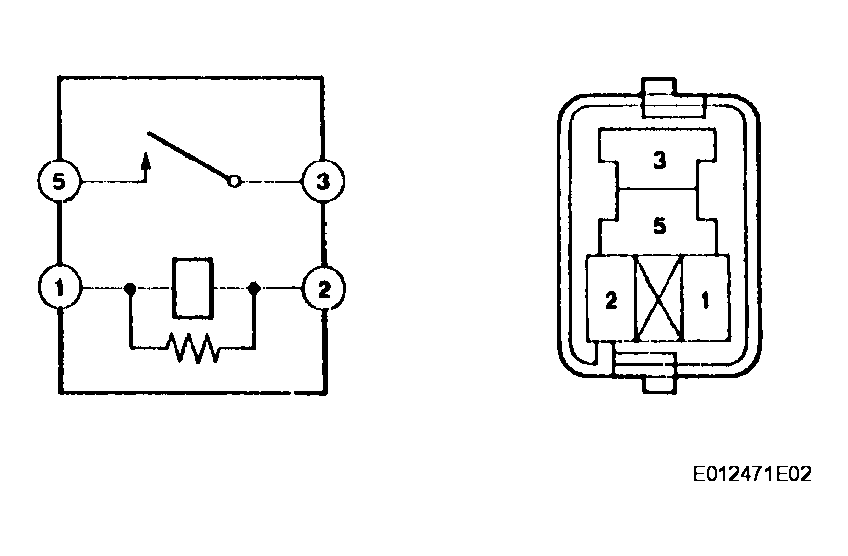

    Fig 1: Inspecting Circuit Opening Relay
    G04087523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
