Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System (3MZ-FE)
>>
SFI System
>>
Active Control Engine Mount System
>>
Wiring Diagram
Active Control Engine Mount System: Wiring Diagram

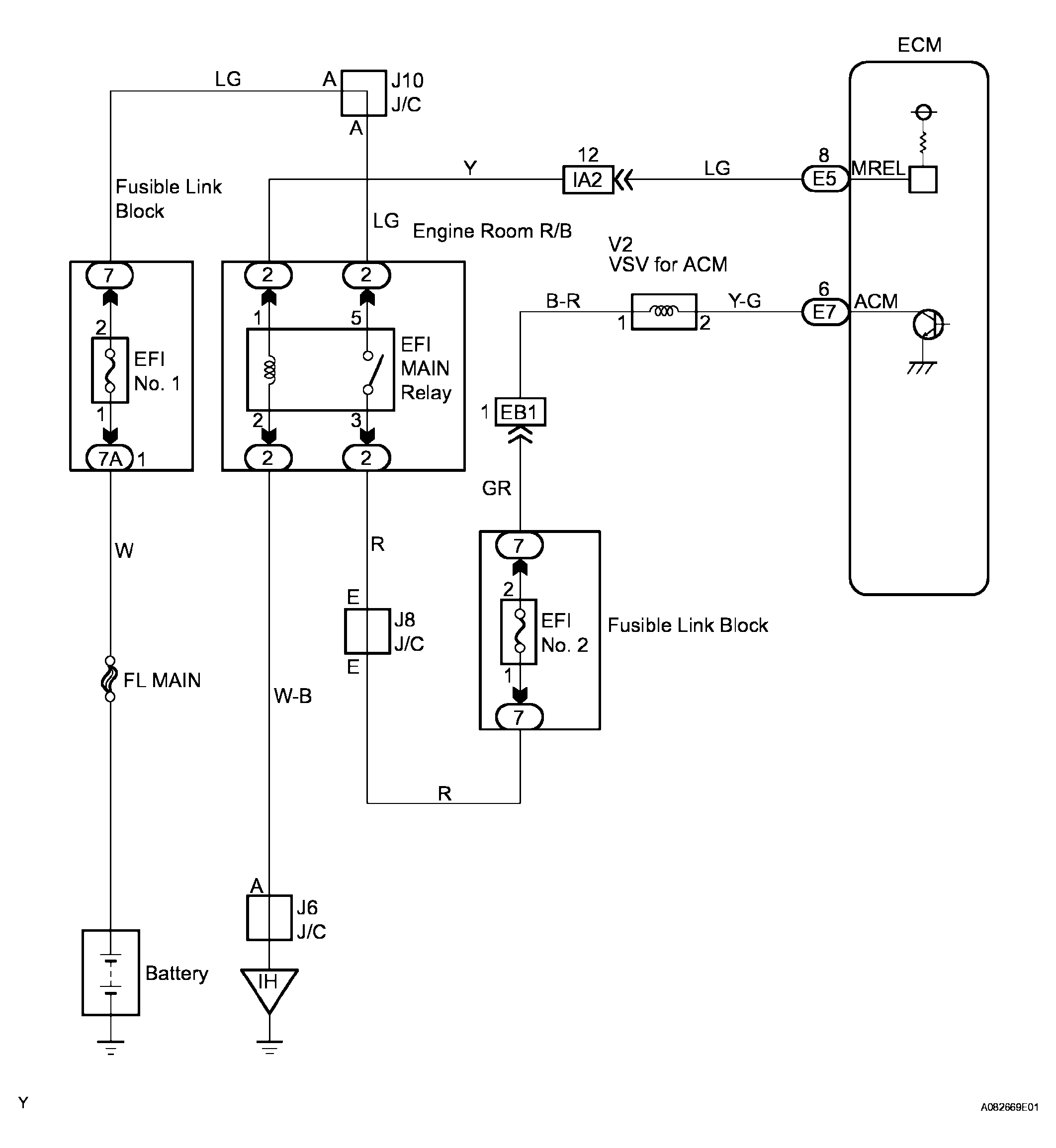

Fig 1: Active Control Engine Mount System Wiring Diagram
