Throttle Body
>>
Components
Throttle Body: Components

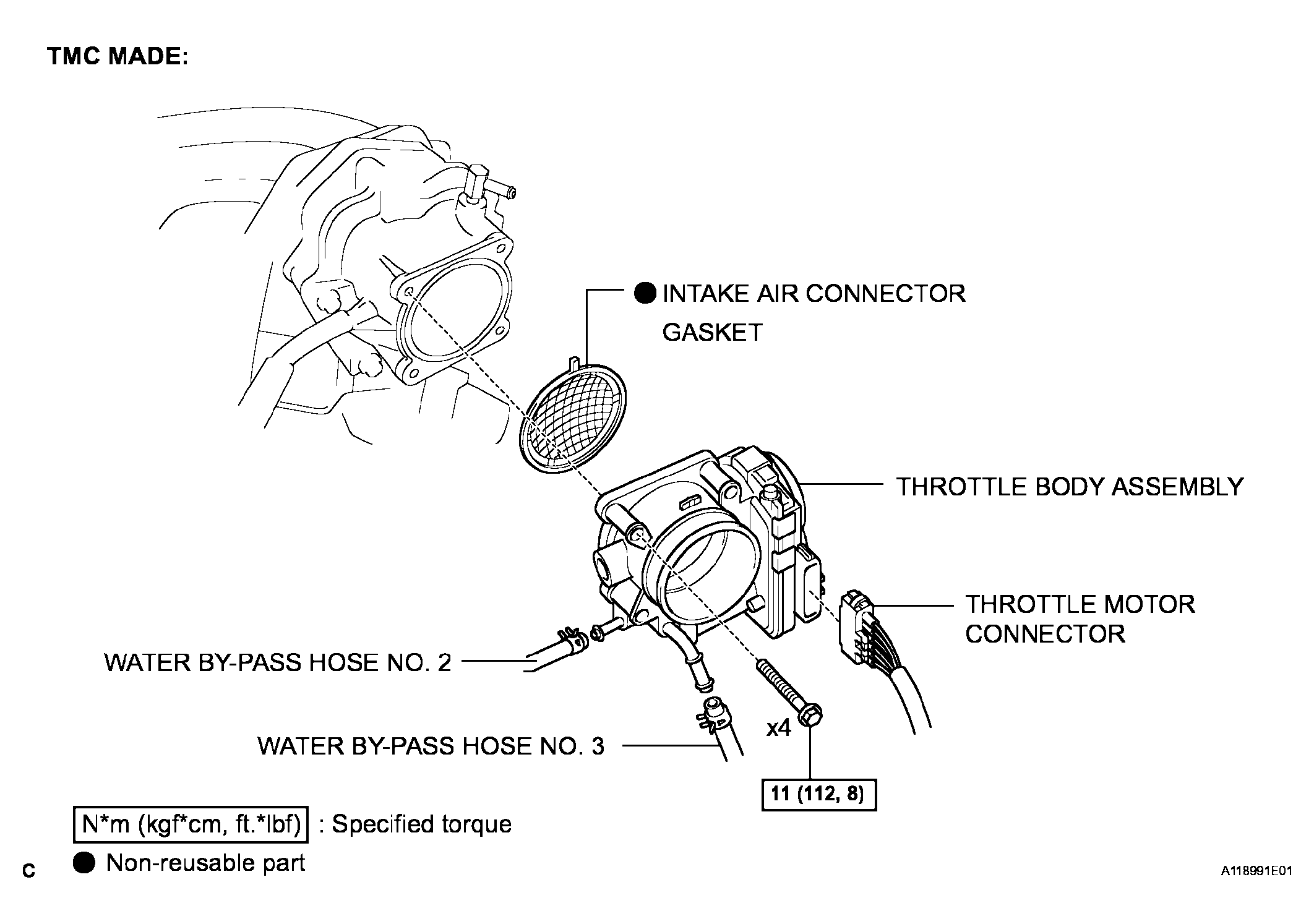

Fig 1: Throttle Body Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

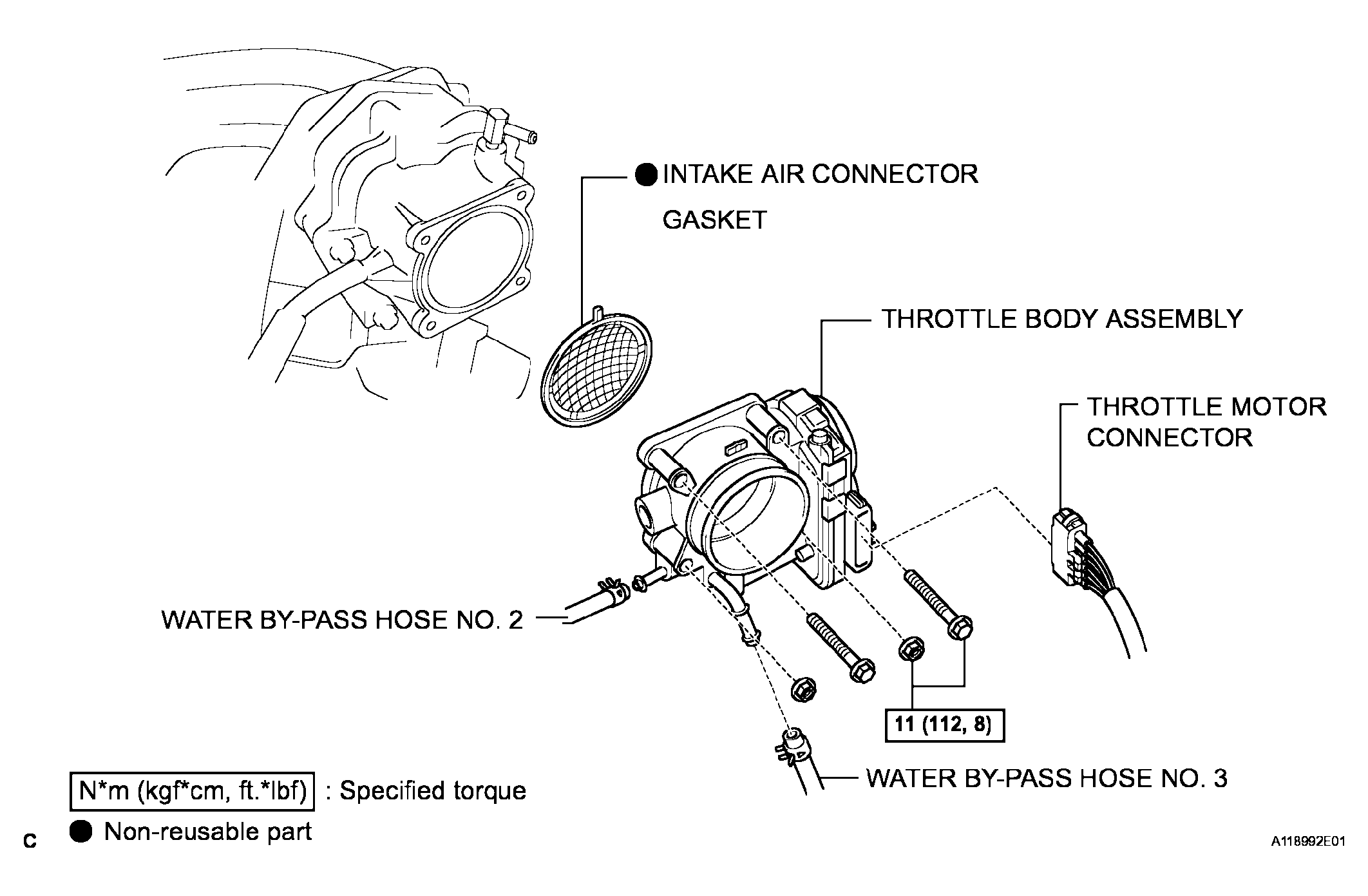

Fig 2: Throttle Body Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

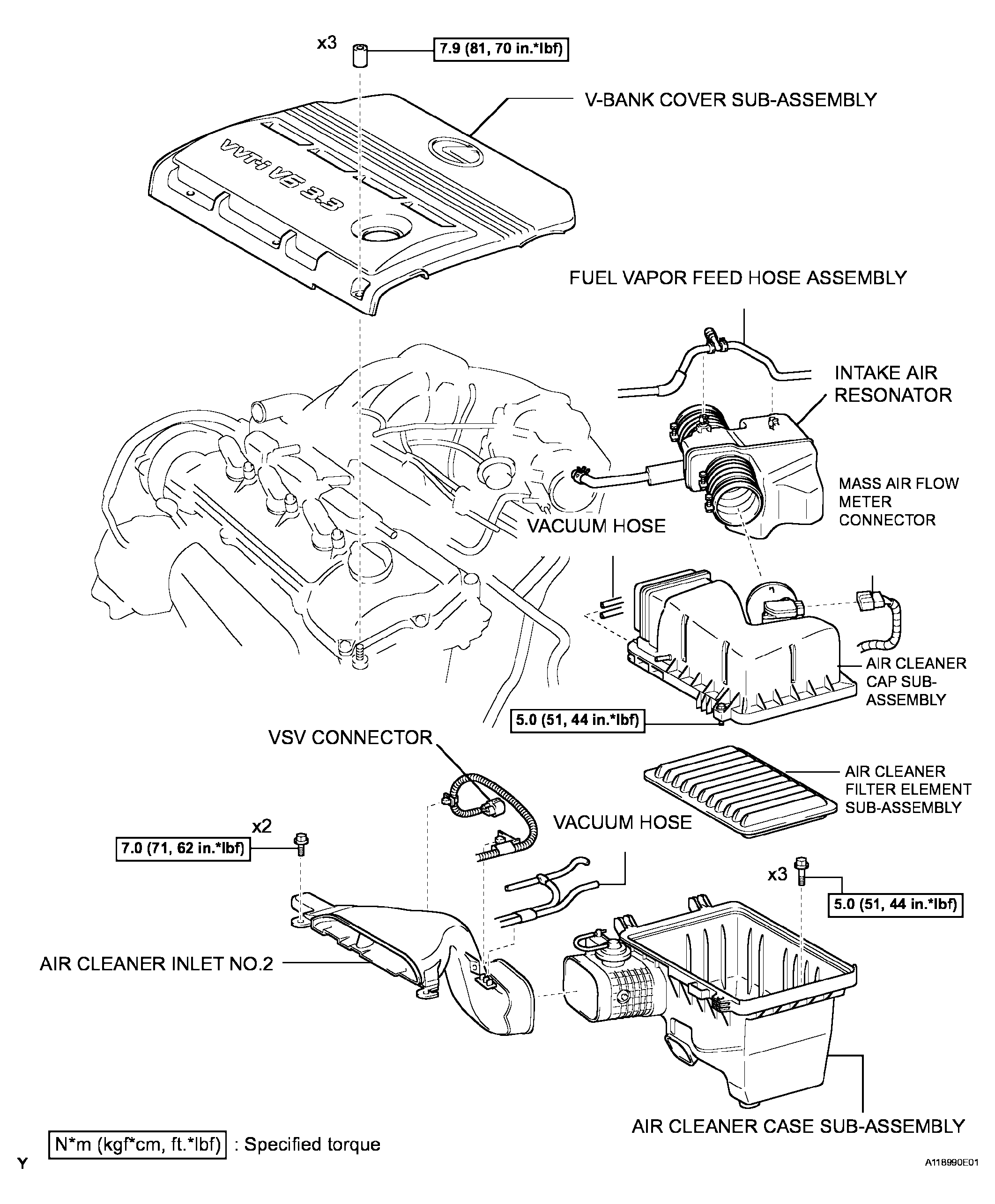

Fig 3: Throttle Body Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
