VVT Sensor: Components

Fig 1: Identifying VVT Sensor Components (1 Of 3)
G04088264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: VVT Sensor Replacement Components With Torque Specifications (2 Of 3)
G04088265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

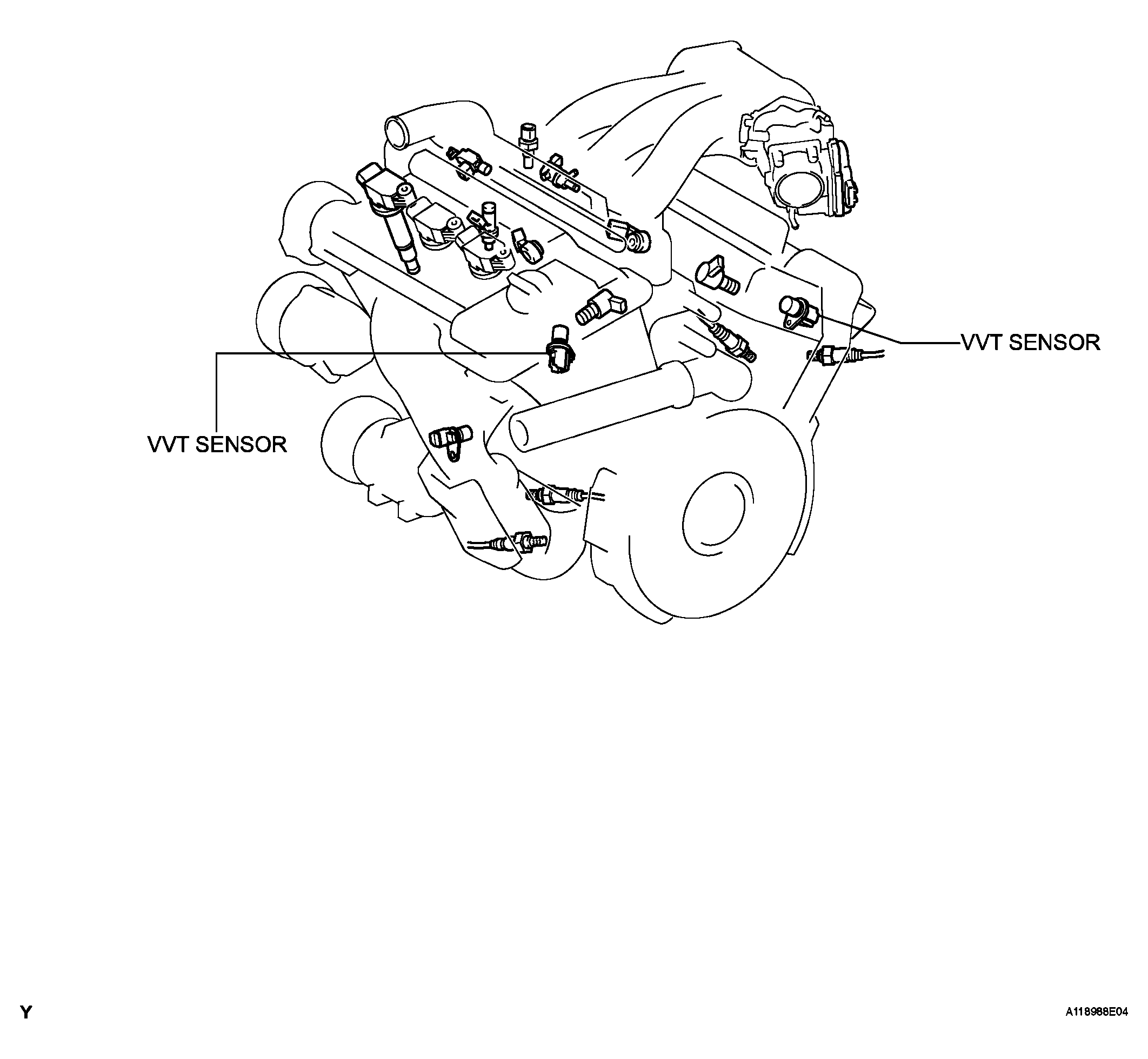

Fig 3: Identifying VVT Sensor Components (3 Of 3)
G04088266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
