Height Control Valve: Components

Fig 1: Identifying Height Control Valve Components (1 Of 3)
G04090293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

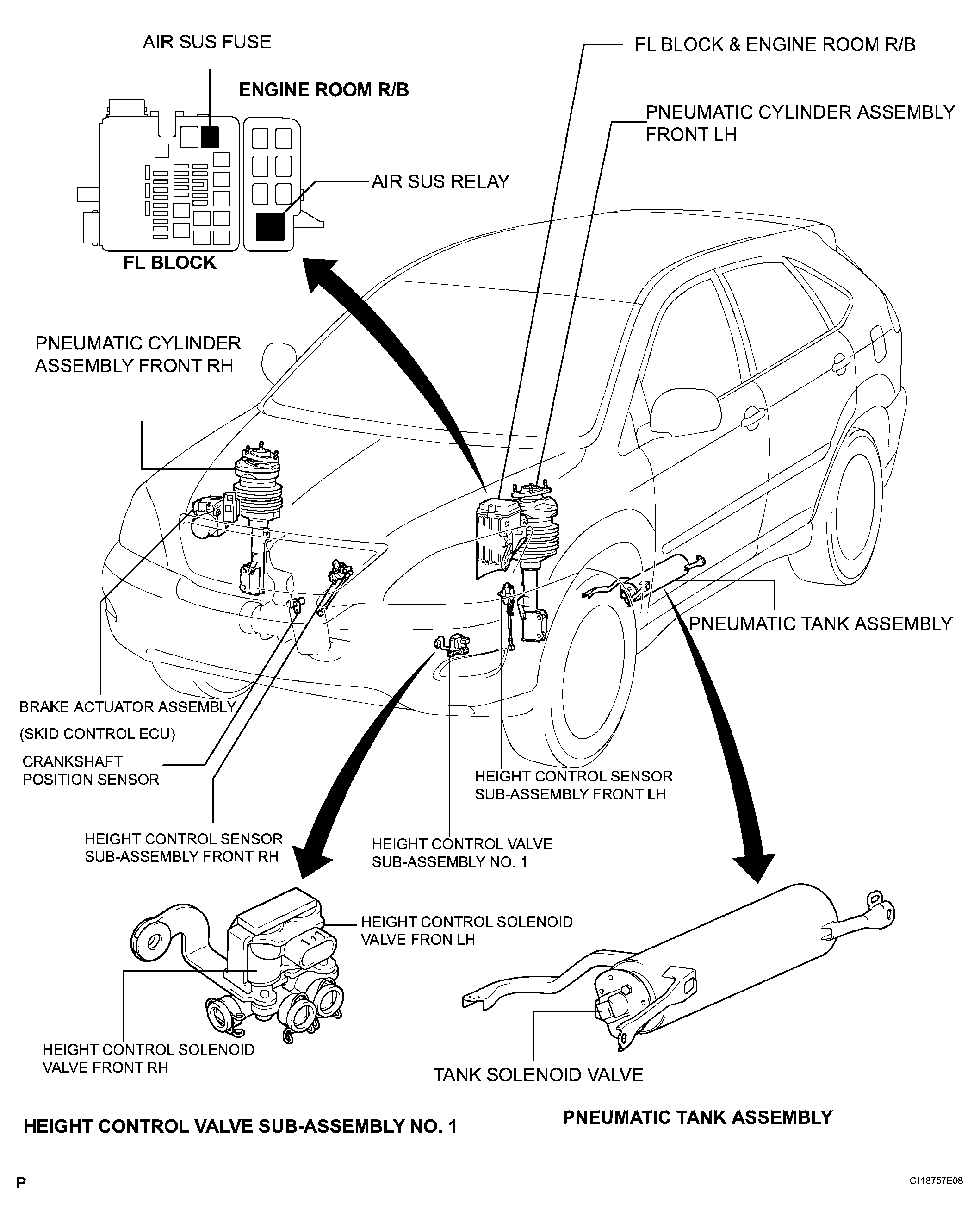

Fig 2: Identifying Height Control Valve Components (2 Of 3)
G04090294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

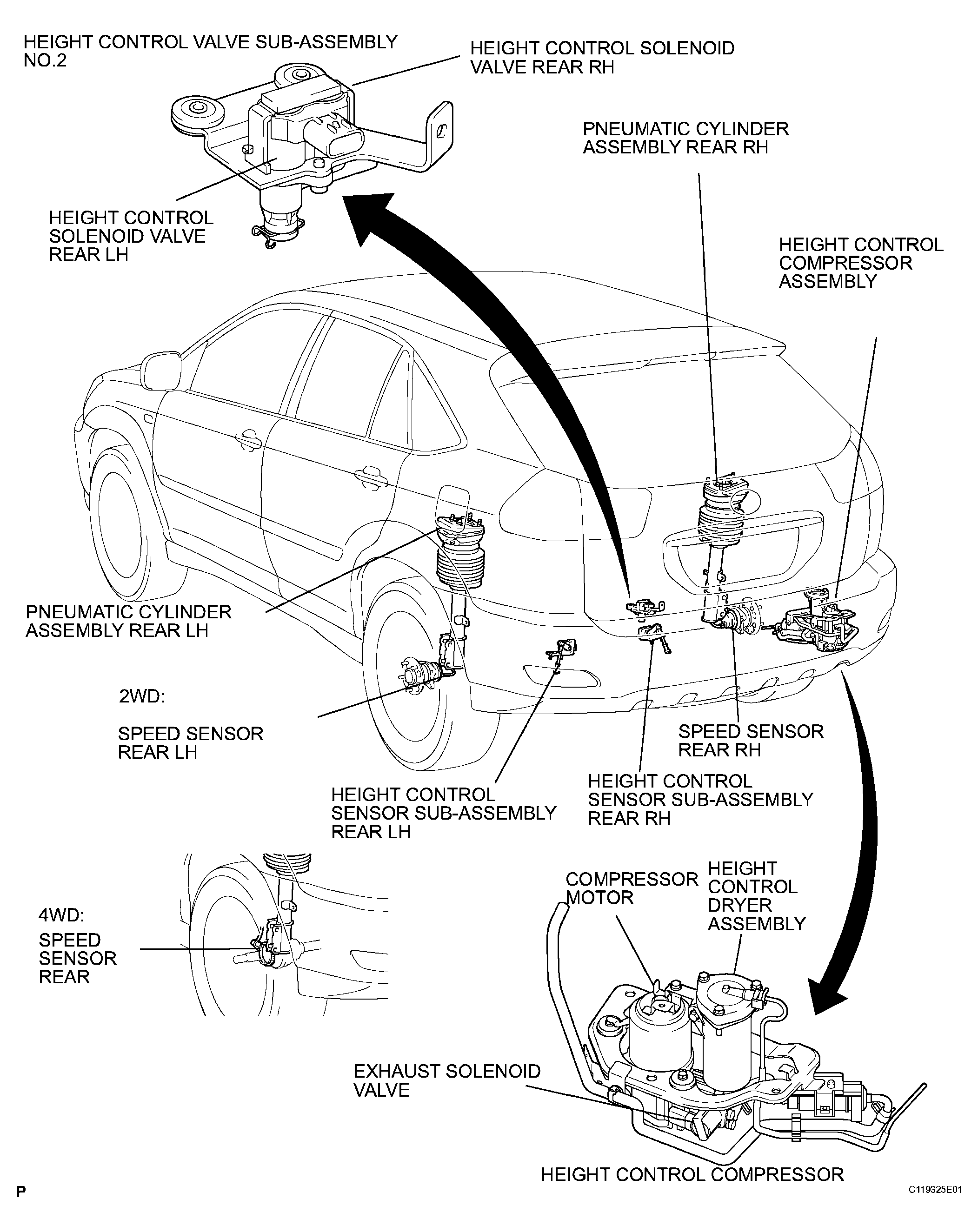

Fig 3: Identifying Height Control Valve Components (3 Of 3)
G04090295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
