OEM System Circuits: EPS: Notes

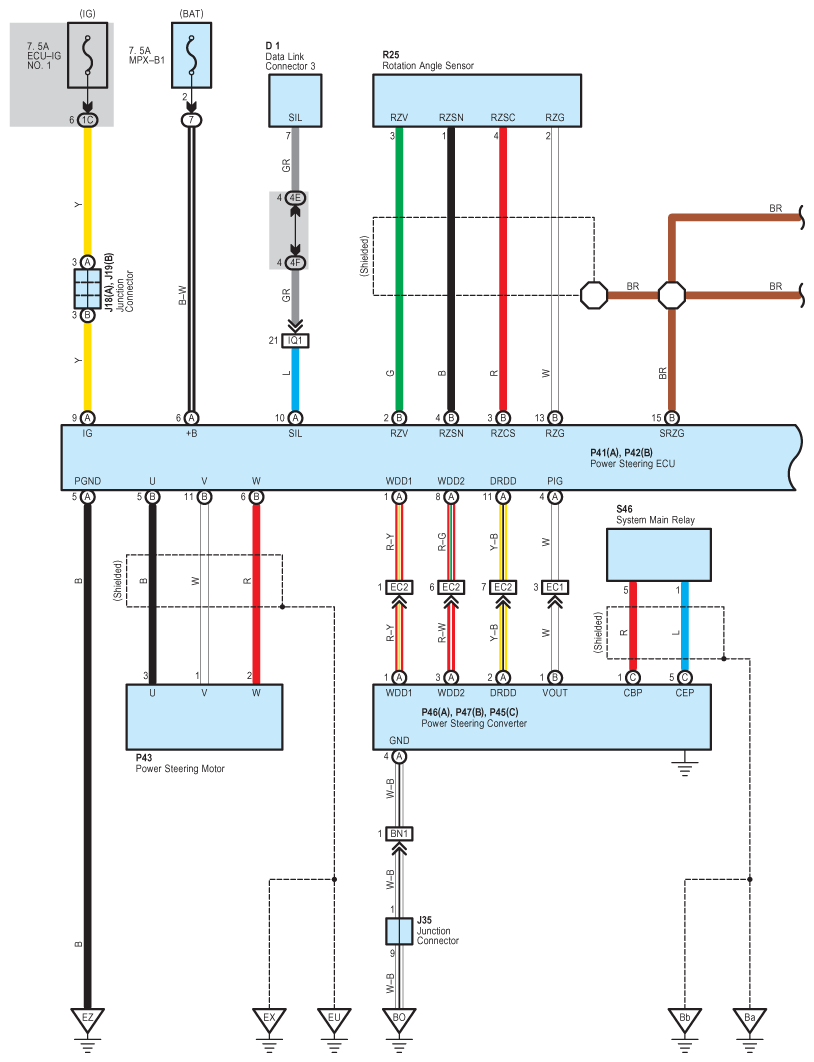

Fig 1: EPS Wiring Diagram (1 Of 4)

G08914697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

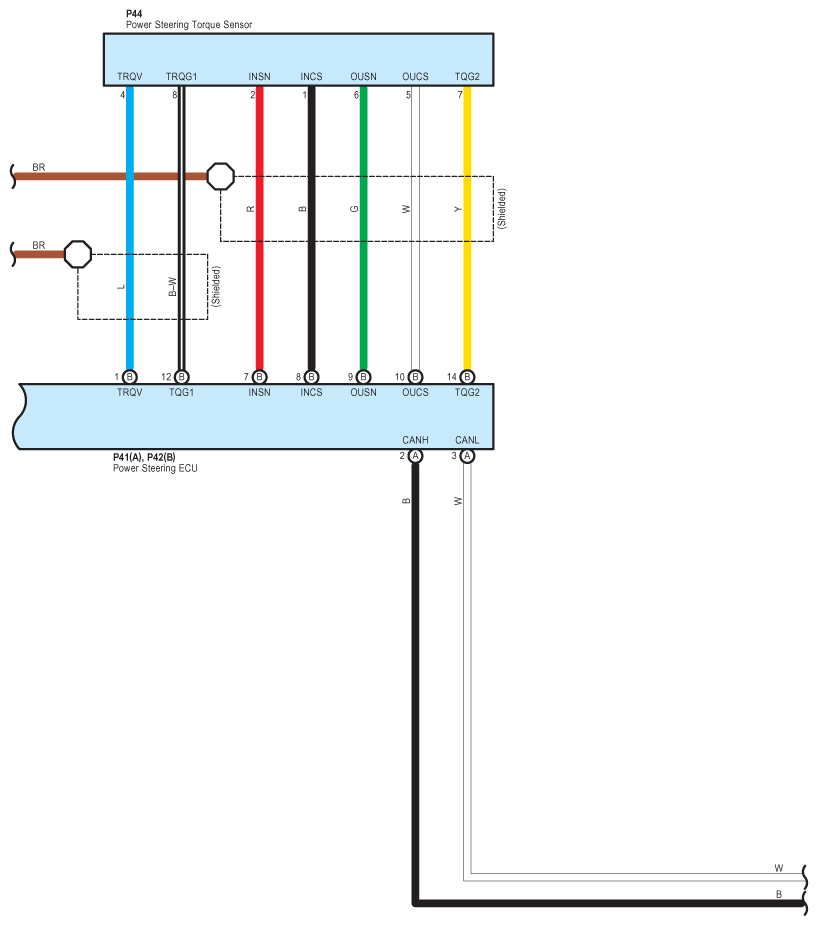

Fig 2: EPS Wiring Diagram (2 Of 4)

G08914698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

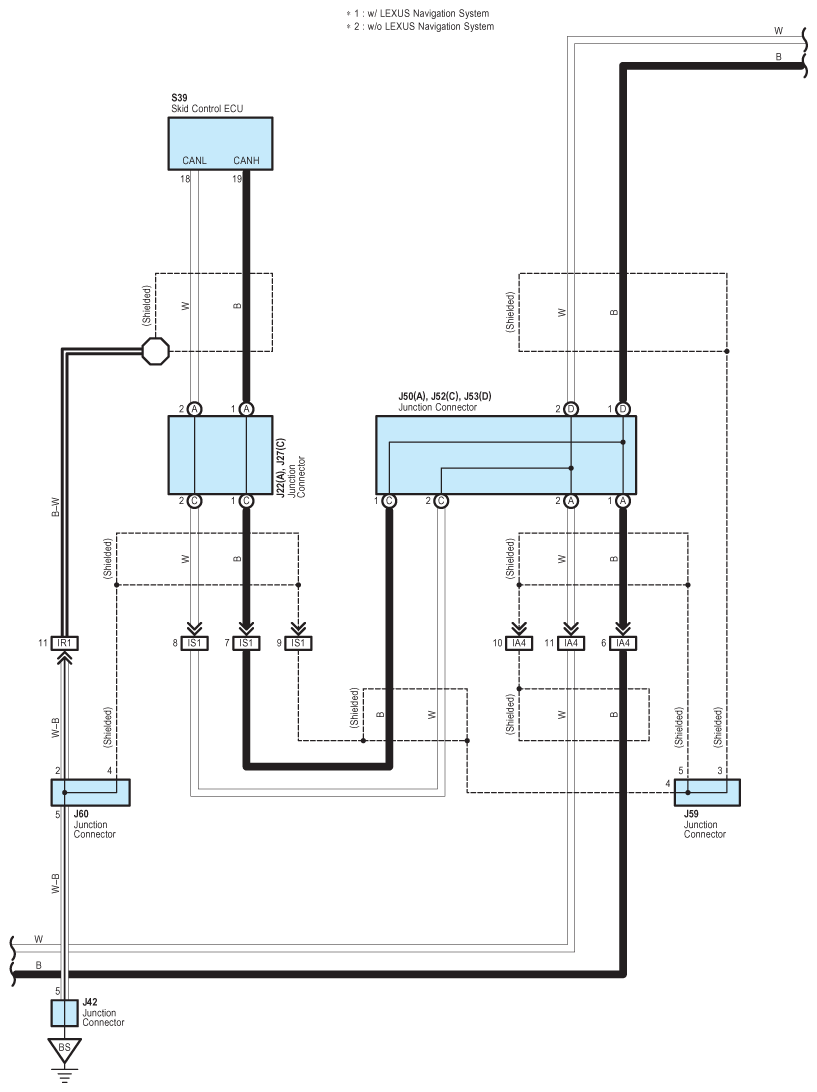

Fig 3: EPS Wiring Diagram (3 Of 4)

G08914699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

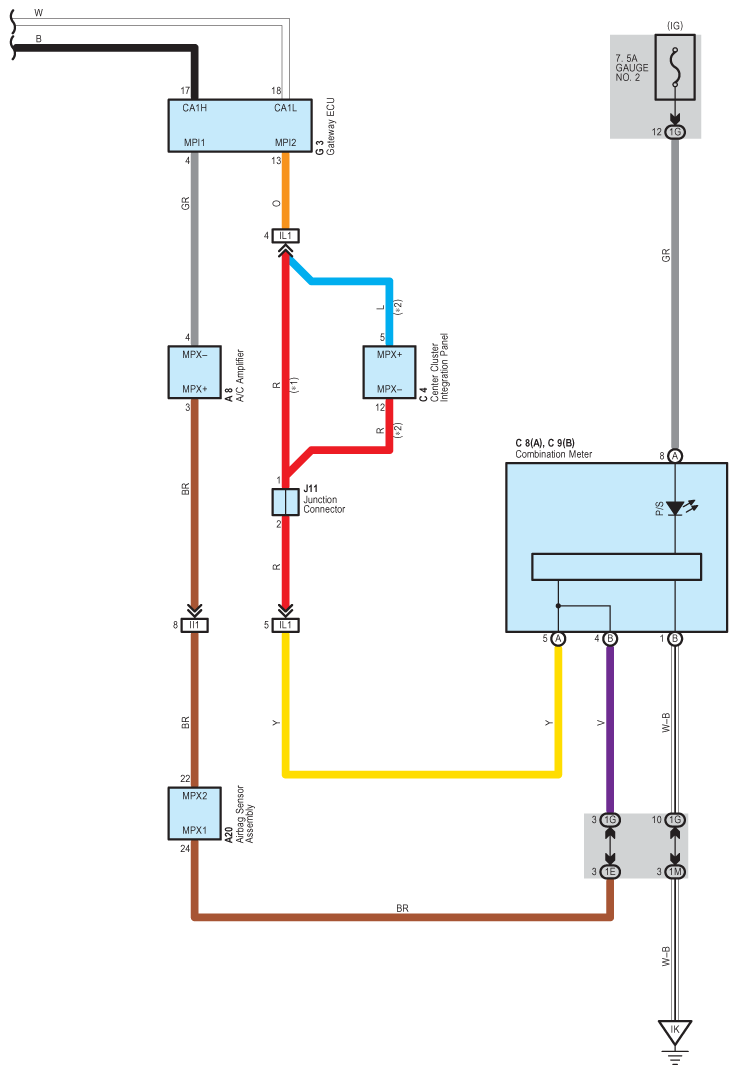

Fig 4: EPS Wiring Diagram (4 Of 4)

G08914700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
