Key Reminder: Notes

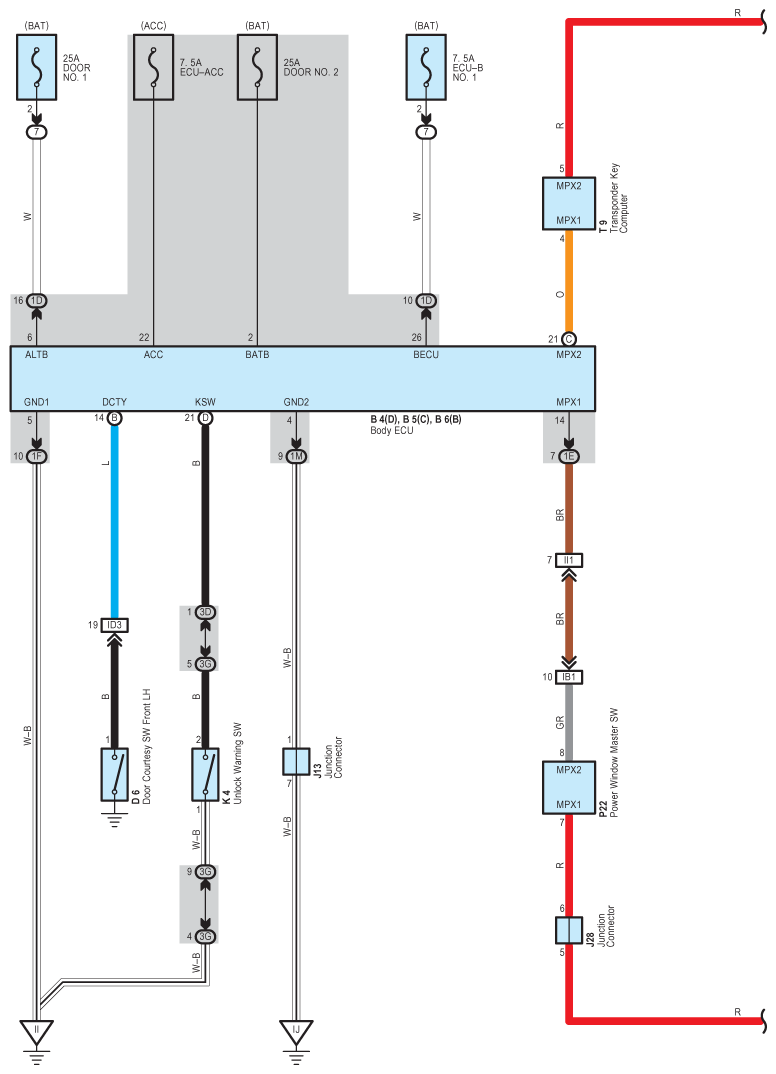

Fig 1: Key Reminder Wiring Diagram (1 Of 2)
G08914796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Key Reminder Wiring Diagram (2 Of 2)
G08914797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
