Mirror Heater without Driving Position Memory
>>
Notes
Mirror Heater without Driving Position Memory: Notes

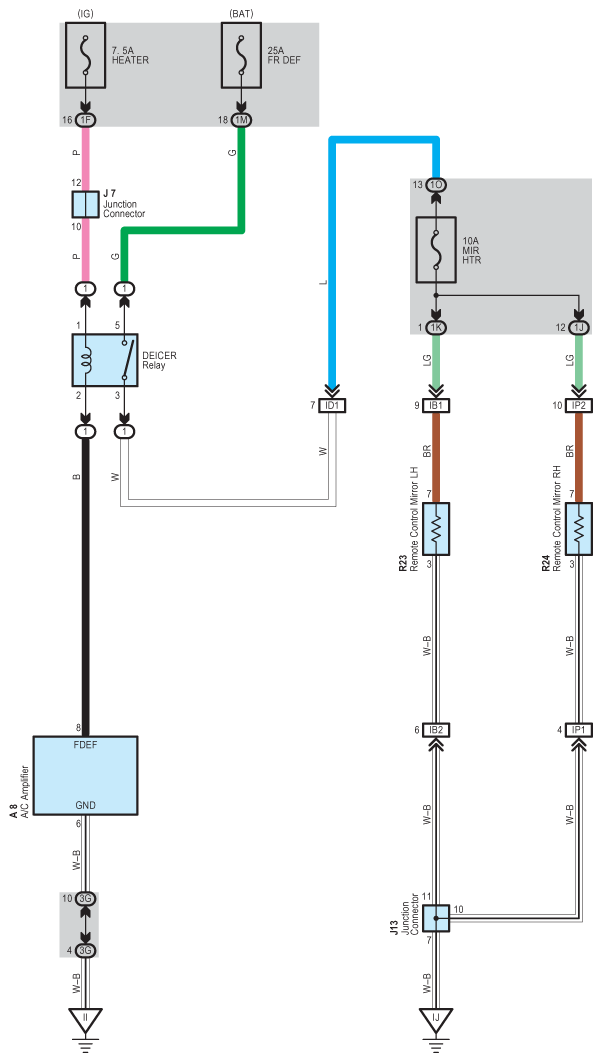

Fig 1: Mirror Heater Without Driving Position Memory Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
