Mutli Display without Navigation: Notes

Fig 1: Mutli Display Without Navigation Wiring Diagram (1 Of 3)
G08914892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

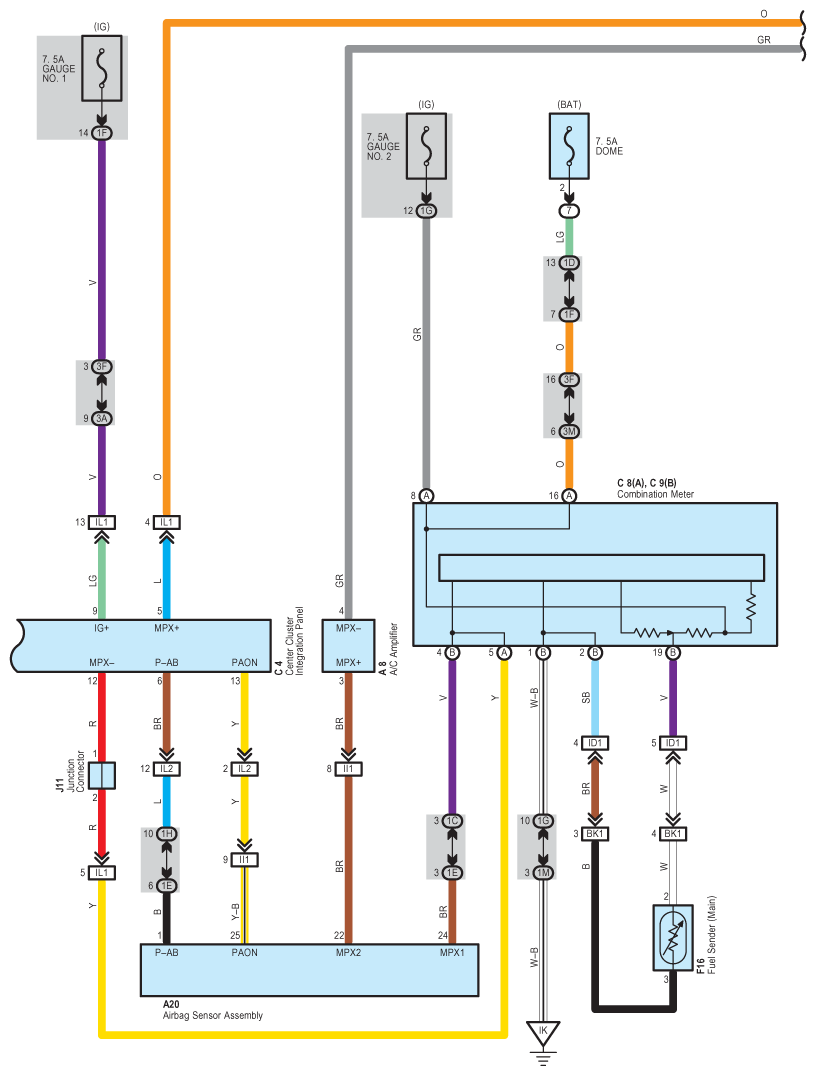

Fig 2: Mutli Display Without Navigation Wiring Diagram (2 Of 3)
G08914893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

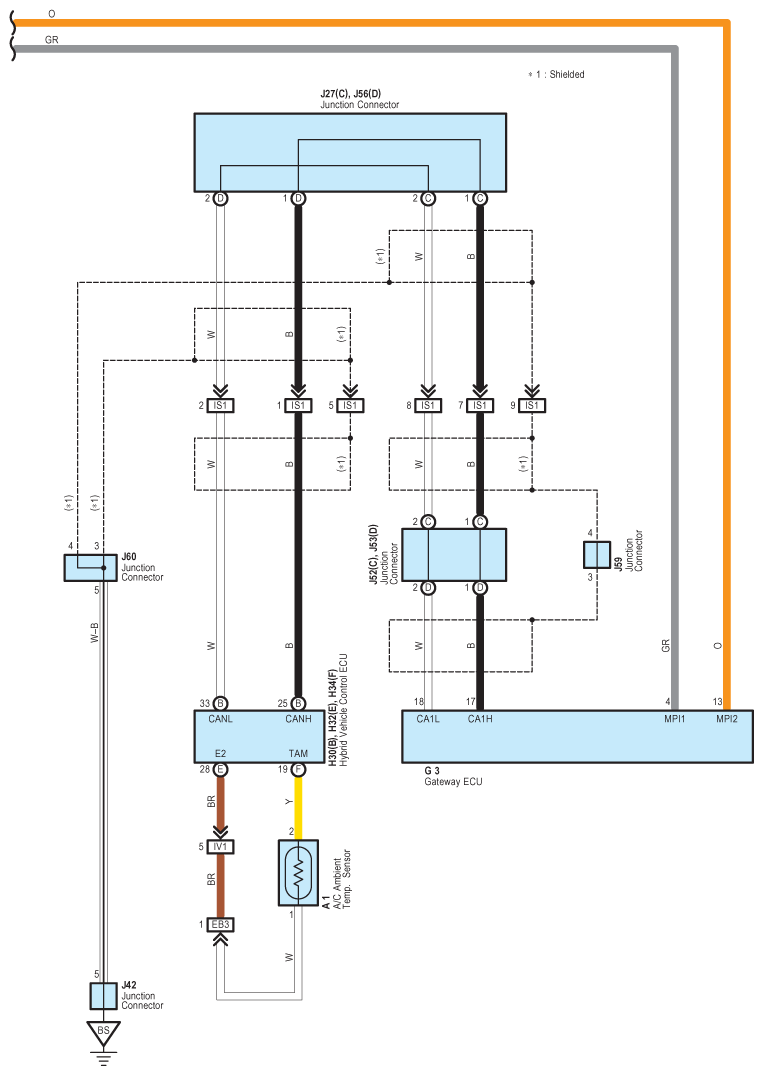

Fig 3: Mutli Display Without Navigation Wiring Diagram (3 Of 3)
G08914894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
