Sliding Roof: Notes

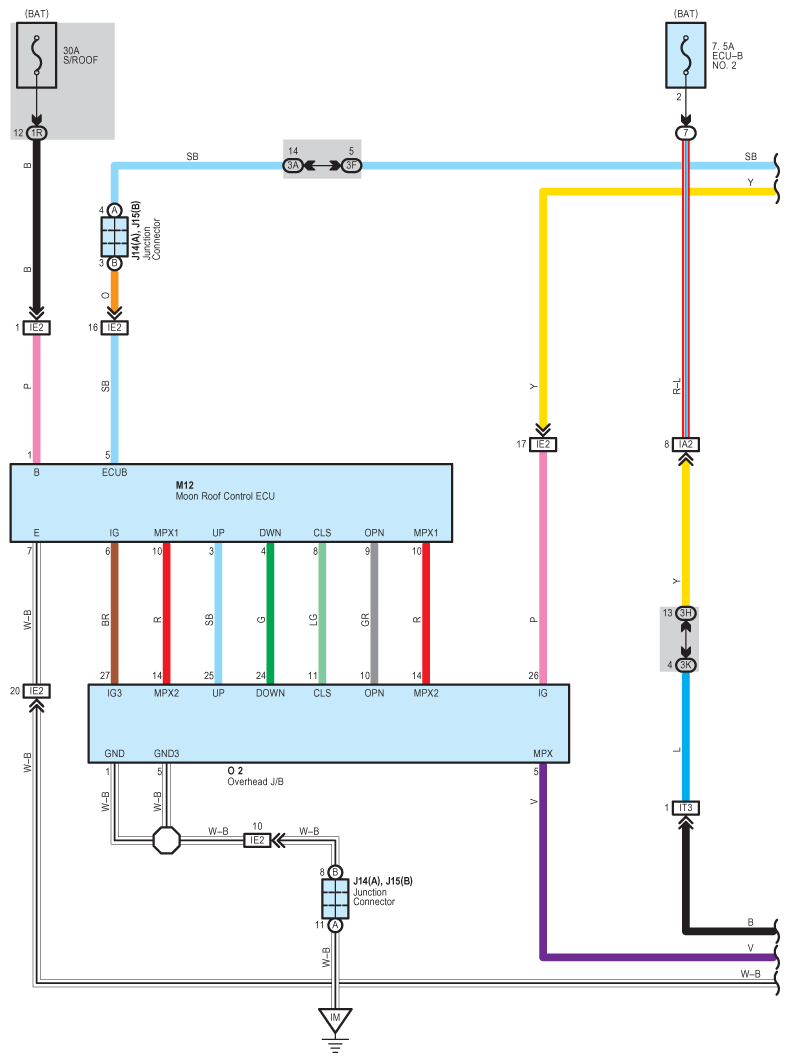

Fig 1: Sliding Roof Wiring Diagram (1 Of 4)
G08914791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

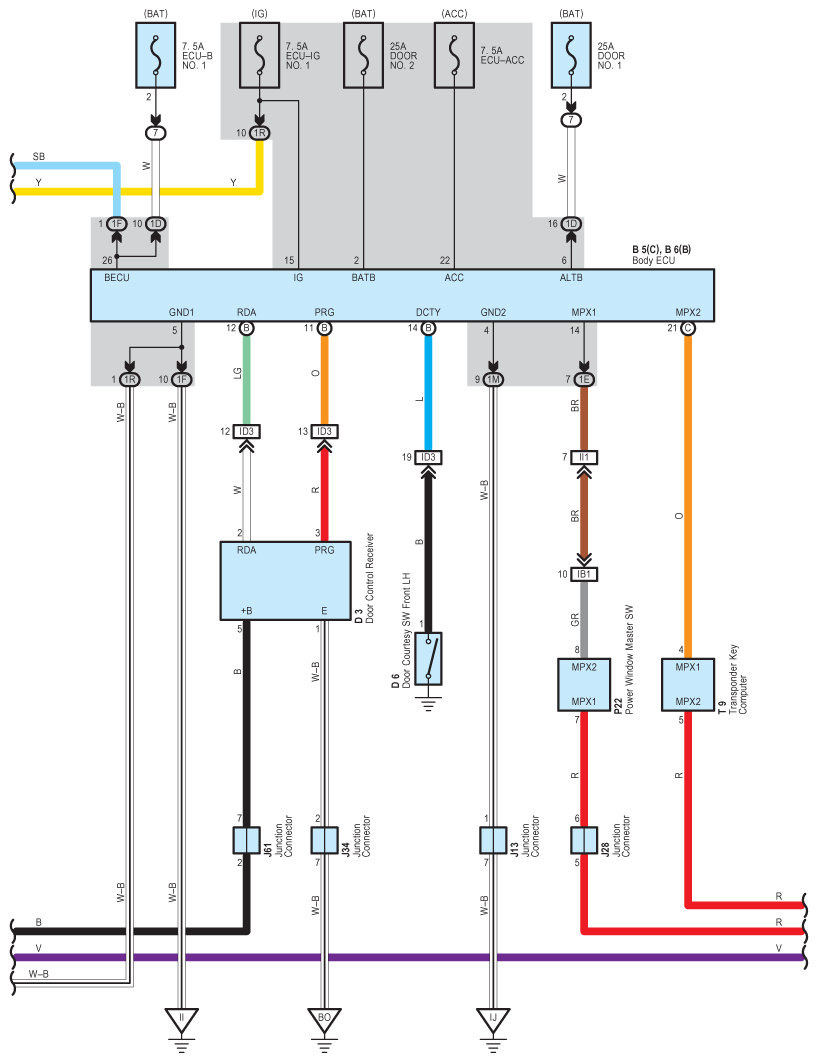

Fig 2: Sliding Roof Wiring Diagram (2 Of 4)
G08914792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

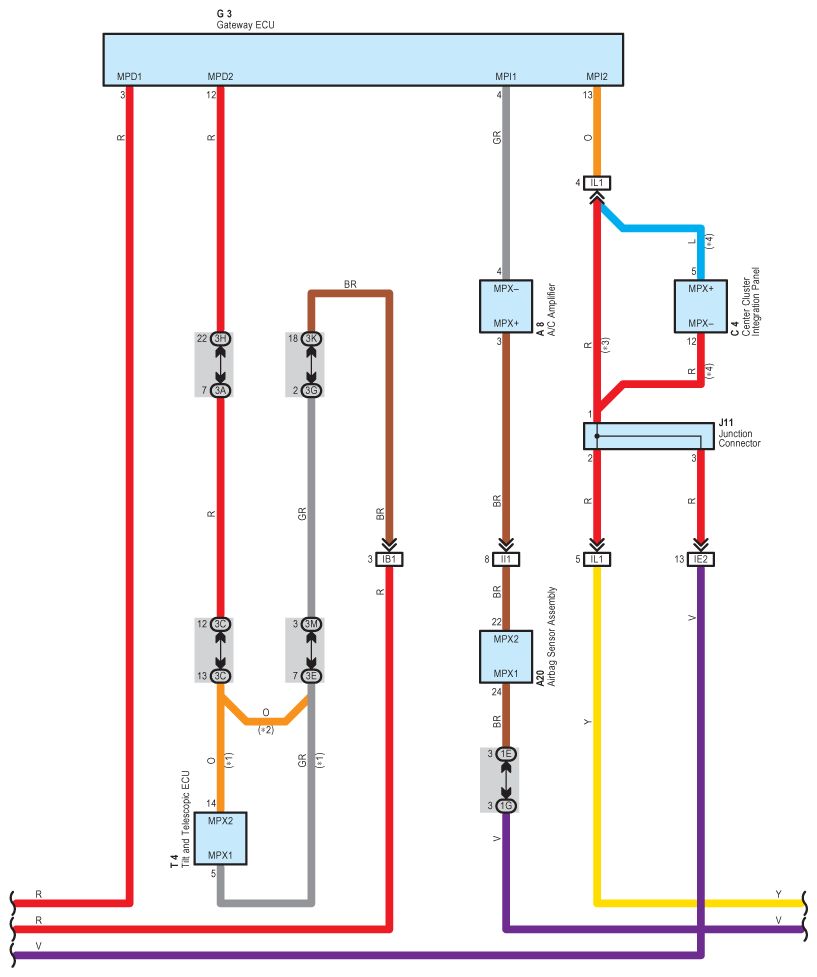

Fig 3: Sliding Roof Wiring Diagram (3 Of 4)
G08914793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

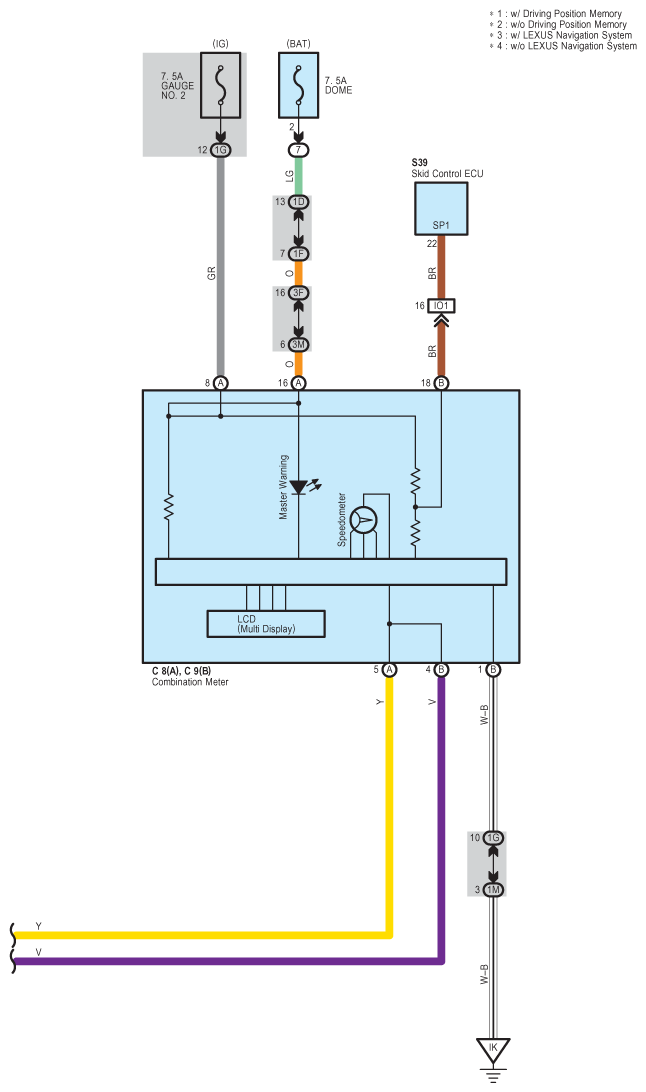

Fig 4: Sliding Roof Wiring Diagram (4 Of 4)
G08914794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
