Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connectors.
2. Install the combination meter assembly with the 4 screws.

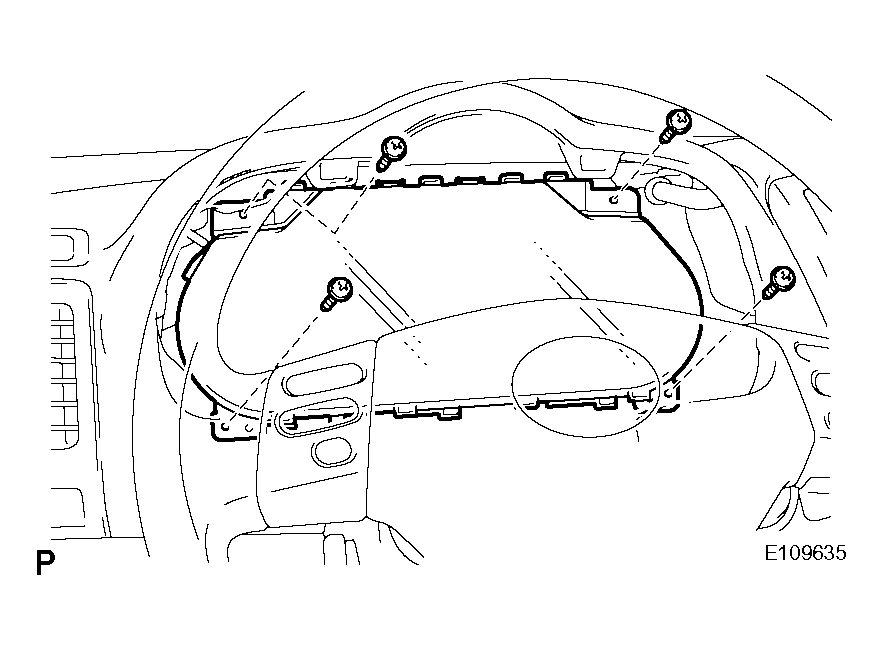

Fig 1: Identifying Combination Meter Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Engage the 4 clips and install the instrument cluster finish panel sub-assembly.

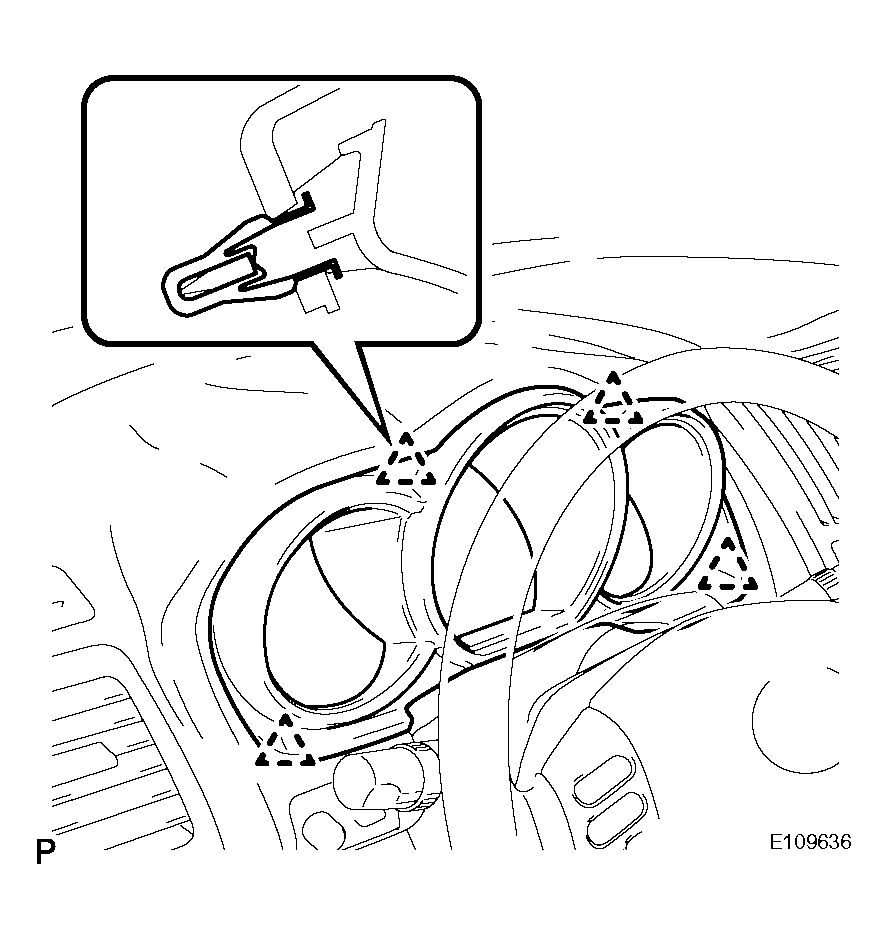

Fig 2: Identifying Instrument Cluster Finish Panel Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. (See INITIALIZATION )
