Circuit Opening Relay: Inspection

  1. INSPECT CIRCUIT OPENING RELAY
    1. Using an ohmmeter, measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (Apply battery voltage between terminals 1 and 2)

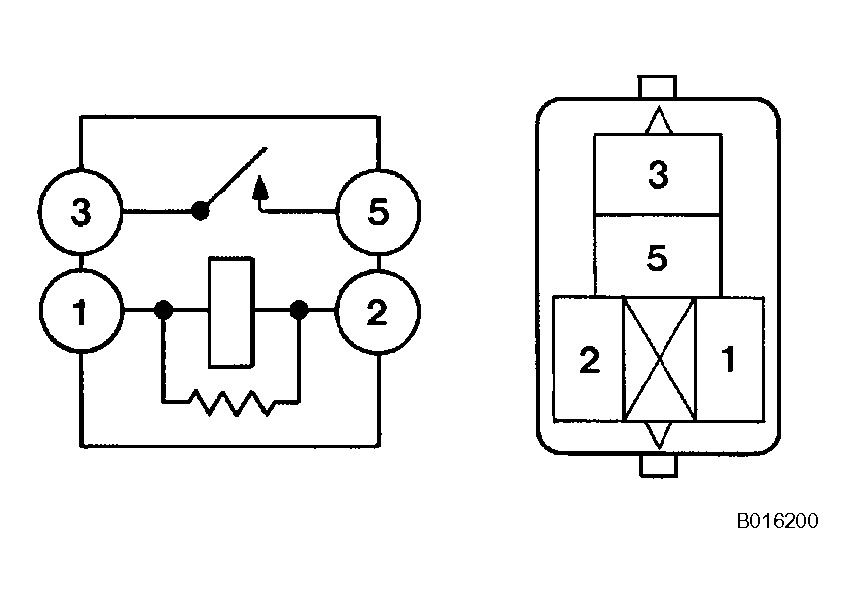

      Fig 1: Identifying Relay Test Terminals
      G04044792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the result is not as specified, replace the relay.
