Cooling Fan
>>
Fan ASSY
>>
Components
Fan ASSY: Components

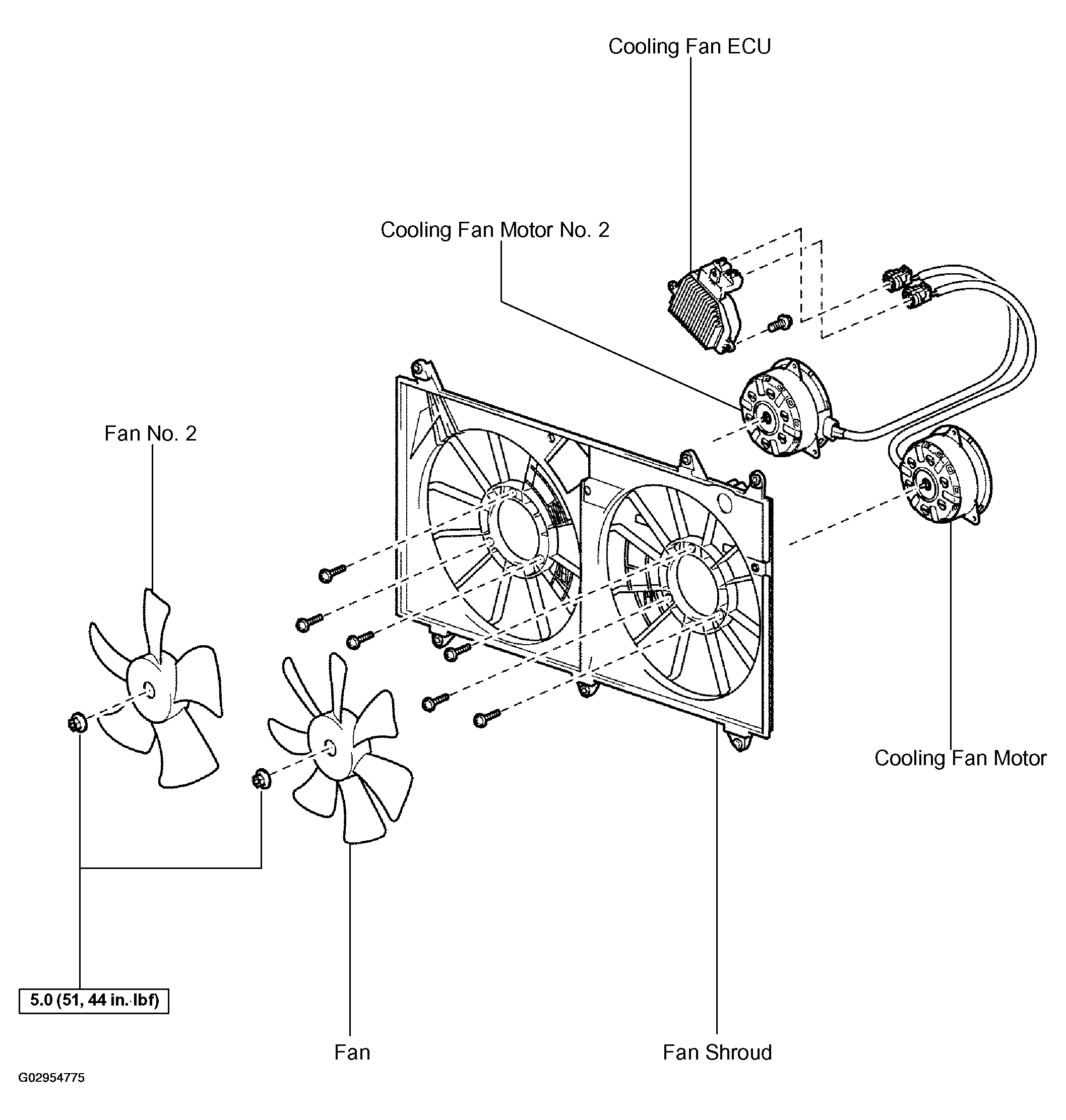

Fig 1: Identifying Fan Assy Components & Replacements (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

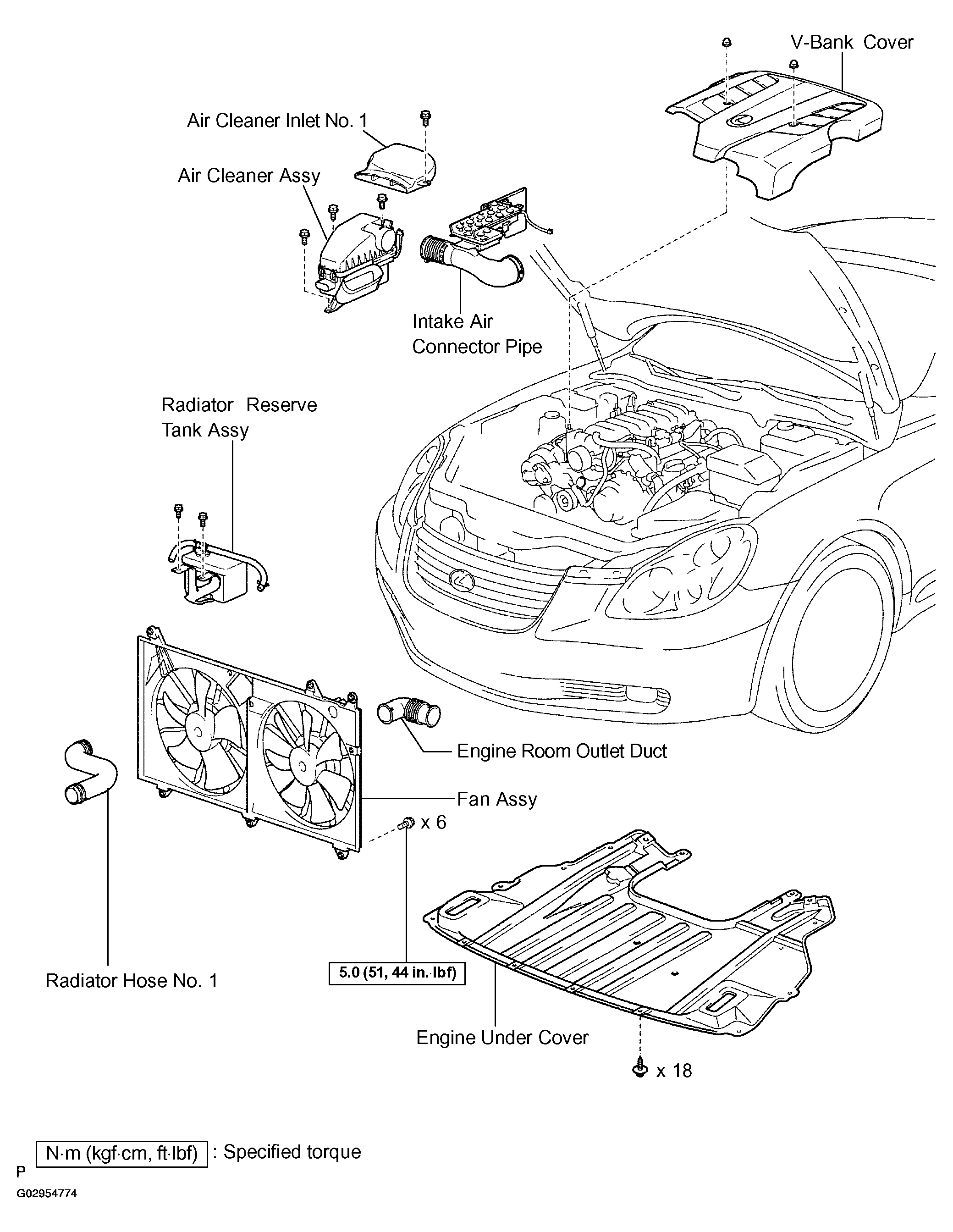

Fig 2: Identifying Fan Assy Components & Replacements (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
