Radiator ASSY: Components

Fig 1: Identifying Radiator Assy Components & Replacements (1 Of 2)
G02954756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

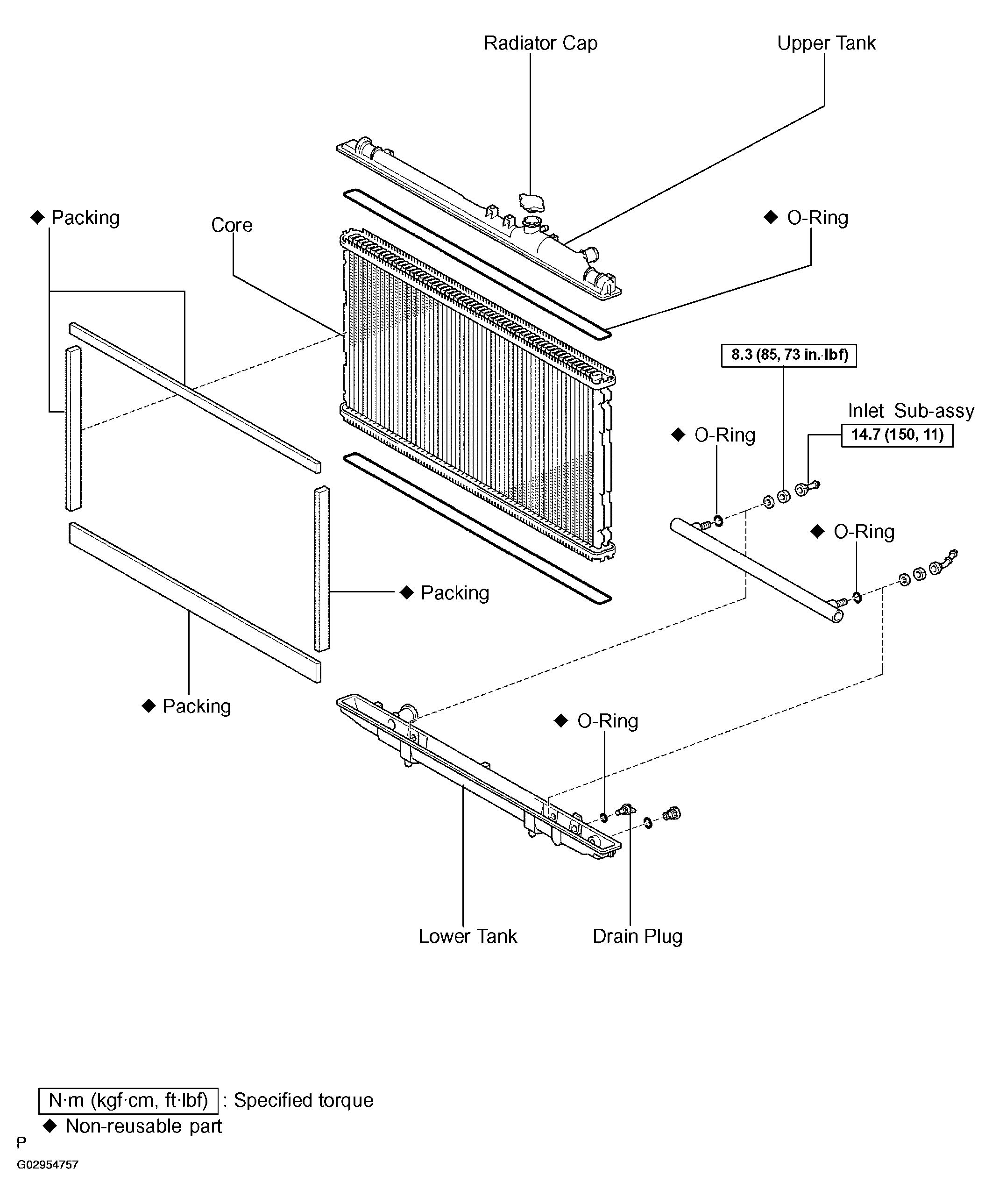

Fig 2: Identifying Radiator Assy Components & Replacements (2 Of 2)
G02954757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
