Cooling Fan: Thermostat: Components

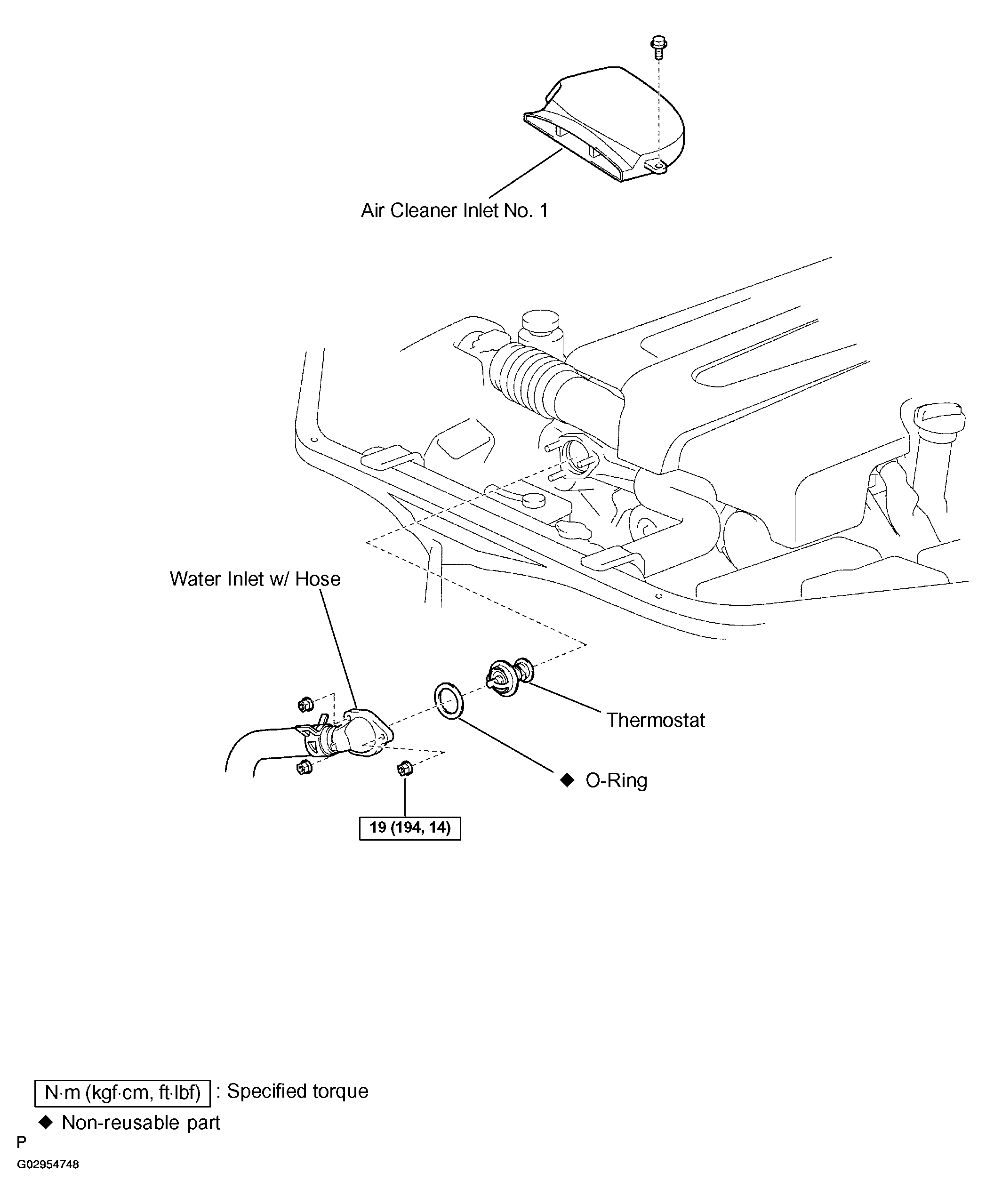

Fig 1: Identifying Thermostat Components & Replacements

G02954748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
