Floor Shift ASSY: Components

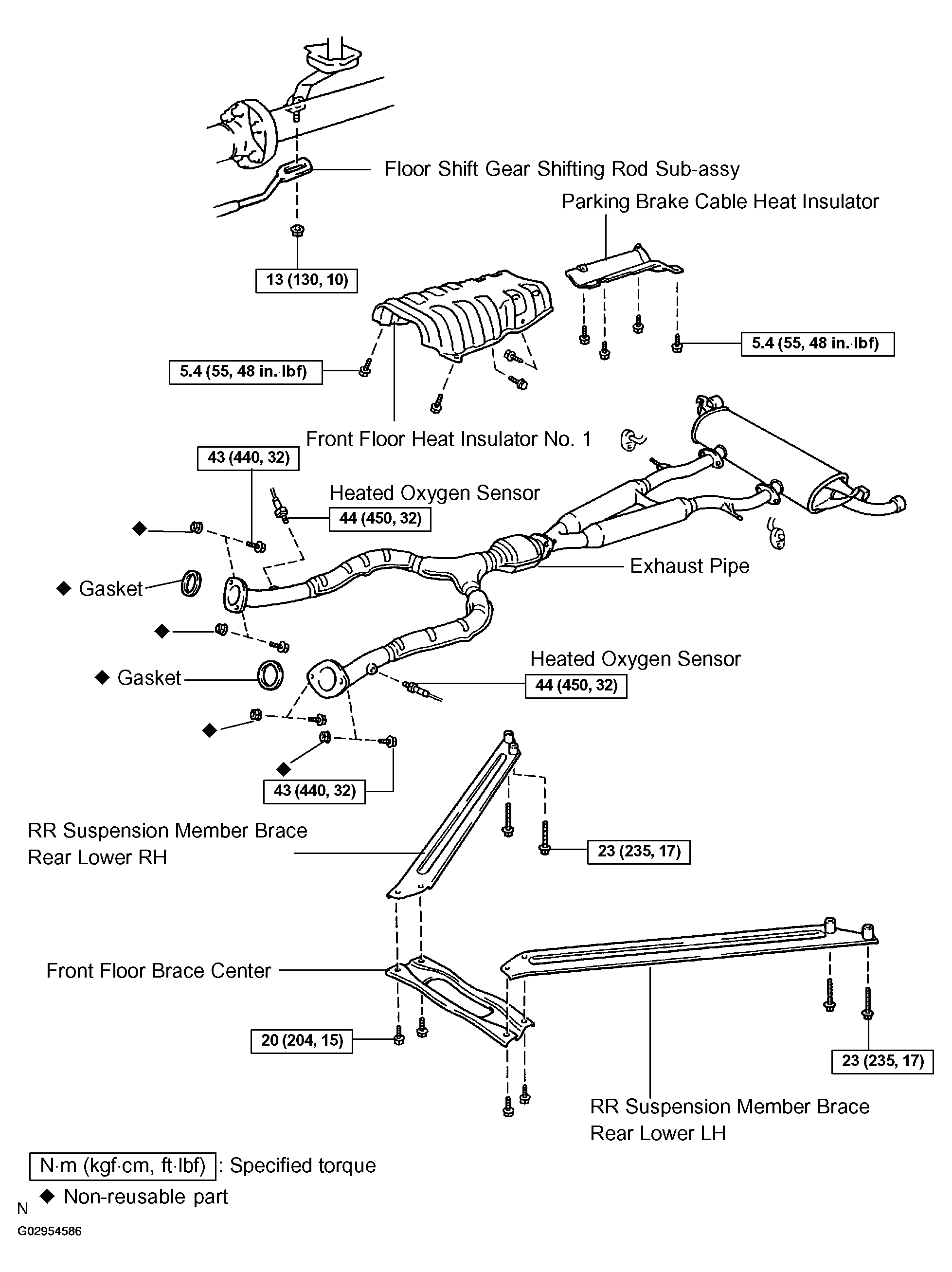

Fig 1: Identifying Floor Shift Assy Components (1 Of 3)
G02954586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

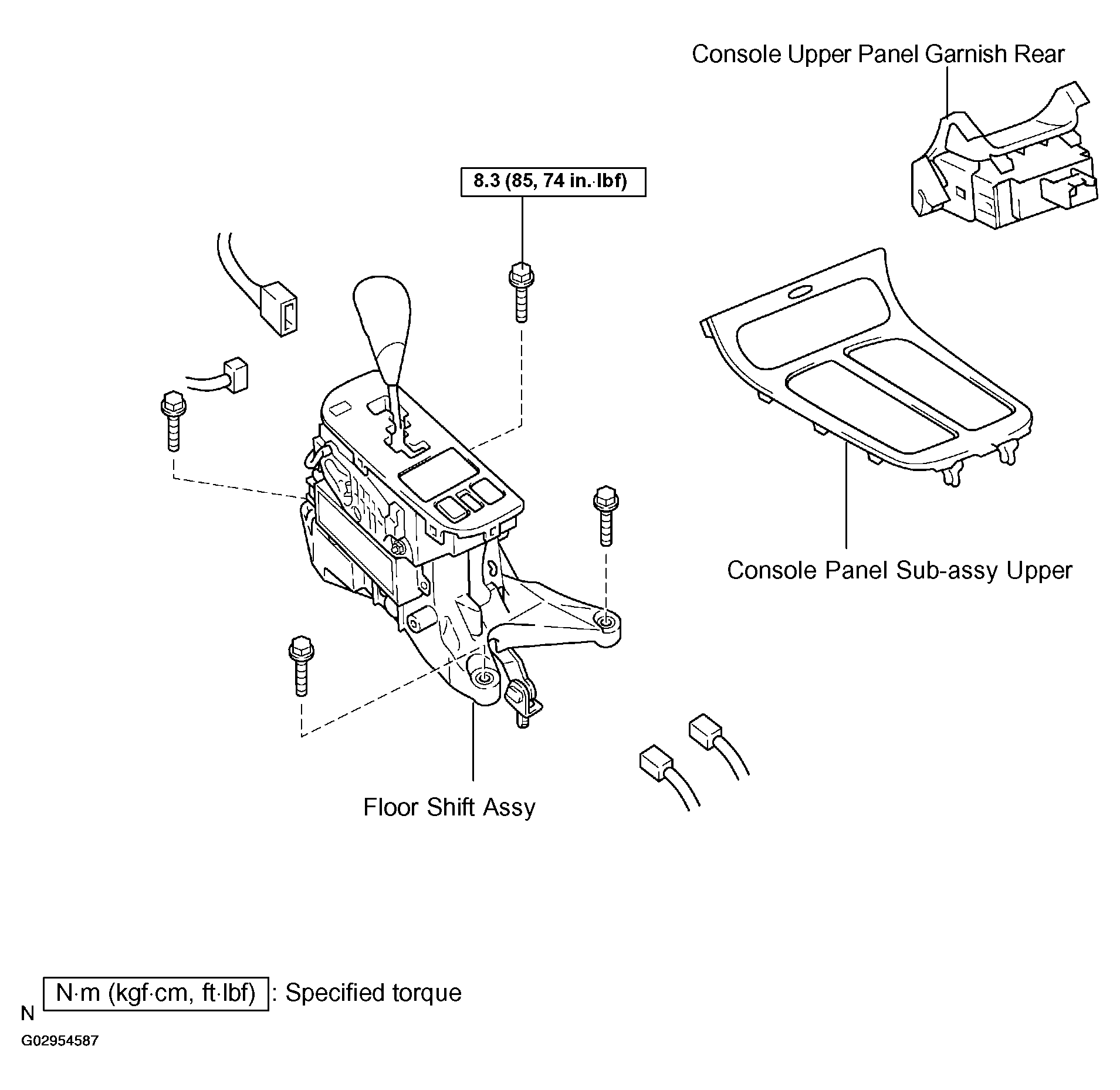

Fig 2: Identifying Floor Shift Assy Components (2 Of 3)
G02954587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

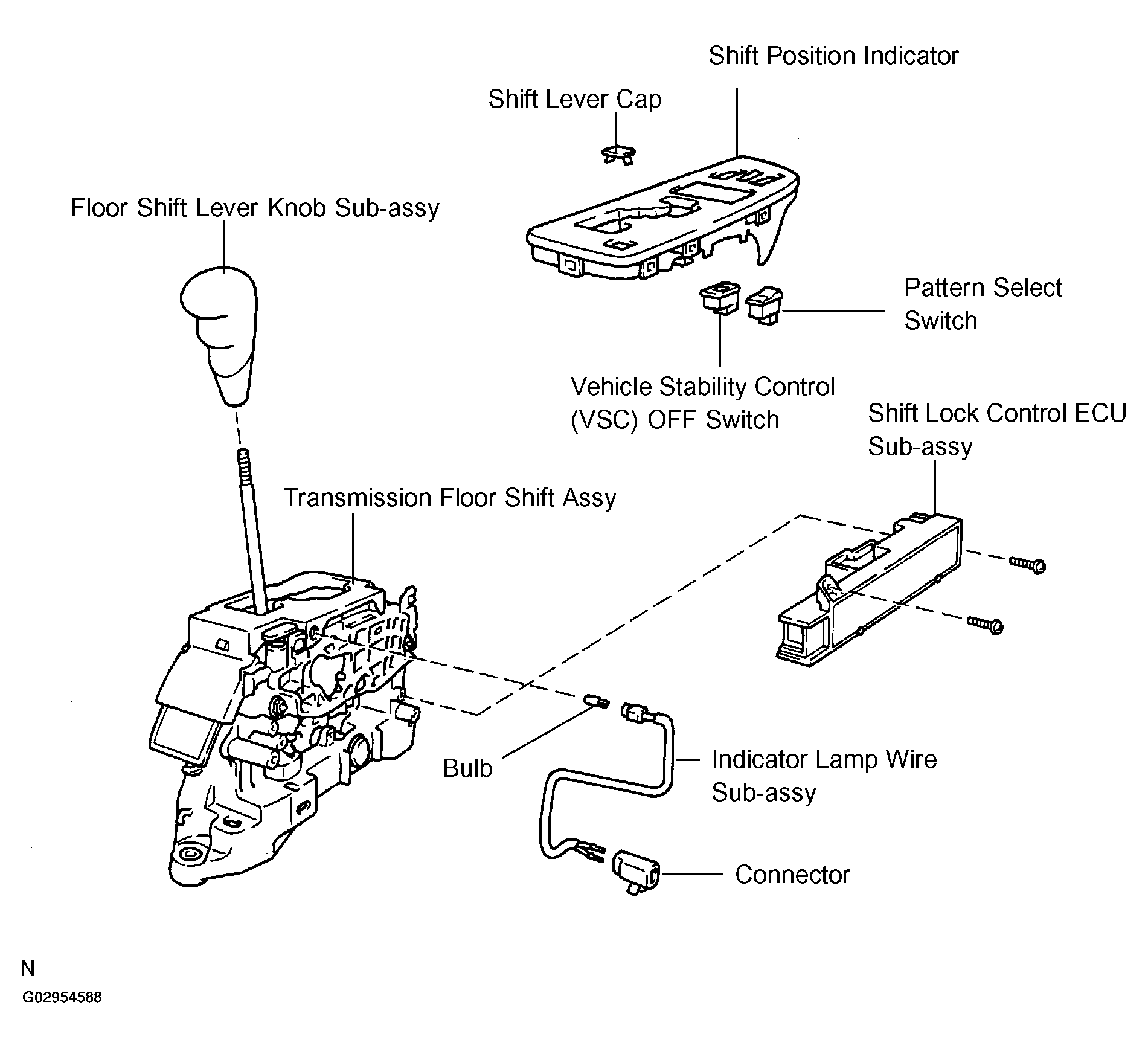

Fig 3: Identifying Floor Shift Assy Components (3 Of 3)
G02954588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
