Shift Lock System: Location

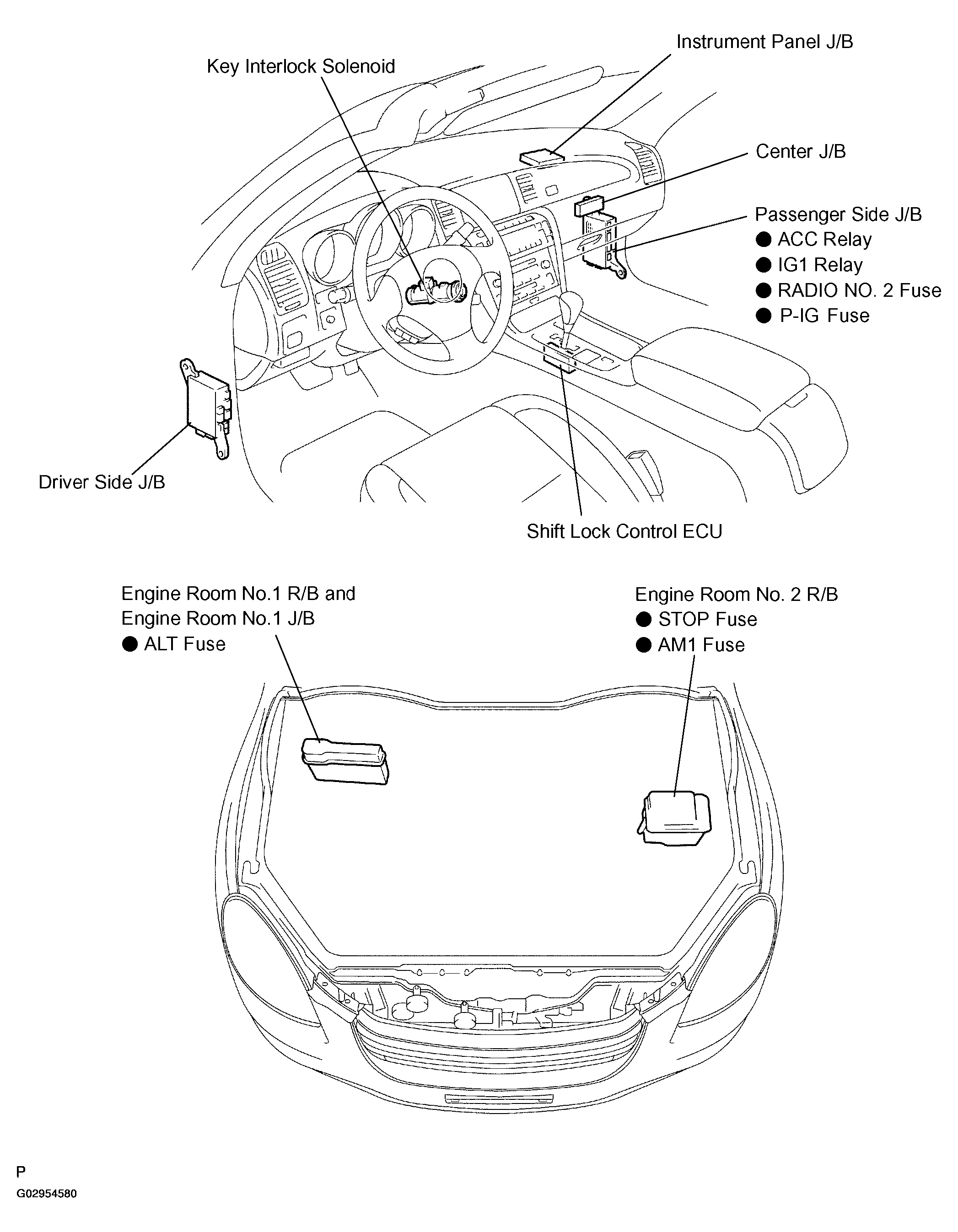

Fig 1: Identifying Location Of Shift Lock System Components

G02954580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
