Front Seat Assembly: Components

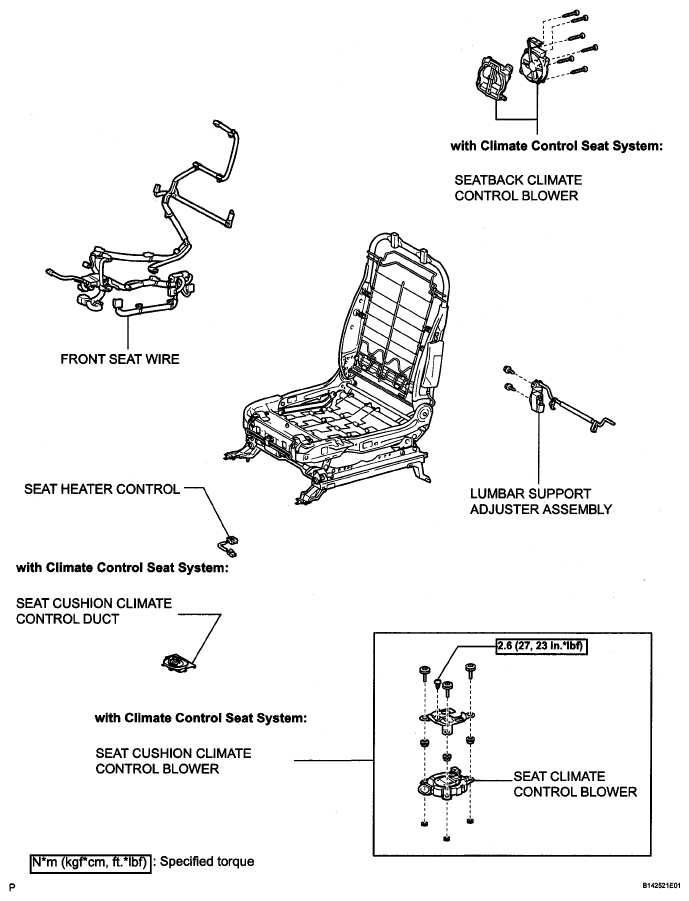

Fig 1: Front Seat Cushion Heater Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

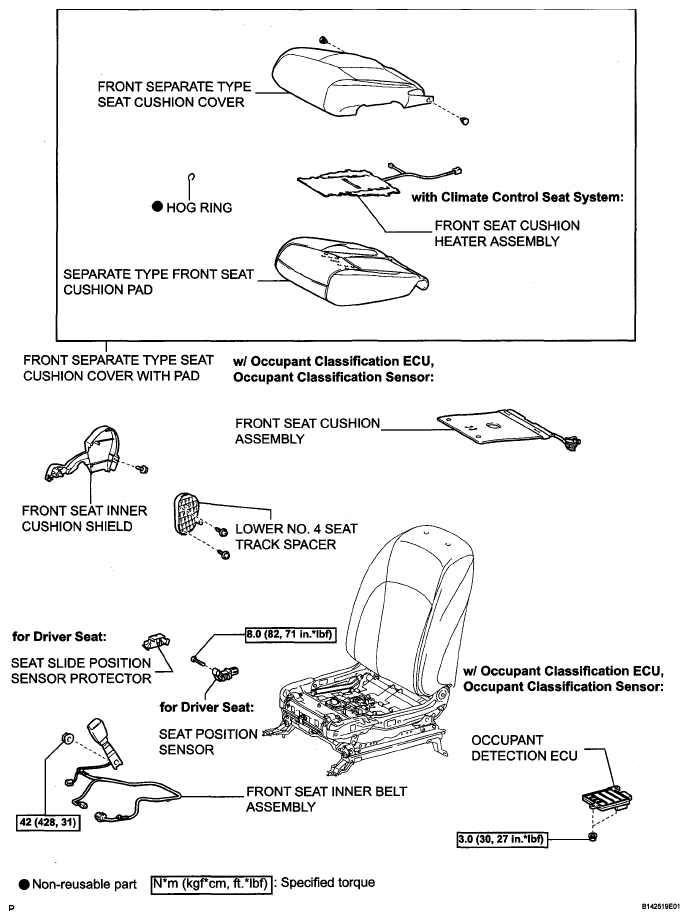

Fig 2: Identifying Front Seat Assembly Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

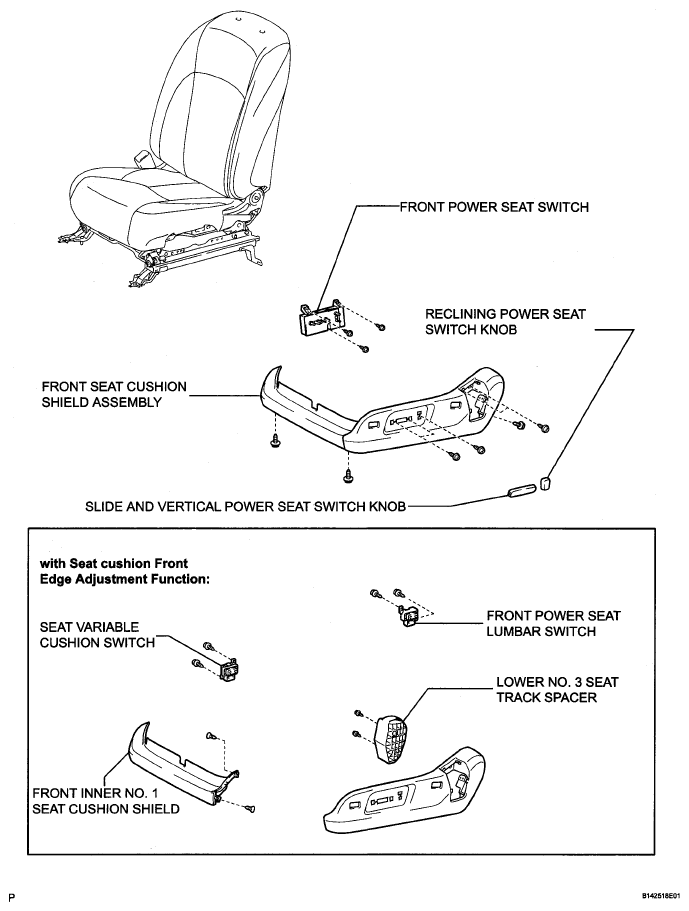

Fig 3: Front Seat Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

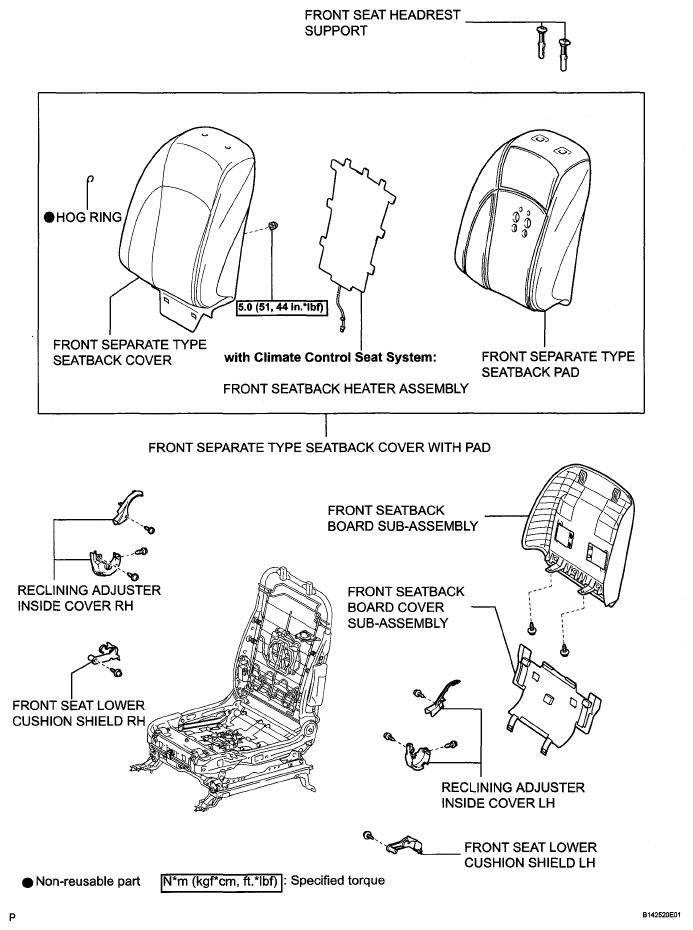

Fig 4: Front Seat Assembly Replacement Components With Torque Specifications (4 Of 5)

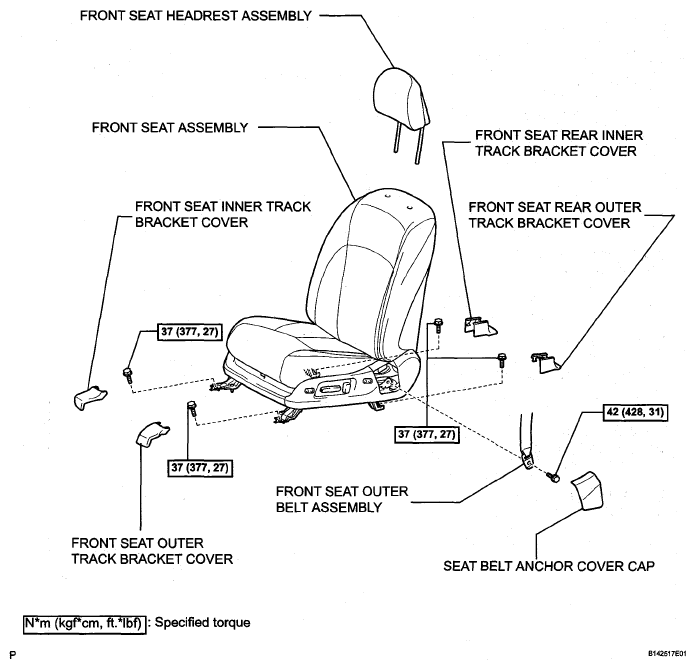

Fig 5: Front Seat Assembly Replacement Components With Torque Specifications (5 Of 5)
