Rear Fog Light: Notes

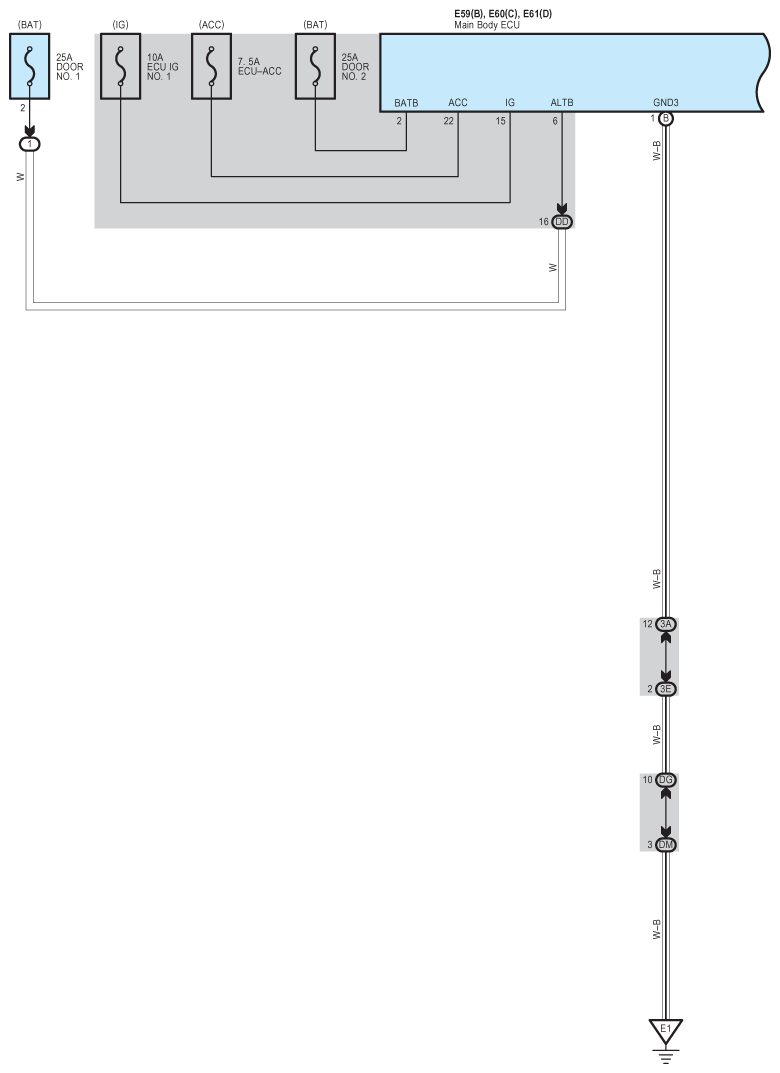

Fig 1: Rear Fog Light System Wiring Diagram (1 Of 4)
G08916806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

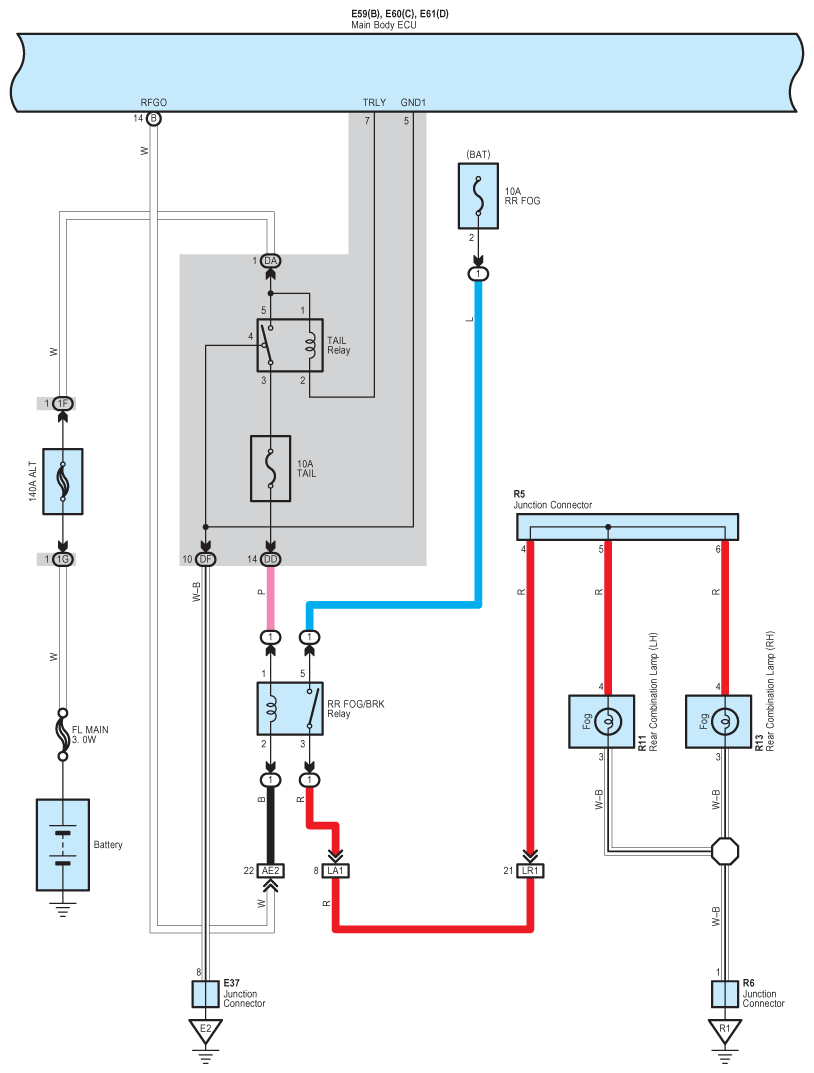

Fig 2: Rear Fog Light System Wiring Diagram (2 Of 4)
G08916807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

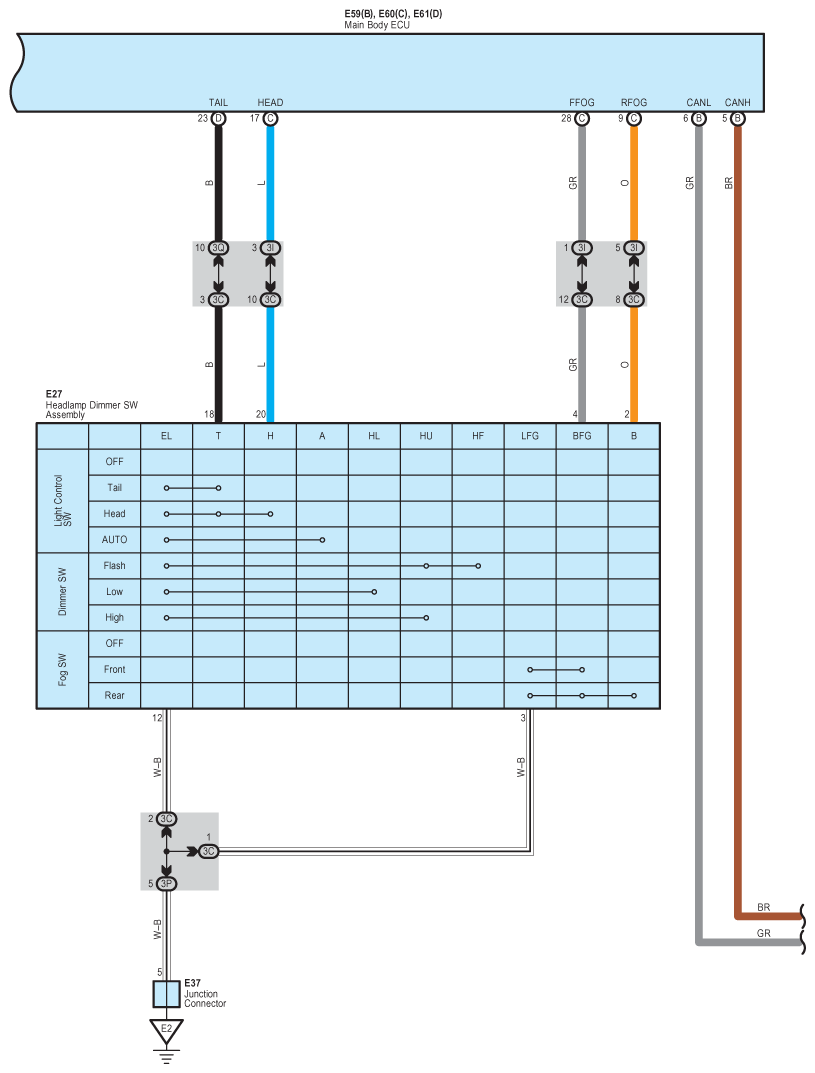

Fig 3: Rear Fog Light System Wiring Diagram (3 Of 4)
G08916808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

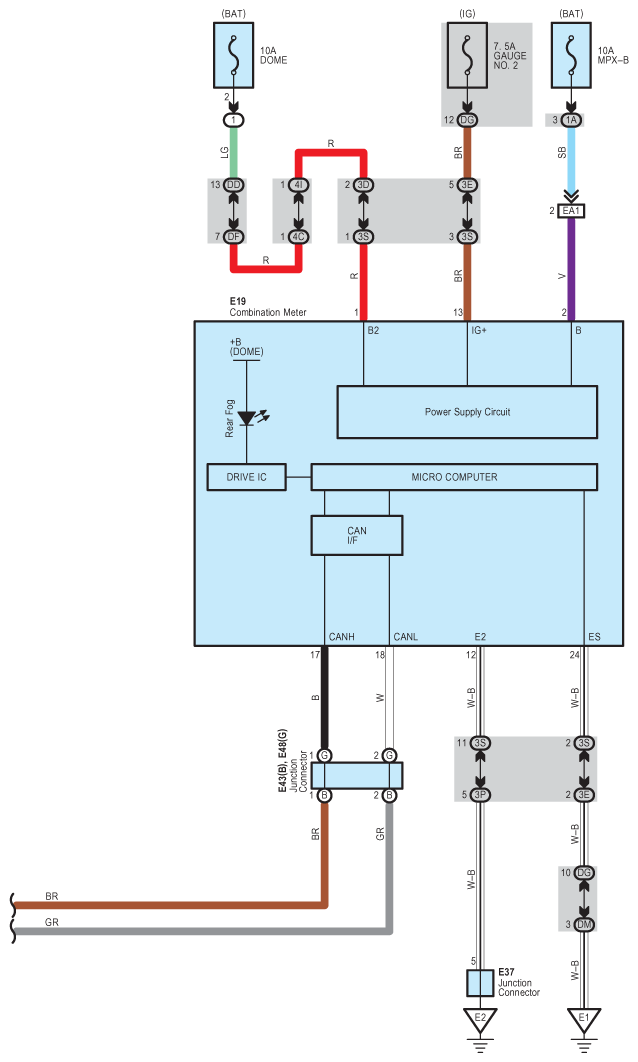

Fig 4: Rear Fog Light System Wiring Diagram (4 Of 4)
G08916809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
