Sliding Roof: Notes

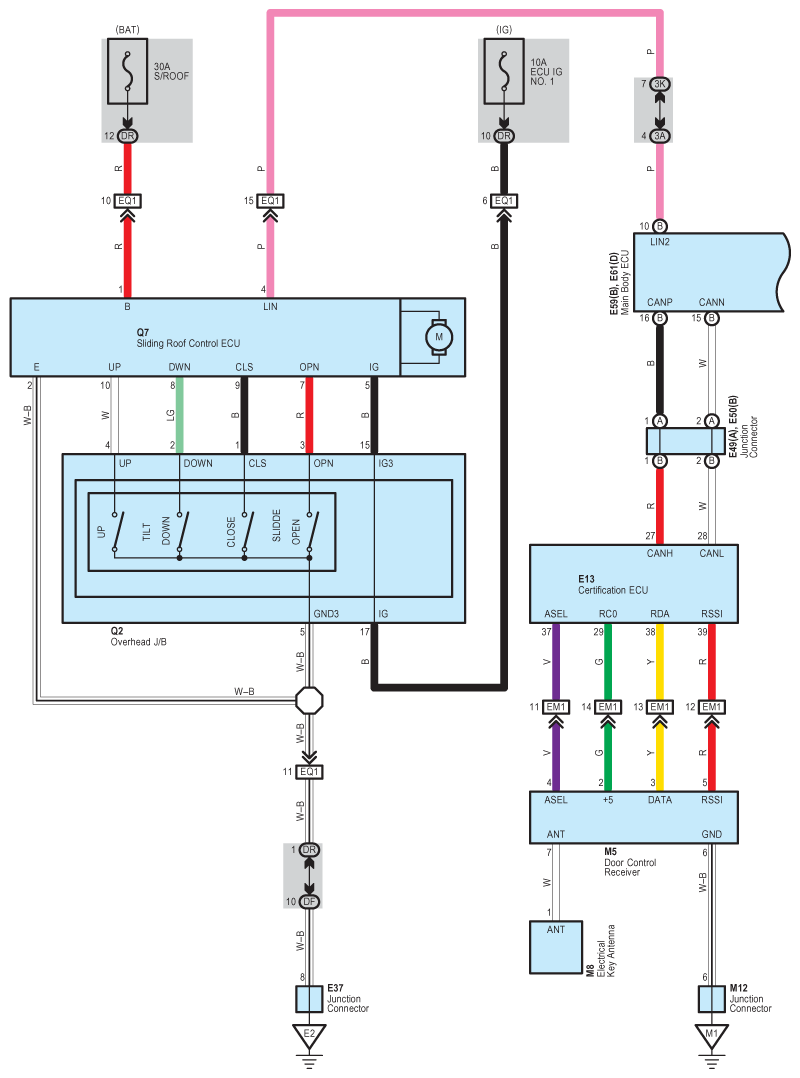

Fig 1: Sliding Roof System Wiring Diagram (1 Of 2)
G08916905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof System Wiring Diagram (2 Of 2)
G08916906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
