Shift Solenoid Valve: Components

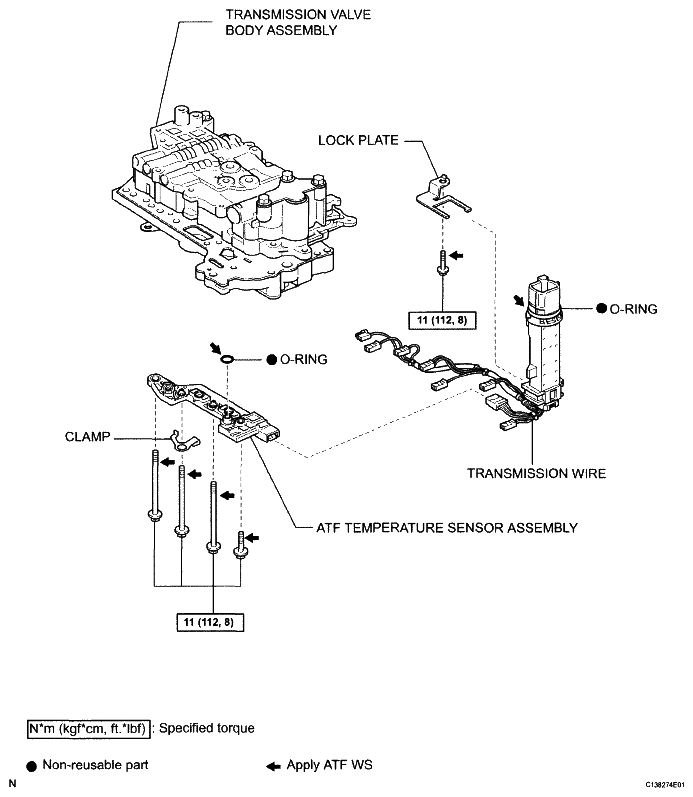

Fig 1: Shift Solenoid Valve Replacement Components With Torque Specifications (1 Of 2)
G04977037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

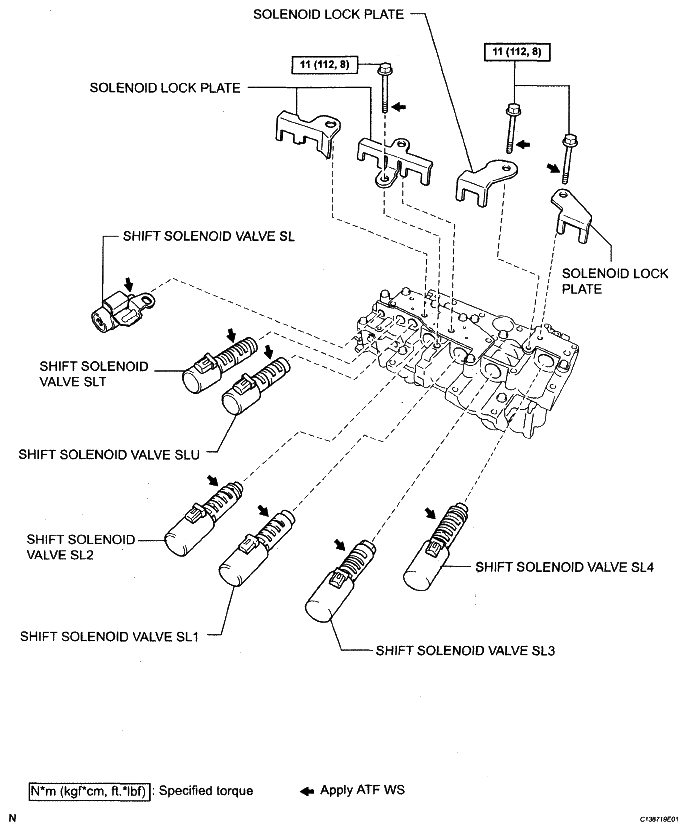

Fig 2: Shift Solenoid Valve Replacement Components With Torque Specifications (2 Of 2)
G04977038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
