Transmission Control Cable Assembly: Components

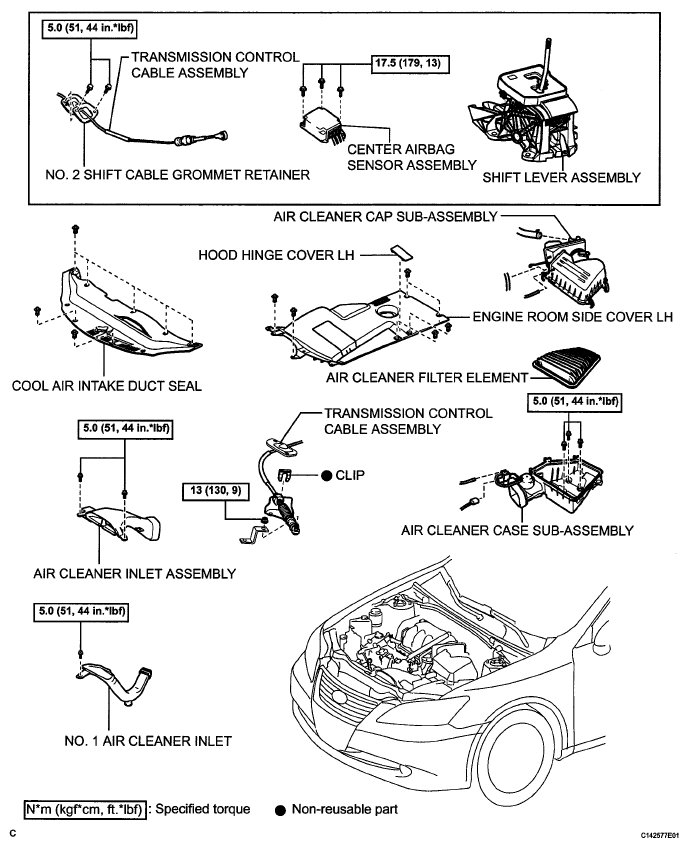

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications
G05249593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
