Back Window Glass: Components

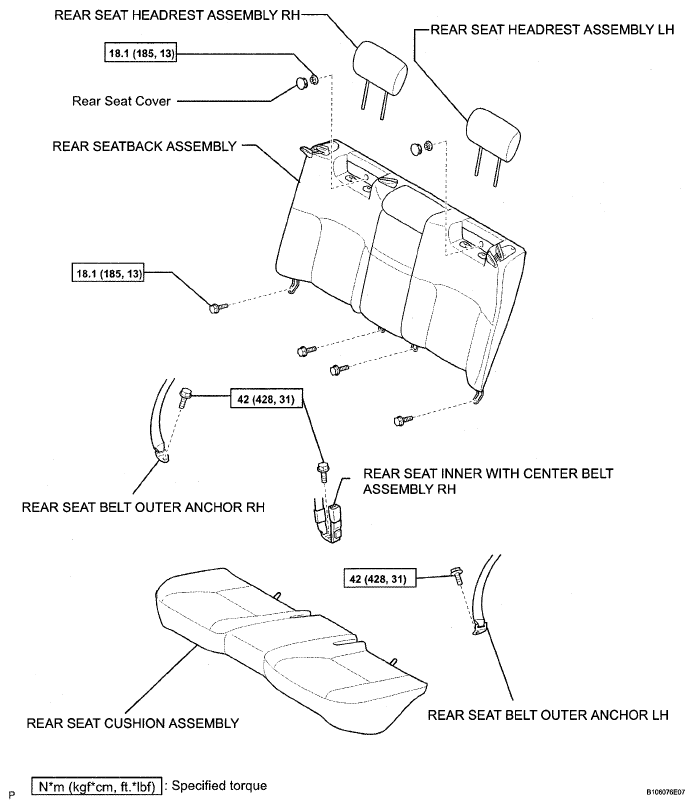

Fig 1: Back Window Glass Replacement Components With Torque Specifications (1 Of 4)
G05300227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

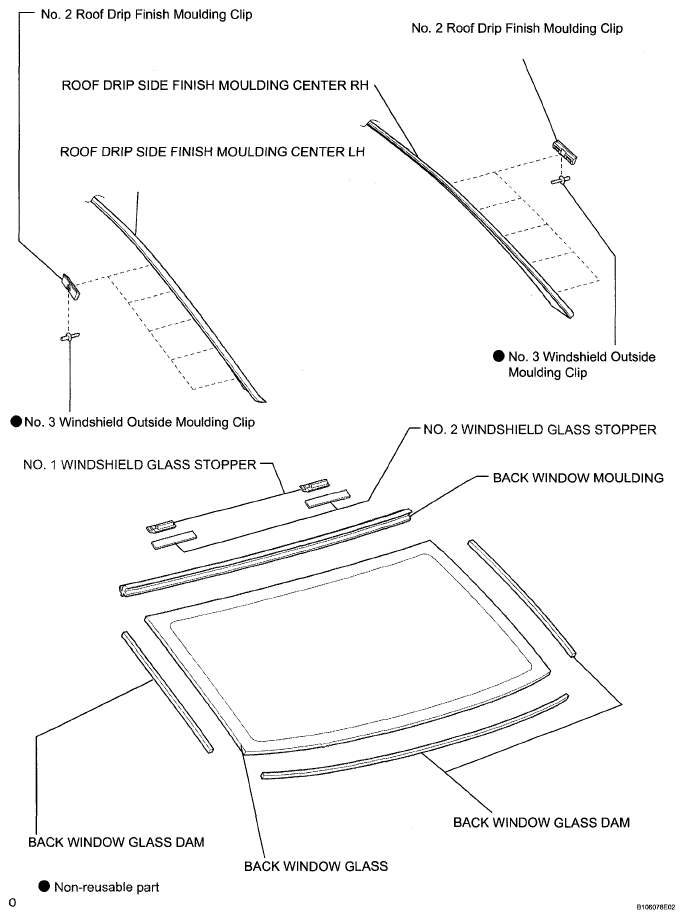

Fig 2: Identifying Back Window Glass Components (2 Of 4)
G05300228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

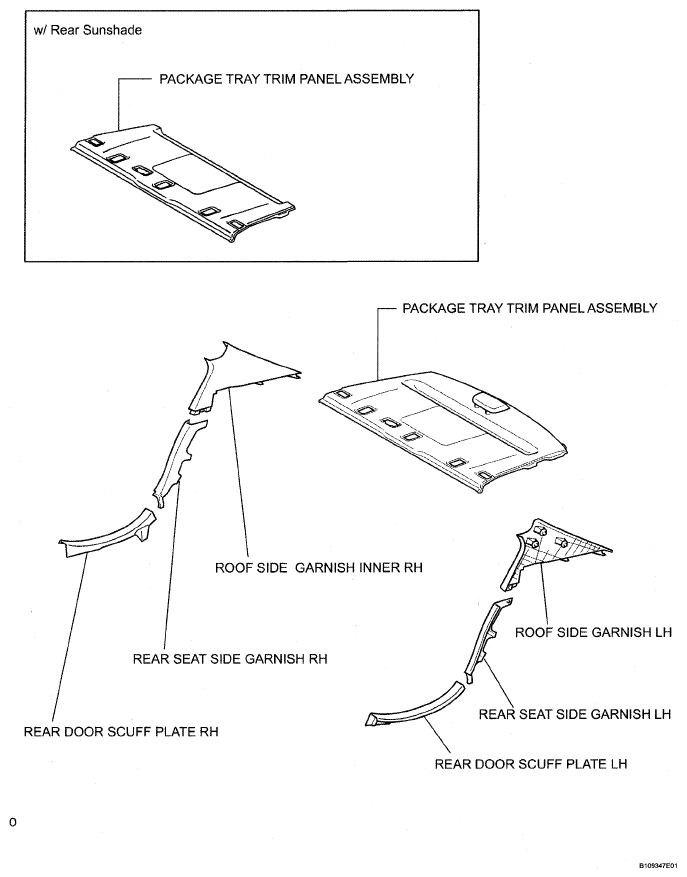

Fig 3: Identifying Back Window Glass Components (3 Of 4)
G05300229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

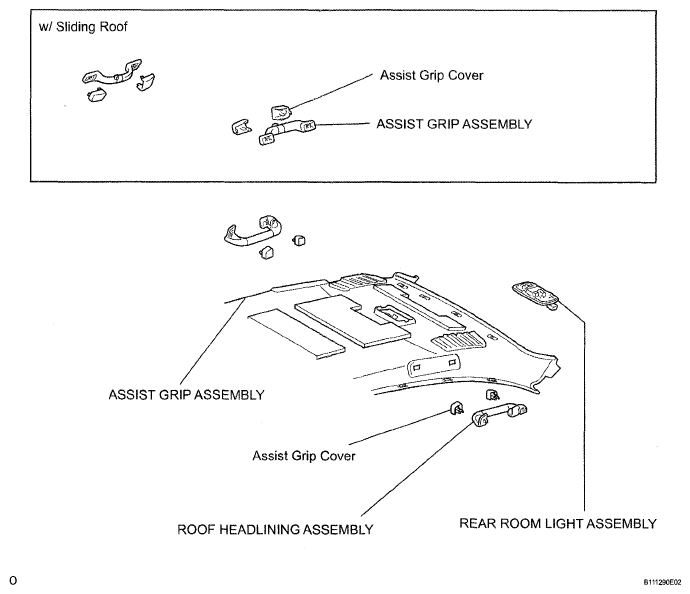

Fig 4: Identifying Back Window Glass Components (4 Of 4)
G05300230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
