Remote Up / Down Function does not Operate: Wiring Diagram

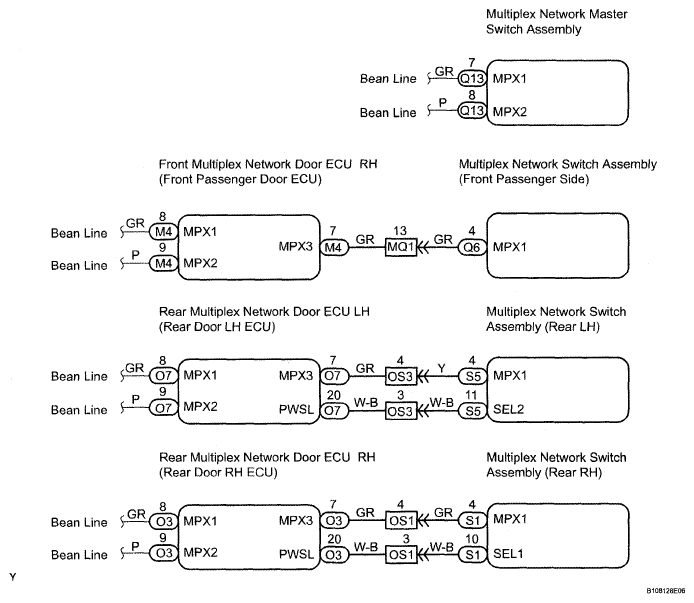

Fig 1: Remote Up / Down Function Does Not Operate - Wiring Diagram (1 Of 2)
G05300159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

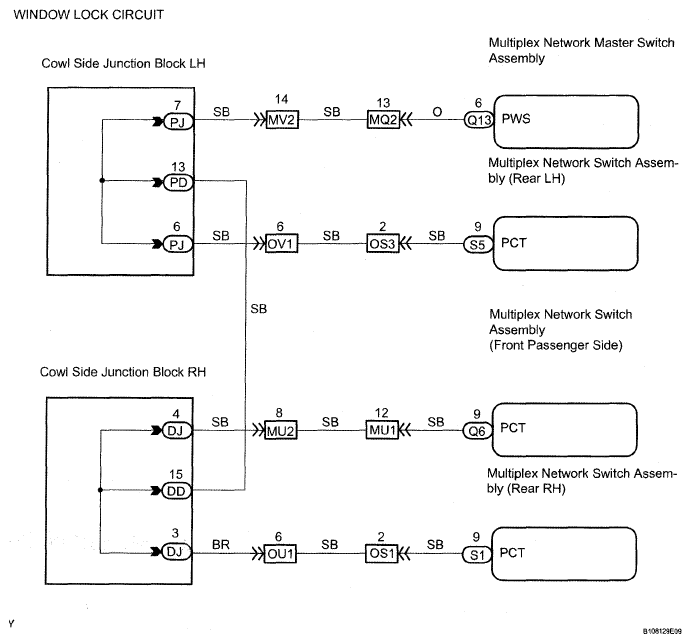

Fig 2: Remote Up / Down Function Does Not Operate - Wiring Diagram (2 Of 2)
G05300160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
