Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Engine Control System (3UZ-FE) >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

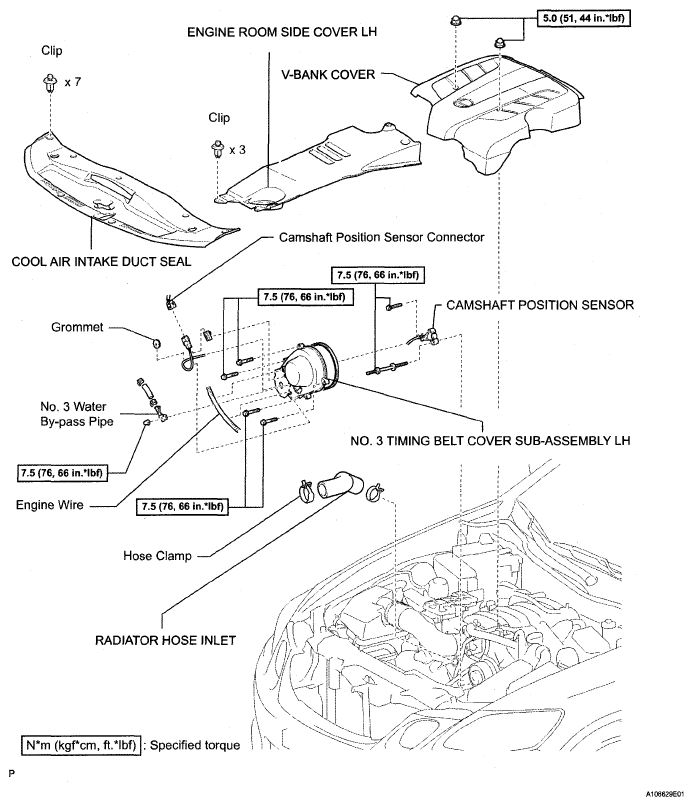

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications

G05285775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
