Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition (3UZ-FE) >> VVT Sensor >> Components

VVT Sensor: Components

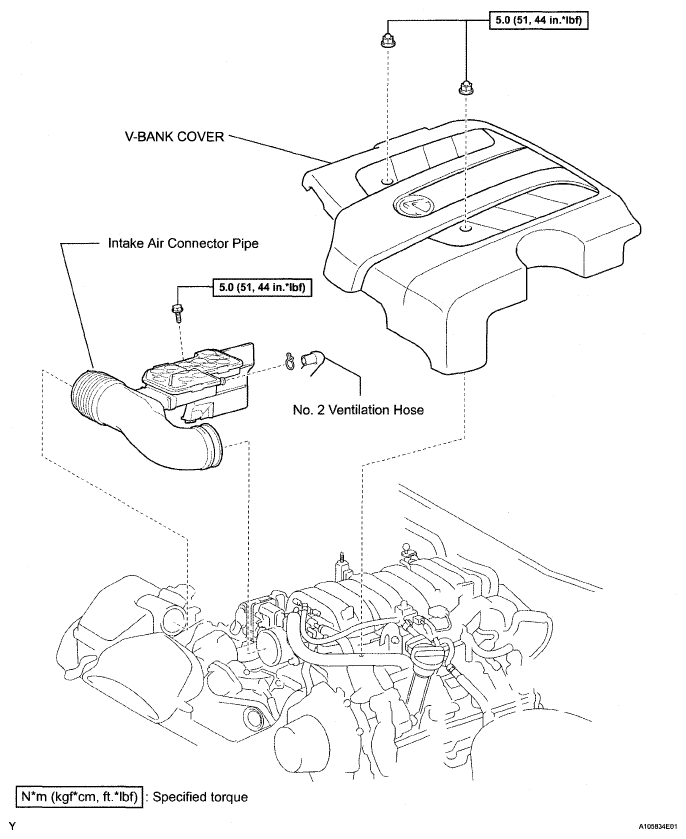

Fig 1: VVT Sensor Replacement Components With Torque Specifications (1 Of 3)
G05287705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

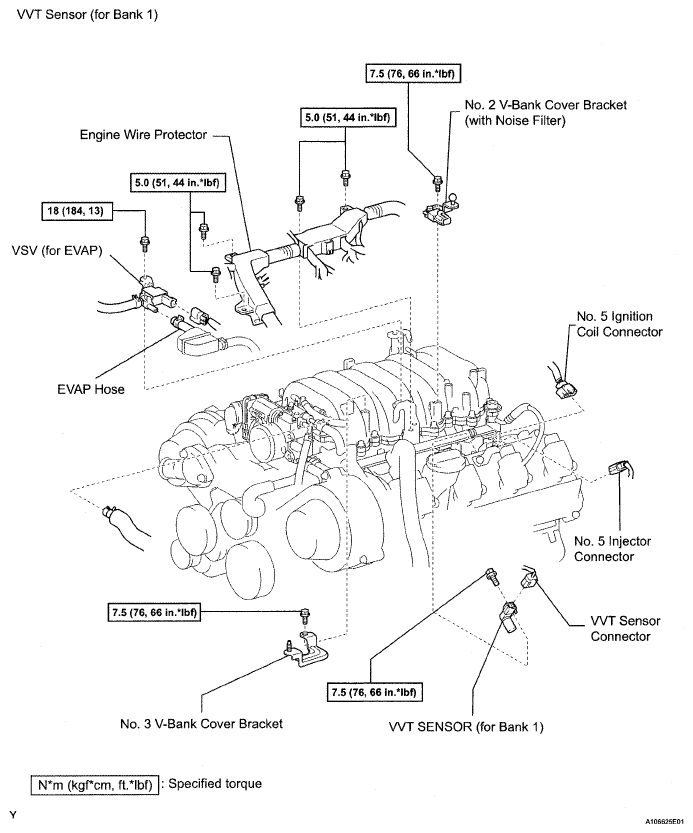

Fig 2: VVT Sensor Replacement Components With Torque Specifications (2 Of 3)
G05287706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

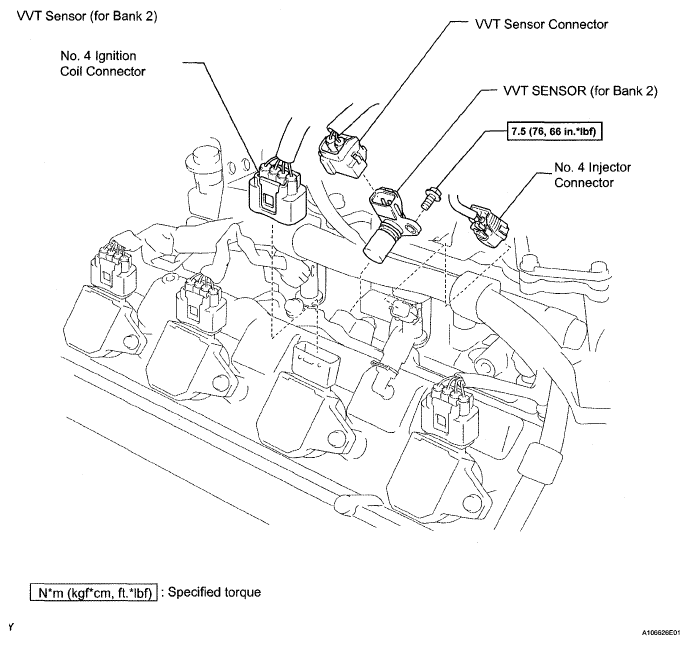

Fig 3: VVT Sensor Replacement Components With Torque Specifications (3 Of 3)
G05287707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
