Floor Shift Assembly: Components

Fig 1: Identifying Floor Shift Assembly Components (1 Of 3)
G05294792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

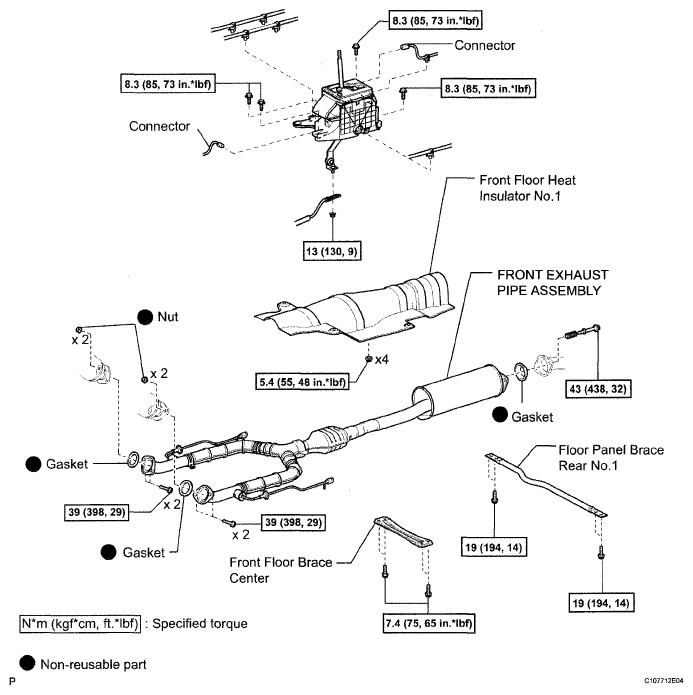

Fig 2: Floor Shift Assembly Replacement Components With Torque Specifications (2 Of 3)
G05295394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

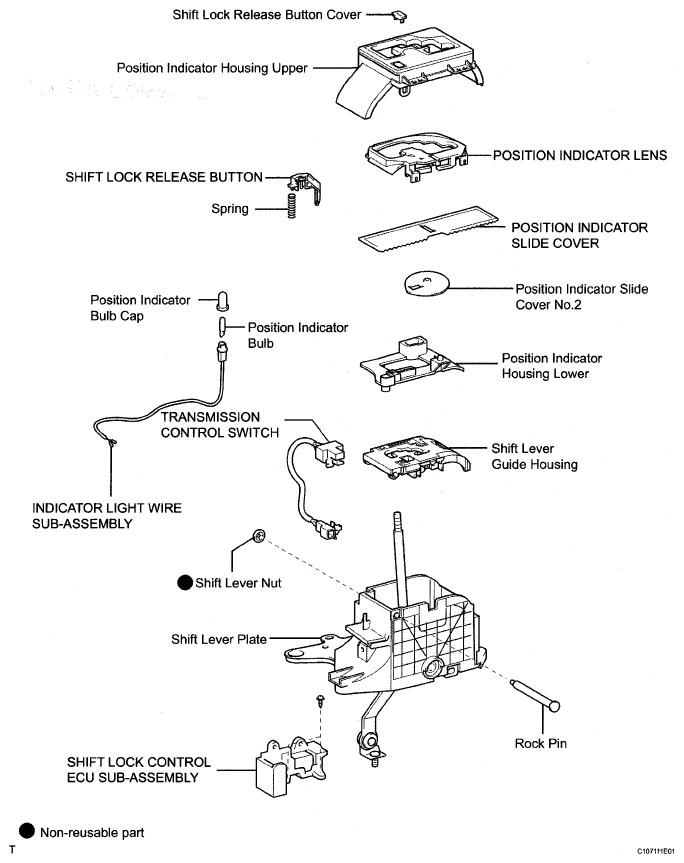

Fig 3: Identifying Floor Shift Assembly Components (3 Of 3)
G05295395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
