Home >> Lexus >> 2007 >> GS 430 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Valve Body >> Components

Valve Body: Components

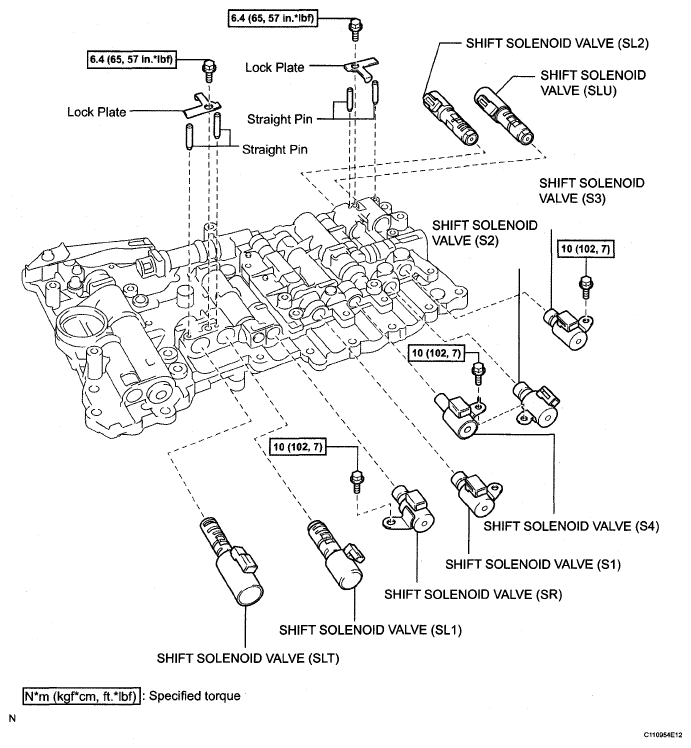

Fig 1: Valve Body Replacement Components With Torque Specifications
G05295765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
