Outer Rear View Mirror: Components

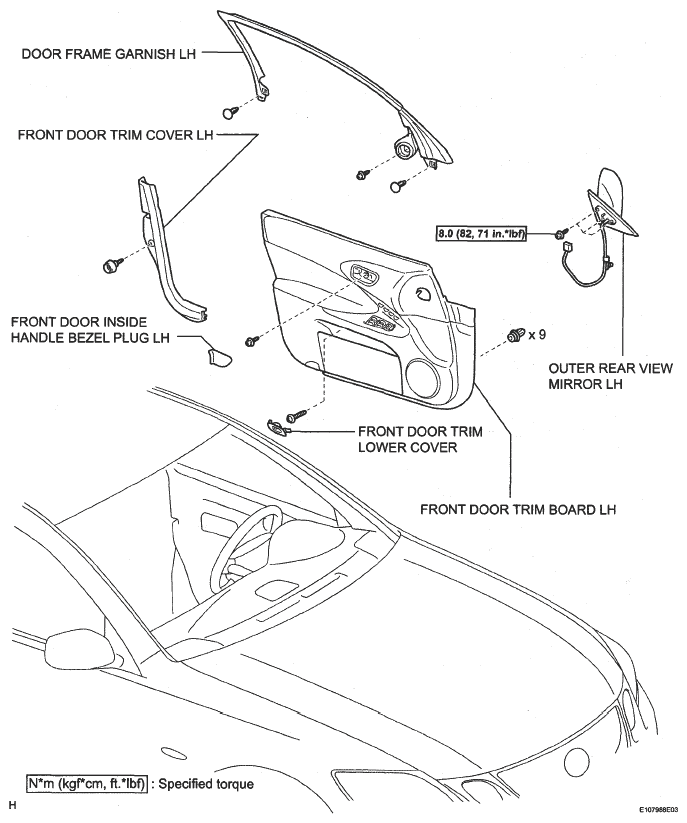

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications (1 Of 2)
G05315119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

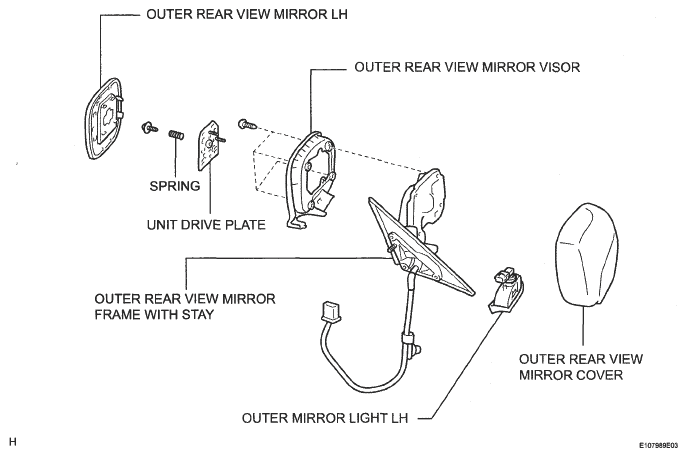

Fig 2: Identifying Outer Rear View Mirror Components (2 Of 2)
G05315120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
