Parts Location

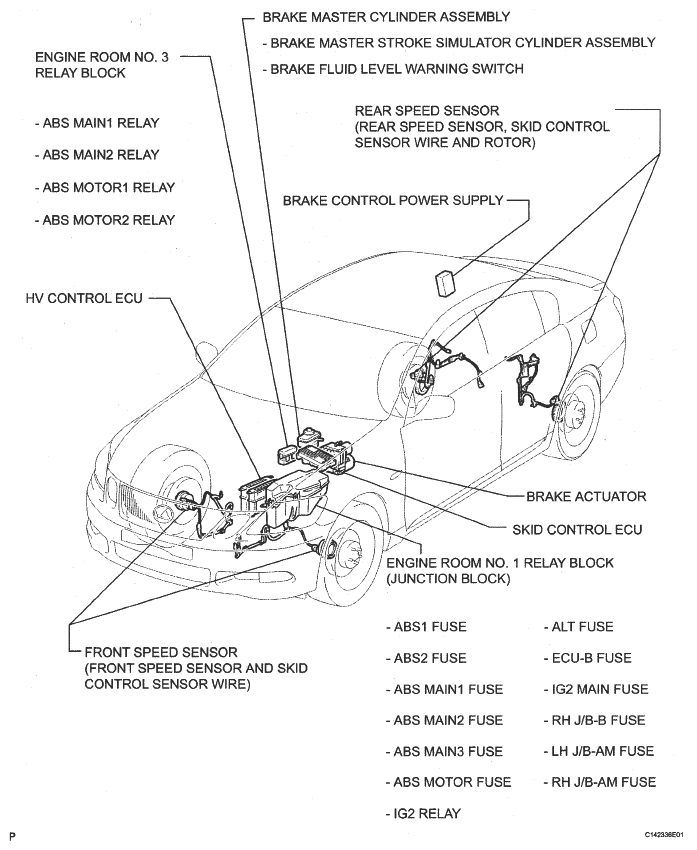

Fig 1: Identifying Electronically Controlled Brake System Parts Location (1 Of 2)
G05305880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

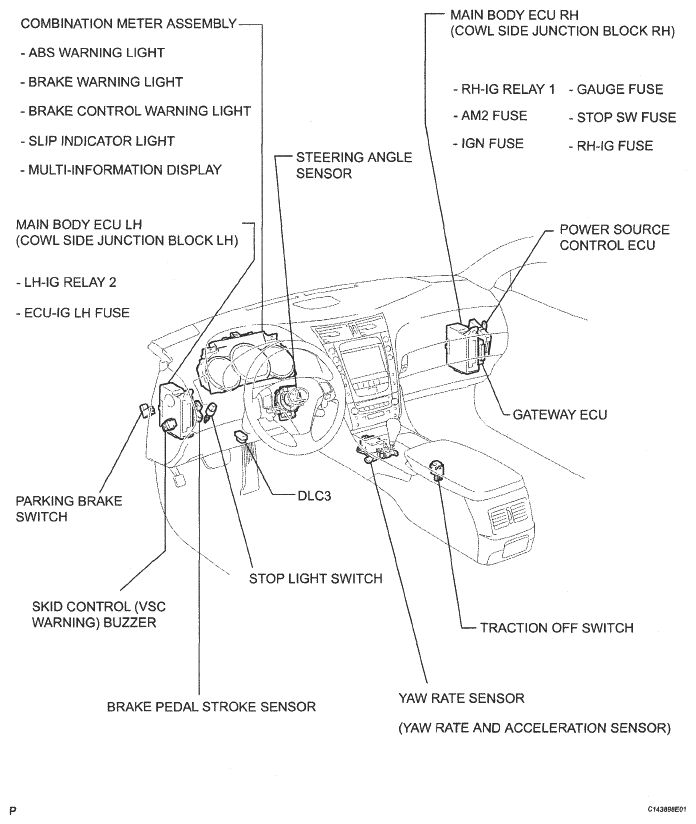

Fig 2: Identifying Electronically Controlled Brake System Parts Location (2 Of 2)
G05305881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
