Sliding Roof: Notes

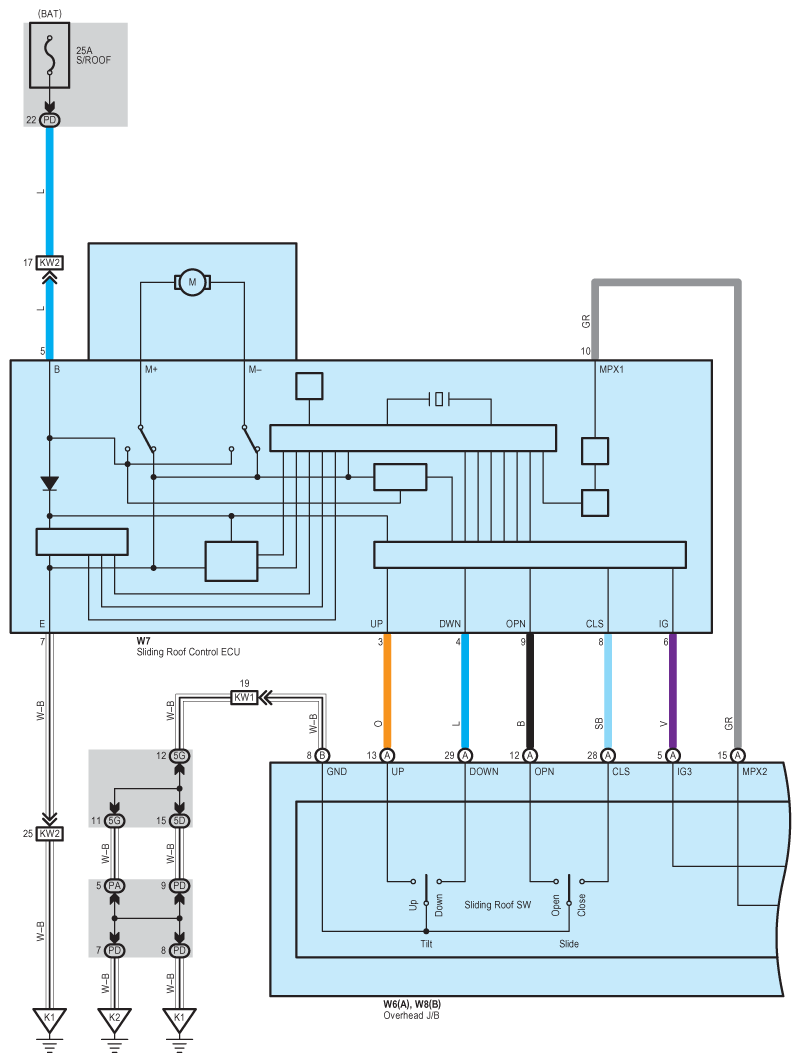

Fig 1: Sliding Roof Wiring Diagram (1 Of 4)
G08919657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

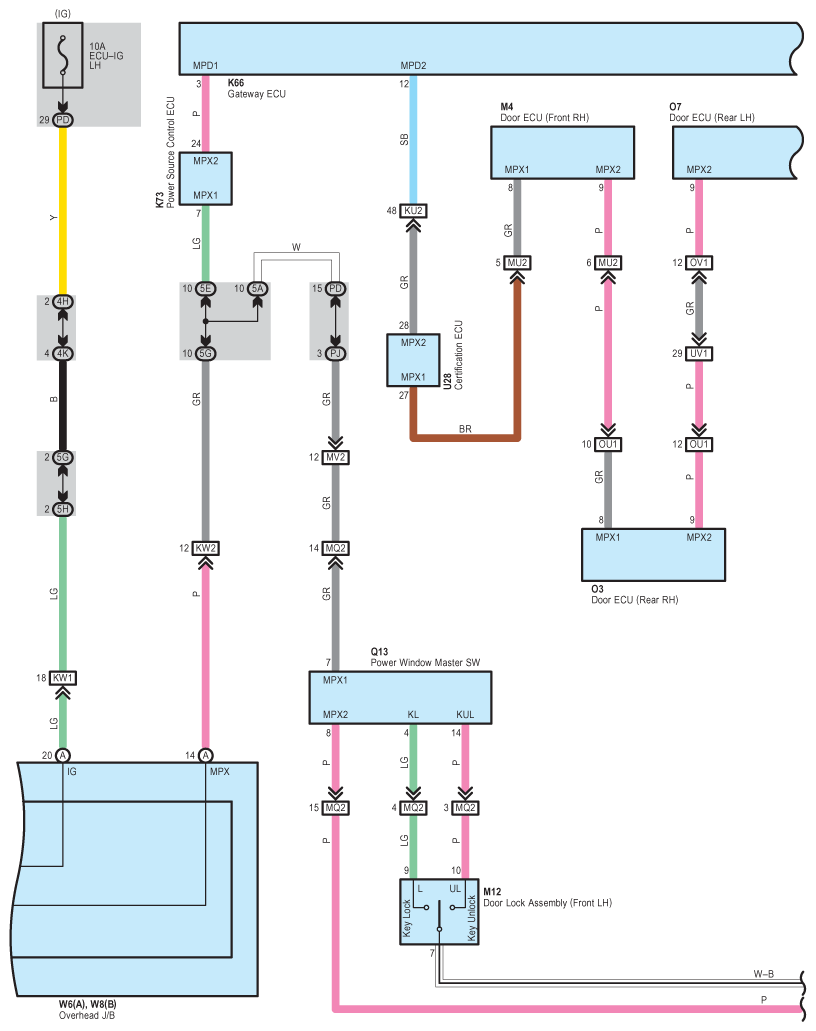

Fig 2: Sliding Roof Wiring Diagram (2 Of 4)
G08919658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

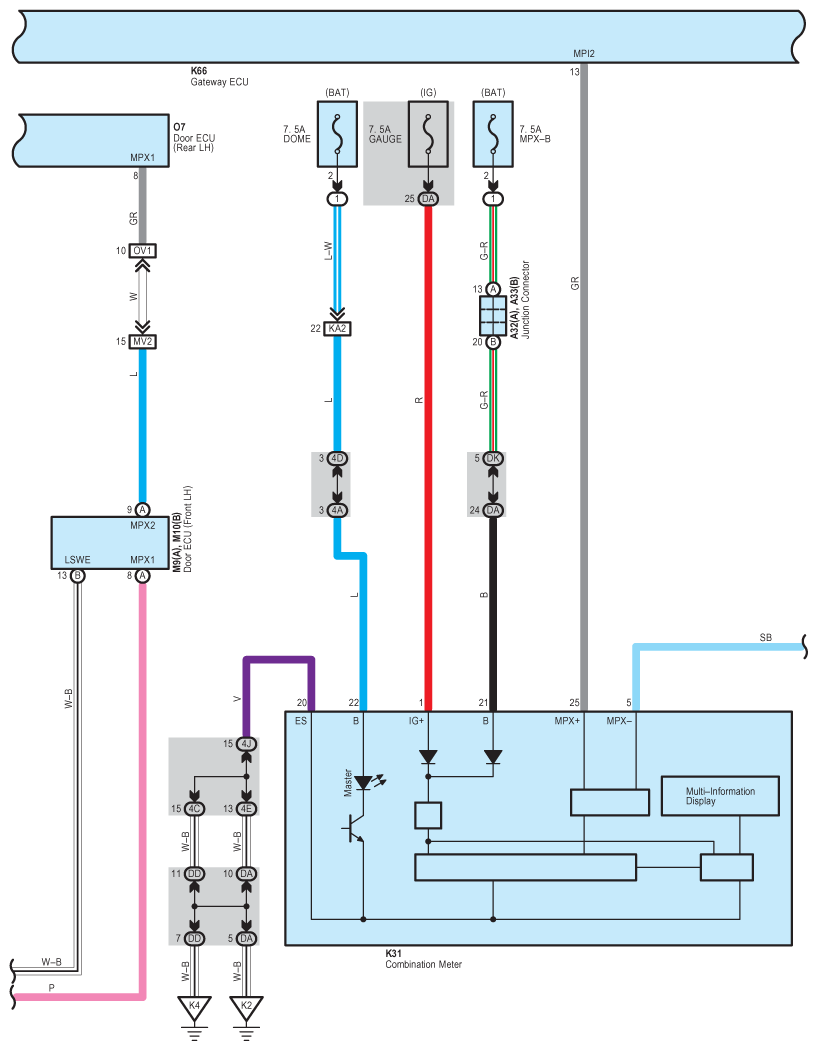

Fig 3: Sliding Roof Wiring Diagram (3 Of 4)
G08919659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

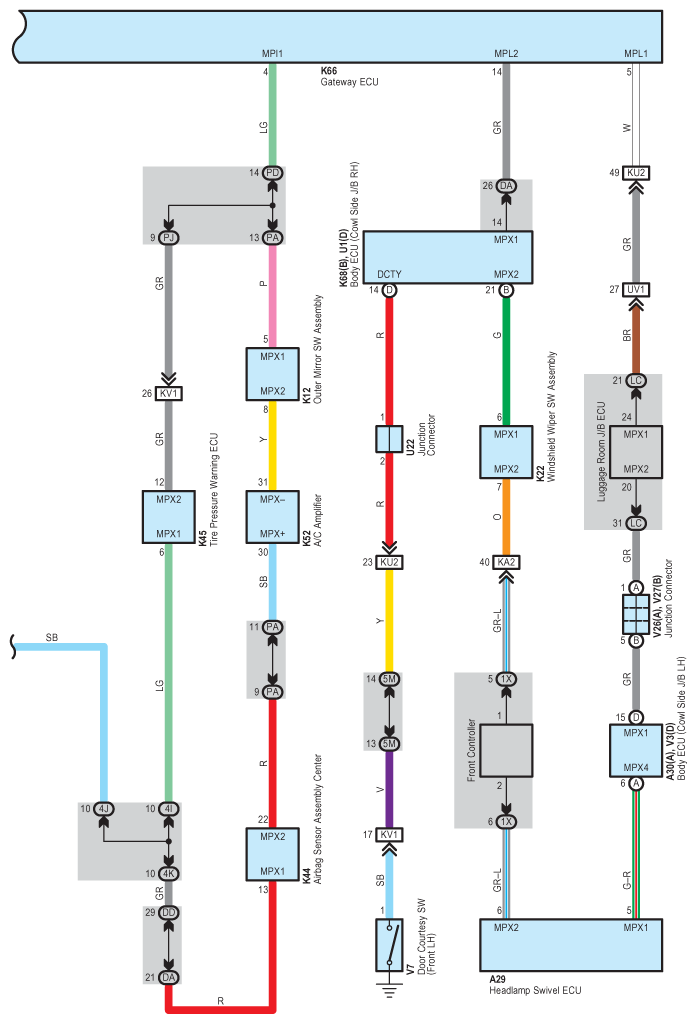

Fig 4: Sliding Roof Wiring Diagram (4 Of 4)
G08919660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
