Fuel Pressure Pulsation Damper: Components

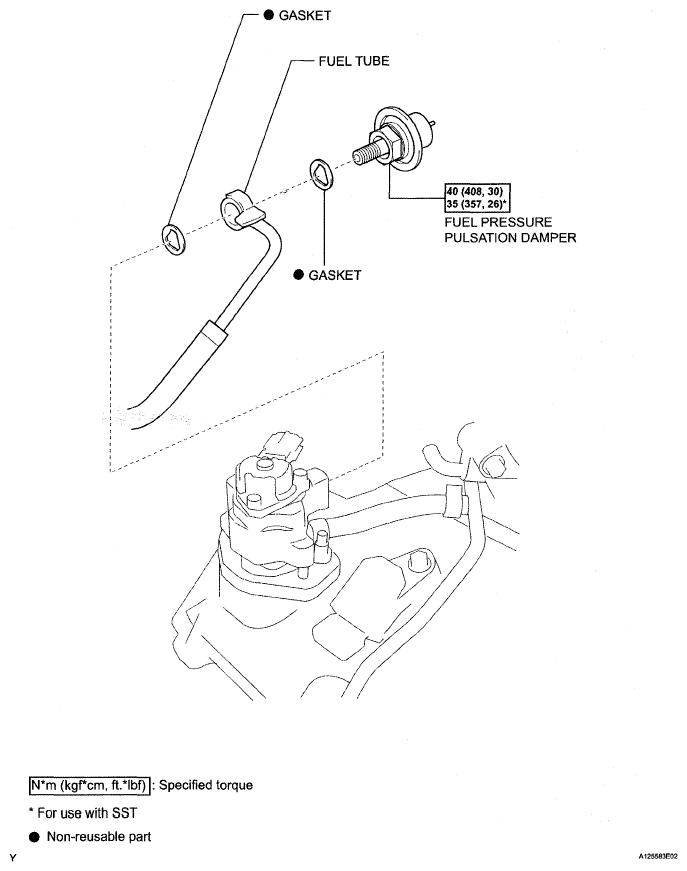

Fig 1: Identifying Fuel Pressure Pulsation Damper Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Fuel Pressure Pulsation Damper Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Fuel Pressure Pulsation Damper Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
