Fuel Pressure Sensor: Components

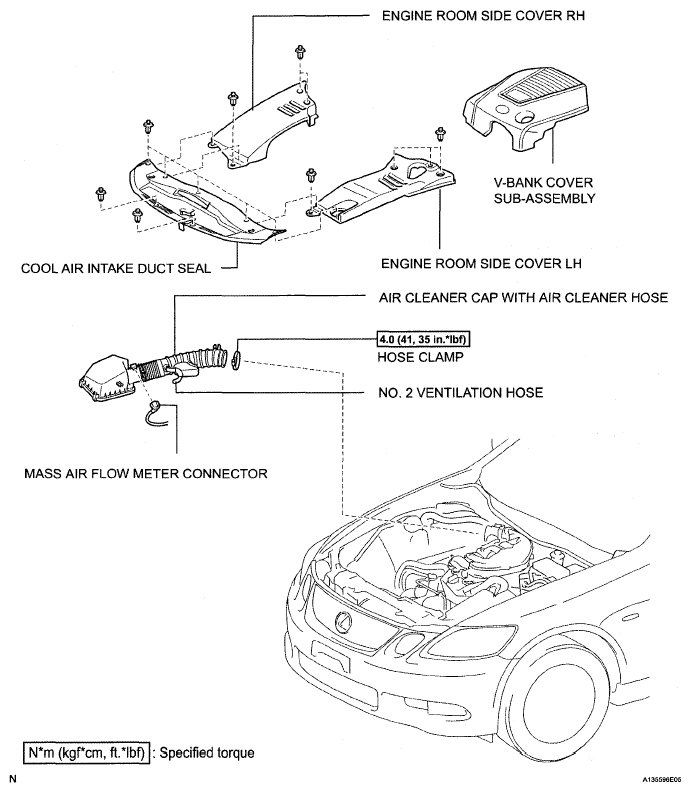

Fig 1: Fuel Pressure Sensor Replacement Components With Torque Specifications (1 Of 4)
G05303200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Pressure Sensor Replacement Components With Torque Specifications (2 Of 4)
G05303201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

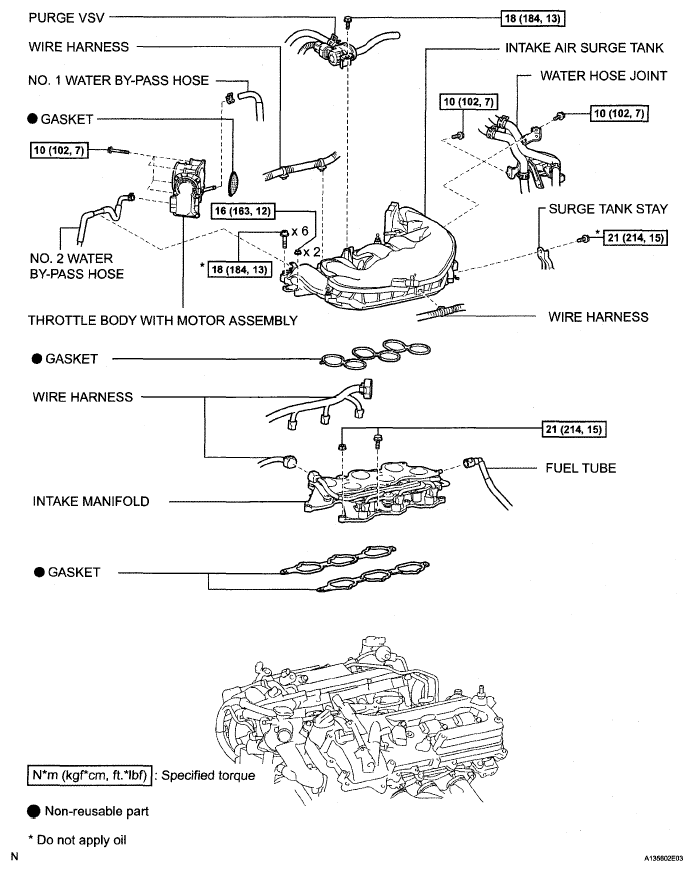

Fig 3: Fuel Pressure Sensor Replacement Components With Torque Specifications (3 Of 4)
G05303202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

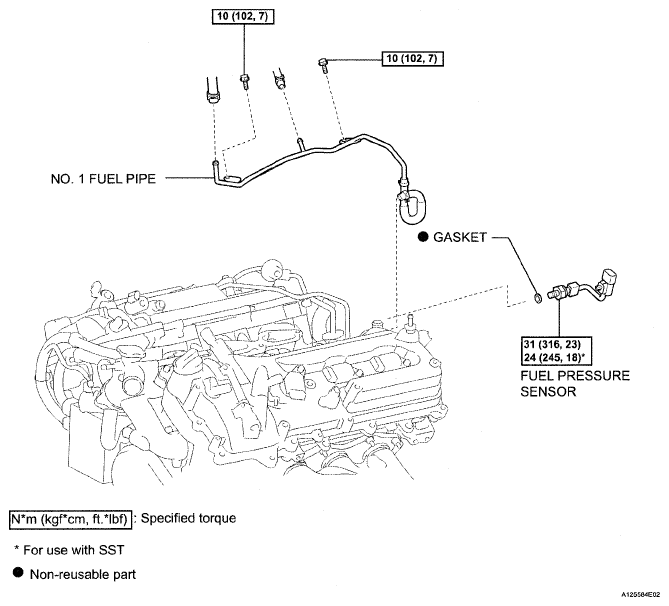

Fig 4: Fuel Pressure Sensor Replacement Components With Torque Specifications (4 Of 4)
G05303203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
