Parts Location

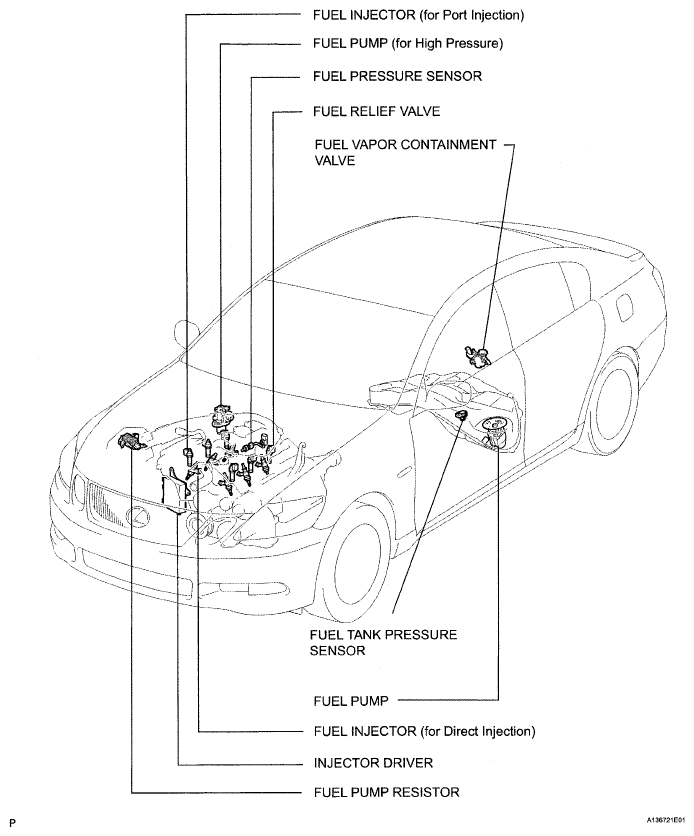

Fig 1: Identifying Fuel System Parts Location (1 Of 2)
G05303090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

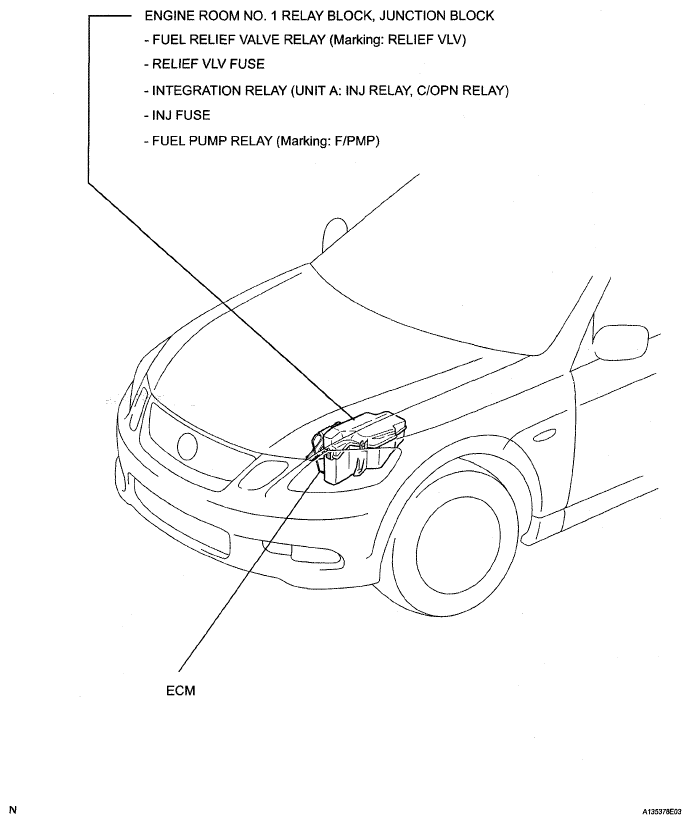

Fig 2: Identifying Fuel System Parts Location (2 Of 2)
G05303091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
