Home >> Lexus >> 2007 >> GS 450h >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> Fuel Tank >> Components

Fuel Tank: Components

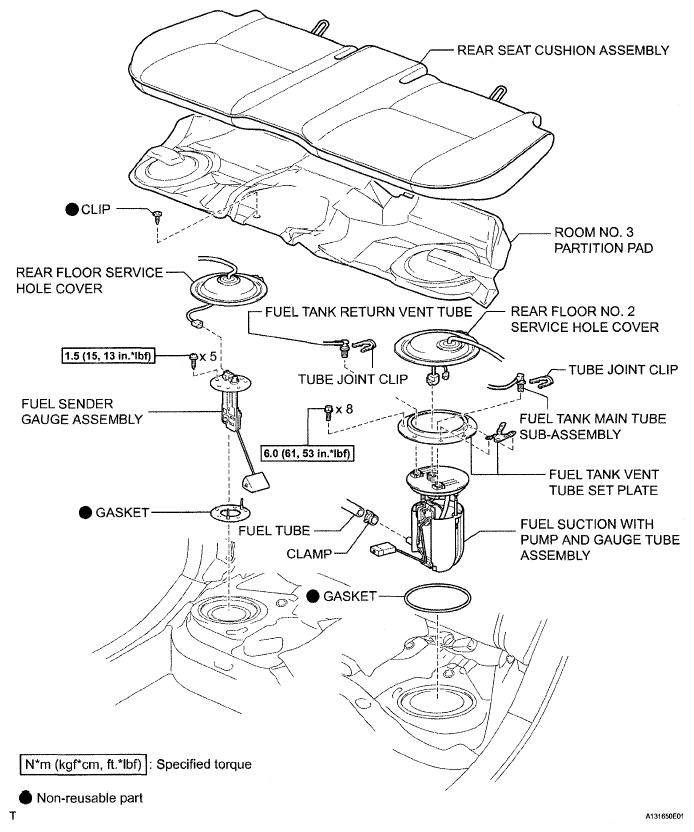

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
G05303276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

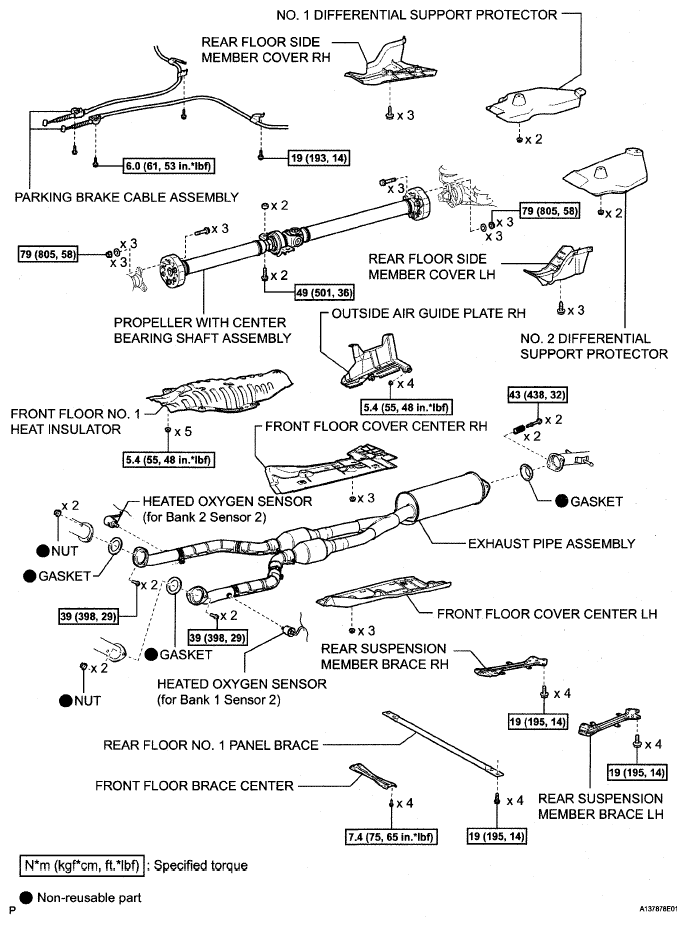

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 3)
G05303277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

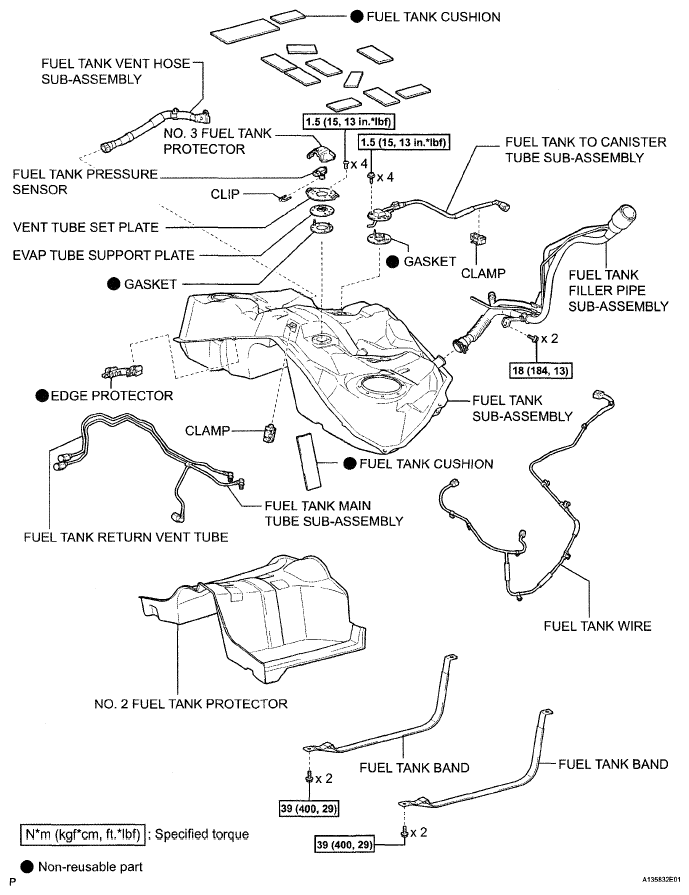

Fig 3: Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
G05303278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
