Home >> Lexus >> 2007 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS >> Back Window Glass >> Components

Back Window Glass: Components

Fig 1: Identifying Back Window Glass Replacement Components
G05266799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

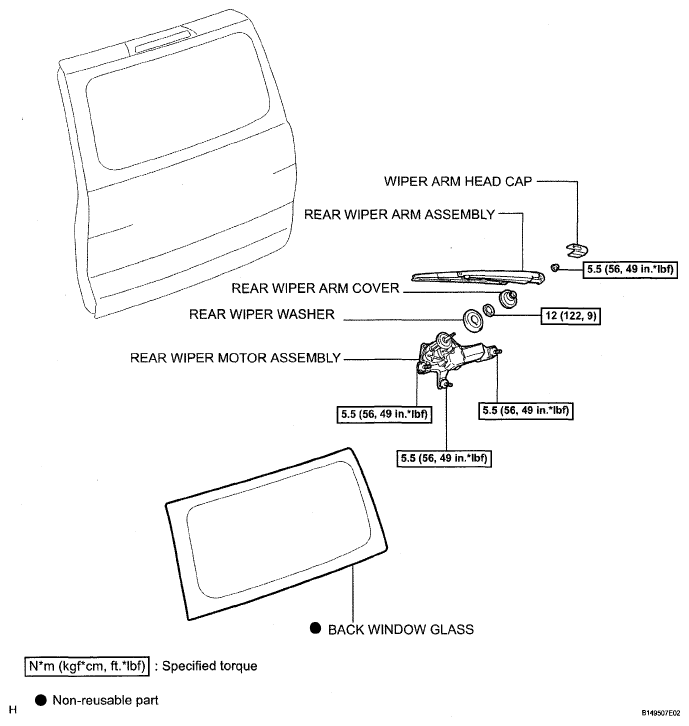

Fig 2: Back Window Glass Replacement Components With Torque Specifications
G05266800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
